Wall hung toilet Nautic 5530

For specific features and design read product information carefully.

Works with our Triomont fixtures

Wall hung toilet Nautic 5530

Without seat, Ceramicplus

  • Works with our Triomont fixtures
  • Ceramicplus: fast & environmentally friendly cleaning
  • Flexible bolt spacing c-c 180/230 mm

Article number: GB1155300R1000
EAN-number: 7391530063669

PRODUCT INFORMATION

Assembling & Care

Intended for installation with our Triomont fixtures. Mounted with bolts directly on the wall. Washers, bushings and nuts (M12) included, but not bolts (included with Triomont fixture). Bolt projection from finished wall must be 60 ± 2 mm. See included installation instructions.

Assembly Instruction

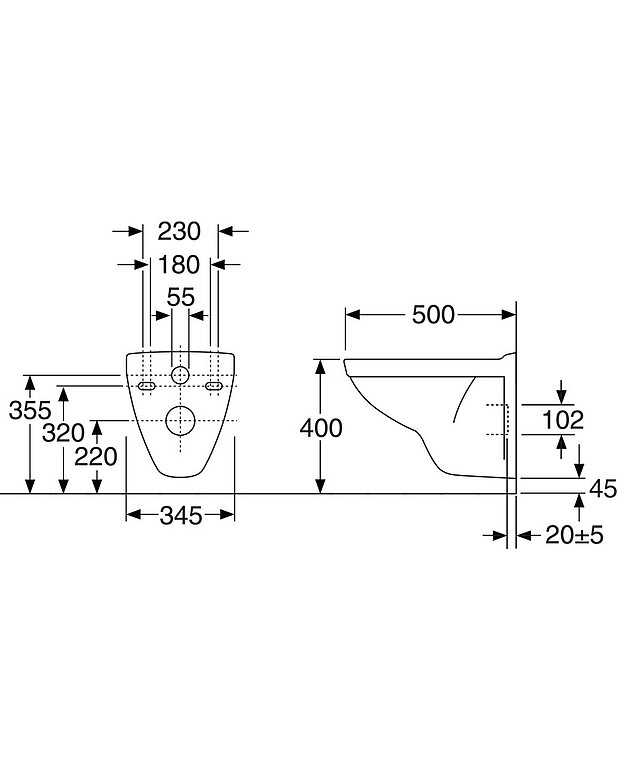

Drawing

Standards & Approvals

  • ce_logo
  • The product follows AMA recommendations, SS-EN 33 dimensioning and SS-EN 997 function
  • Complies with Safe Water installation requirements
  • CE approved

Other info

  • Deep - 520 mm
  • Length - 420 mm
  • Width - 410 mm

Features

  • Made from hygienic, durable and densely sintered sanitary ware
  • Easy-to-clean and minimalist design
  • Glazed under the flush edge for simplified cleaning
  • Works with our Triomont fixtures
  • Recommended flush volume 4,5/3 L
  • Multiple seat options in two different colours, white or black
  • Ceramicplus for quick, eco-friendly cleaning
  • Flexible bolt spacing c-c 180/230 mm
  • Load rated for 400 kg
