Fixture Triomont XT - for toilet with top flush button

Fixture Triomont XT - for toilet with top flush button

  • RSK-nr: |
  • ART-nr: GB1921102024 |
  • EAN-nr: 8711778169067
Low model with dual flush 6 or 3l.
  • Low model for installation under window or shelf area
  • Thin fixture, only 380 mm wide
  • Load tested for 400 kg
Mounting
Product information Product information Spare parts Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • ce_logo
  • Fixture in accordance with the standard SS 820200Tank in accordance with EN 14055Ready for AMA installation without any extra components (SE)
Specifications Product datasheet BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Construction declaration Declaration of performance Product image Additional info See our push buttons and flush buttons
See our wall hung toilets
Assembling & Care

Mounted per included installation instructions.The height dimensions (1000 mm) of the drawing mean a seat height of 410-430 mm depending on the toilet model.Can when installed be adjusted up to 610-630 mm.Flexible bolt spacing for wall-mounted toilet installation, c-c 180 or 230 mm. With bolt spacing 180 c-c, all toilets from Gustavsberg and Villeroy & Boch fit.

Drawing Assembly instruction Care instruction
Packaging information
Length : 400 mm | Width : 900 mm | Height : 150 mm
Weight : 12 kg
Quantity in the package : 1

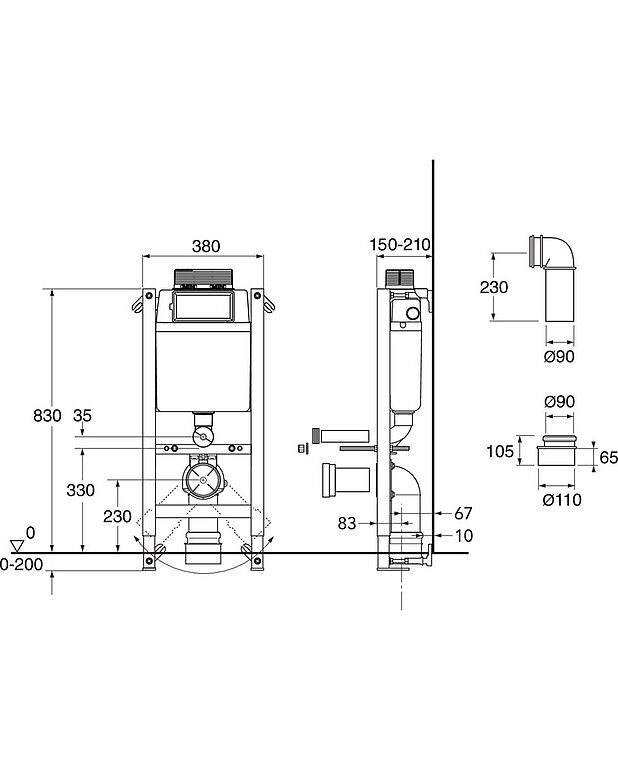

For product specific measurement, see drawing in the carousel.

Other info

Weight: 12 kg incl. packaging.

Low model for mounting against straight wall. Complete with top press or pneumatic flush button. Choice of button controls flush volume. The toilet fixture has been tested to tolerate a load of 400 kg.

Features
  • Low model, suitable for installation under a window or shelf areaInstalled with a top mounted flush button
  • Space efficient construction, only 380 mm wide
  • Suitable for installation on a straight wall or in a corner
  • Upper and lower wall mounts included, floor bolts not necessary
  • Rotating wall brackets for flexible attachment point in wall
  • Flush buttons in different styles, dual flush
  • The seat height is adjustable from 410 to 610 mm
  • Bolt spacing 180 or 230 mm
  • Fits all CE marked wall-mounted toilets
  • SINTEF-certified, load tested steel frame 400 kg
  • Connections for floor or wall connected waste pipe included
  • Ready for AMA installation without any extra components (SE)

Inspired

Fixture Triomont XT - for toilet with top flush button - Thin fixture, only 380 mm wide
Fixture Triomont XT - for toilet with top flush button - Load tested for 400 kg
Fixture Triomont XT - for toilet with top flush button - Drawing - GBG_Triomont_XS_corner_top.jpg
