Fixture Triomont XS - for toilet with wall control panel

Fixture Triomont XS - for toilet with wall control panel

  • RSK-nr: |
  • ART-nr: GB1921102020 |
  • EAN-nr: 8711778140813
Dual flush 6 or 3l and single flush 6l
  • Neat installation, with a minimum of visible pipes
  • Large range of flush buttons in different materials and colours
  • Suitable for installation on a straight wall or in a corner

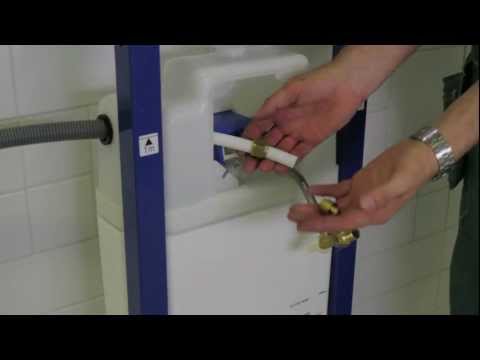

Mounting
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • ce_logo
  • SINTEF-certifiedFixture in accordance with the standard SS 820200Tank in accordance with EN 14055Ready for AMA installation without any extra components (SE)
Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Construction declaration Declaration of performance Product image Additional info See our push buttons and flush buttons
See our wall hung toilets
Assembling & Care

Mounted per included installation instructions.The height dimensions (1000 mm) of the drawing mean a seat height of 410-430 mm depending on the toilet model.Can when installed be adjusted up to 610-630 mm.Flexible bolt spacing for wall-mounted toilet installation, c-c 180 or 230 mm. With bolt spacing 180 c-c, all toilets from Gustavsberg and Villeroy & Boch fit.

Drawing Assembly instruction Care instruction
Other info

Weight: 14 kg incl. packaging.

Deep - 140 mm
Length - 1180 mm
Width - 380 mm

High model for mounting against straight wall or in corner. Compatible with wall press or pneumatic flush button. Choice of button controls flush volume. The toilet fixture has been tested to tolerate a load of 400 kg.

Features
  • Space efficient construction, only 380 mm wide
  • Suitable for installation on a straight wall or in a corner
  • Upper and lower wall mounts included, floor bolts not necessary
  • Rotating wall brackets for flexible attachment point in wall
  • Mounted with a front installed mechanical flush button XS
  • Large selection of flush buttons in different styles, dual or single flush
  • The seat height is adjustable from 410 to 610 mm
  • Bolt spacing 180 or 230 mm
  • Fits all CE-marked wall-mounted toilets
  • SINTEF-certified, load tested steel frame 400 kg
  • Connections for floor or wall connected waste pipe included
  • Ready for AMA installation without any extra components (SE)
