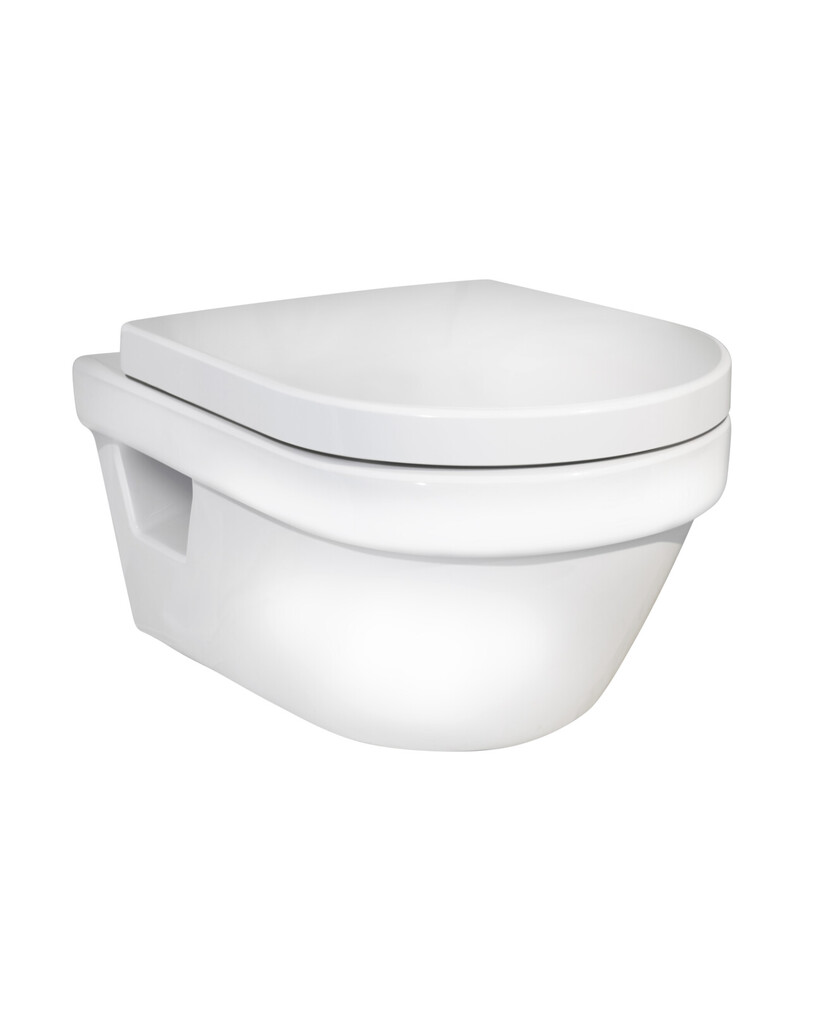

Wall hung toilet 5G84 - Hygienic Flush

With Soft Close/Quick Release toilet seat

Easy-to-clean and minimalist design
Open flush edge for simplified cleaning
Flushes all the way up to the rim

Article number: 5G84HR01

EAN-number 4051202288662

FIND A RETAILER ADD TO WISHLIST Loading...

Your recently viewed products
SHARE PRODUCT
- e-mail
- facebook
- google plus
- pinterest
- Show all

OTHER OPTIONS OF SAME PRODUCT

Wall hung toilet 5G84 - Hygienic Flush

Wall hung toilet without toilet seat

PRODUCT INFORMATION

Specifications

Product datasheet

BIM/3D

BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa)

Product image

Download high resolution product picture

Assembling & Care

Intended for installation with our Triomont fixtures. Mounted with bolts directly on the wall. Washers, bushings and nuts (M12) included, but not bolts (included with Triomont fixture). Bolt projection from finished wall must be 70 ± 2 mm. See included installation instructions.

Features

Made from hygienic, durable and densely sintered sanitary ware
Easy-to-clean and minimalist design
With open flush edge for simplified cleaning
Flushes all the way up to the rim
Works with our Triomont fixtures

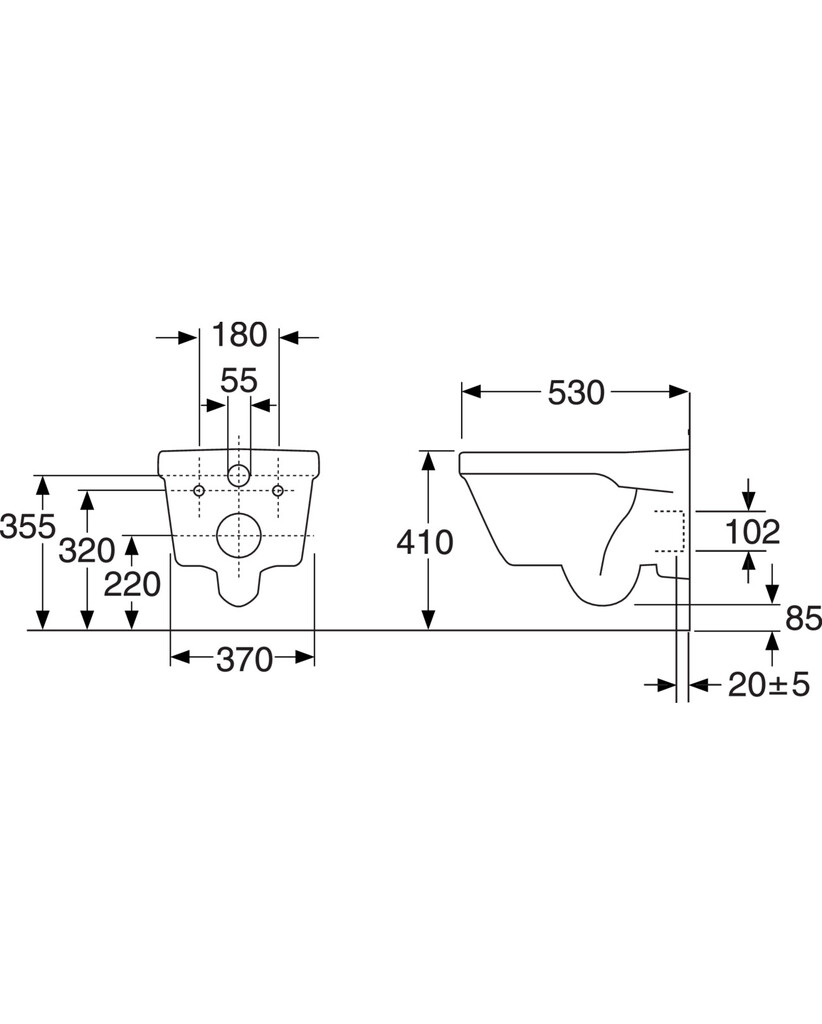

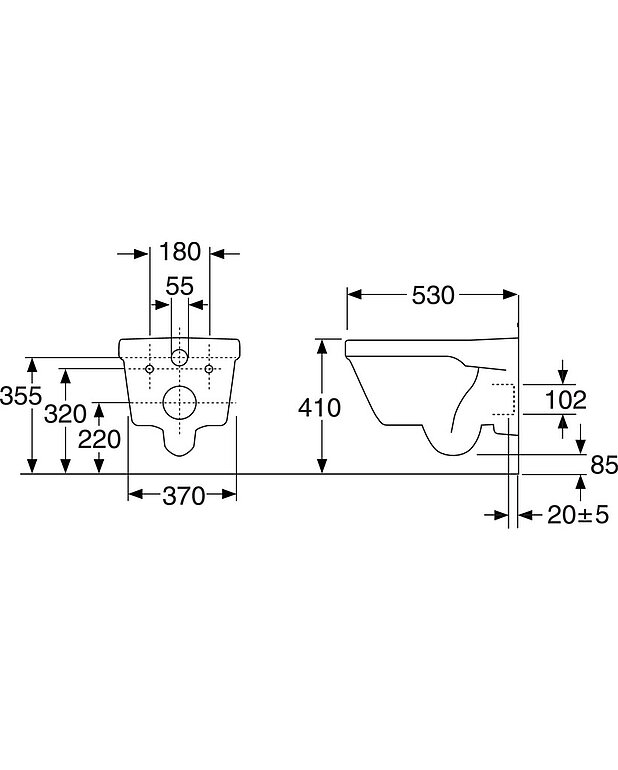

Bolt spacing c-c 180 mm
Load rated for 400 kg

Show more Show less

Standards & Approvals

Complies with Safe Water installation requirements
CE approved

Additional Info

Acessories and assembly products

Flush button for fixture XS - wall control panel, square

Wall control panel for Triomont XS with a rectangular flush button. Available in different materials and colours.

X09 XS_MECHANIC_FRAME.Dual flush 6 or 3l and single flush 6l

Fixture Triomont XS - for toilet with wall control panel

Fixture for wall hung toilets. Combine it with a wall control panel that suits your bathroom.

X09 XT_MECHANIC_FRAME.Low model with dual flush 6 or 3l

Fixture Triomont XT - for toilet with top flush button

Fixture for wall hung toilets. Low model for installation, i.e. under a window.

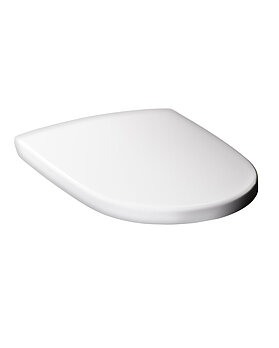

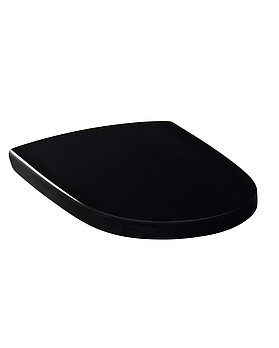

Toilet seat Artic 9M16 - SC/QR

Toilet seat for the Artic series & 5G84. With Soft Close (SC) for quiet and soft closure and Quick Release (QR) to facilitate removal for simplified cleaning. Available in black and white.

Toilet seat Artic 9M16 - SC/QR

Toilet seat suitable for both Artic and Hygienic Flush toilet models. Toilet seat with Soft Close (SC) for quiet and soft closure and Quick Release (QR) for facilitate removal and simplified cleaning. Available in black and white.

Show all
