Wall hung toilet 5G84 - Hygienic Flush

Wall hung toilet 5G84 - Hygienic Flush

  • RSK-nr: |
  • ART-nr: 5G84R001 |
  • EAN-nr: 4051202288679

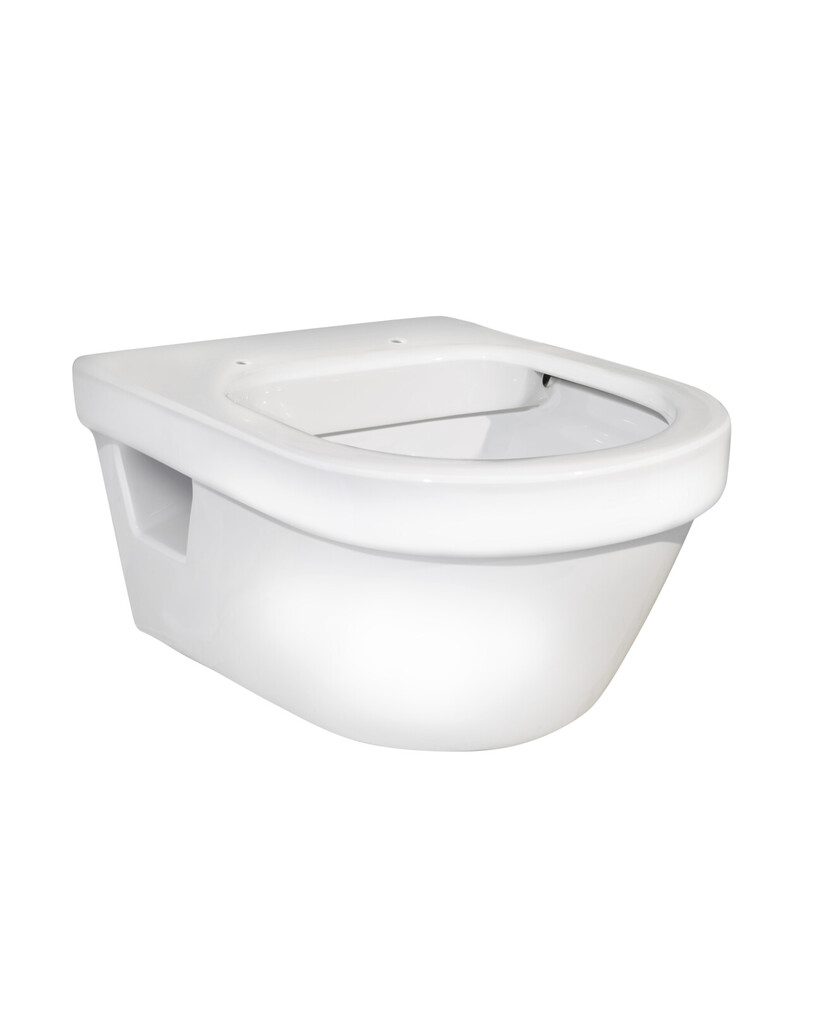

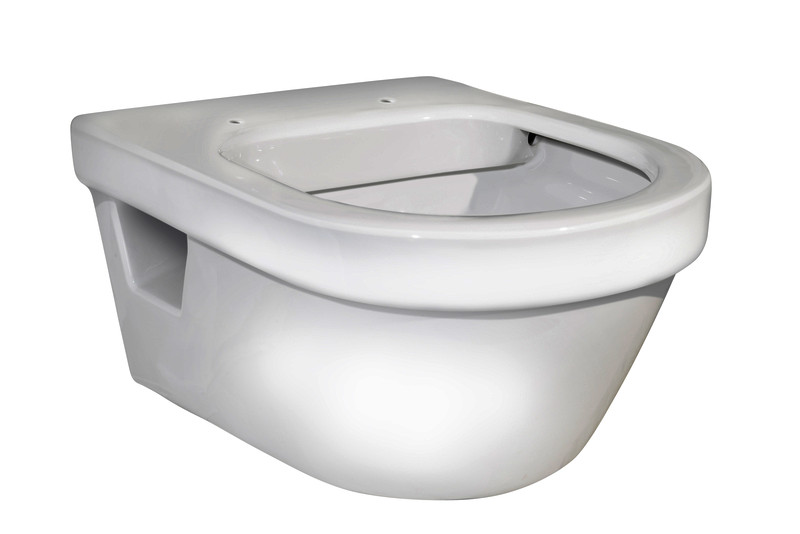

Wall hung toilet without toilet seat.
  • Easy-to-clean and minimalist design
  • With open flush edge for simplified cleaning
  • Flushes all the way up to the rim
Product information Product information Spare parts Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • ce_logo
  • Complies with Safe Water installation requirements
  • CE approved
Specifications Product datasheet BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Declaration of performance Product image Additional info Read more about Hygienic Flush
Assembling & Care

Intended for installation with our Triomont fixtures. Mounted with bolts directly on the wall. Washers, bushings and nuts (M12) included, but not bolts (included with Triomont fixture). Bolt projection from finished wall must be 70 ± 2 mm. See included installation instructions.

Drawing Assembly instruction Care instruction
Packaging information
Length : 535 mm | Width : 450 mm | Height : 390 mm
Weight : 22.02 kg
Quantity in the package : 1

For product specific measurement, see drawing in the carousel.

Features
  • Made from hygienic, durable and densely sintered sanitary wareEasy-to-clean and minimalist design
  • With open flush edge for simplified cleaning
  • Flushes all the way up to the rim
  • Works with our Triomont fixtures
  • Multiple seat options in two different colours, white or black
  • Bolt spacing c-c 180 mm
  • Load rated for 400 kg

Inspired

Wall hung toilet 5G84 - Hygienic Flush - With open flush edge for simplified cleaning
Wall hung toilet 5G84 - Hygienic Flush - Flushes all the way up to the rim
Wall hung toilet 5G84 - Hygienic Flush - Flushes all the way up to the rim
