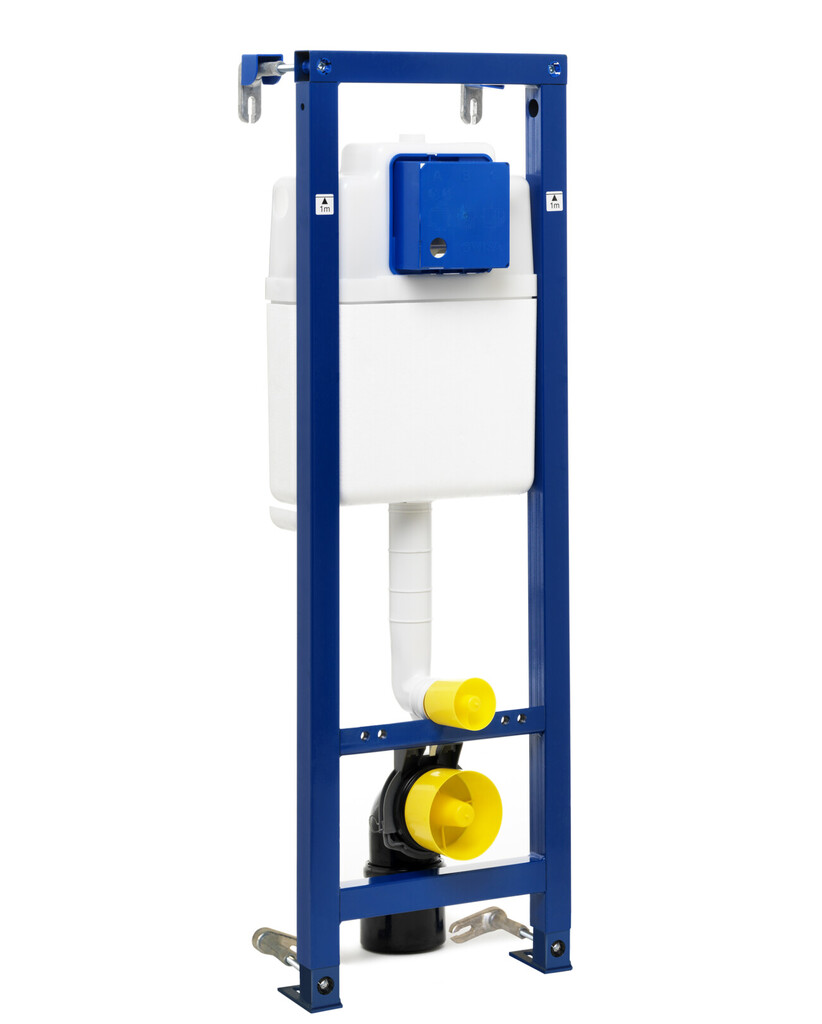

Fixture Triomont XS - for toilet with wall control panel

Fixture Triomont XS - for toilet with wall control panel

  • RSK-nr: |
  • ART-nr: GB1921102026 |
  • EAN-nr: 8711778215757
Dual flush 4.5 or 3l and single flush 4.5l
  • Flushing can be set to 4/2 l

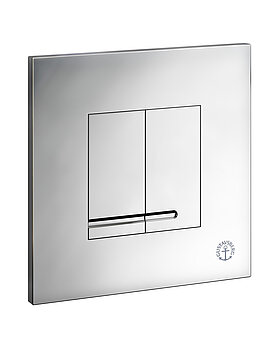

  • Large range of flush buttons in different materials and colours

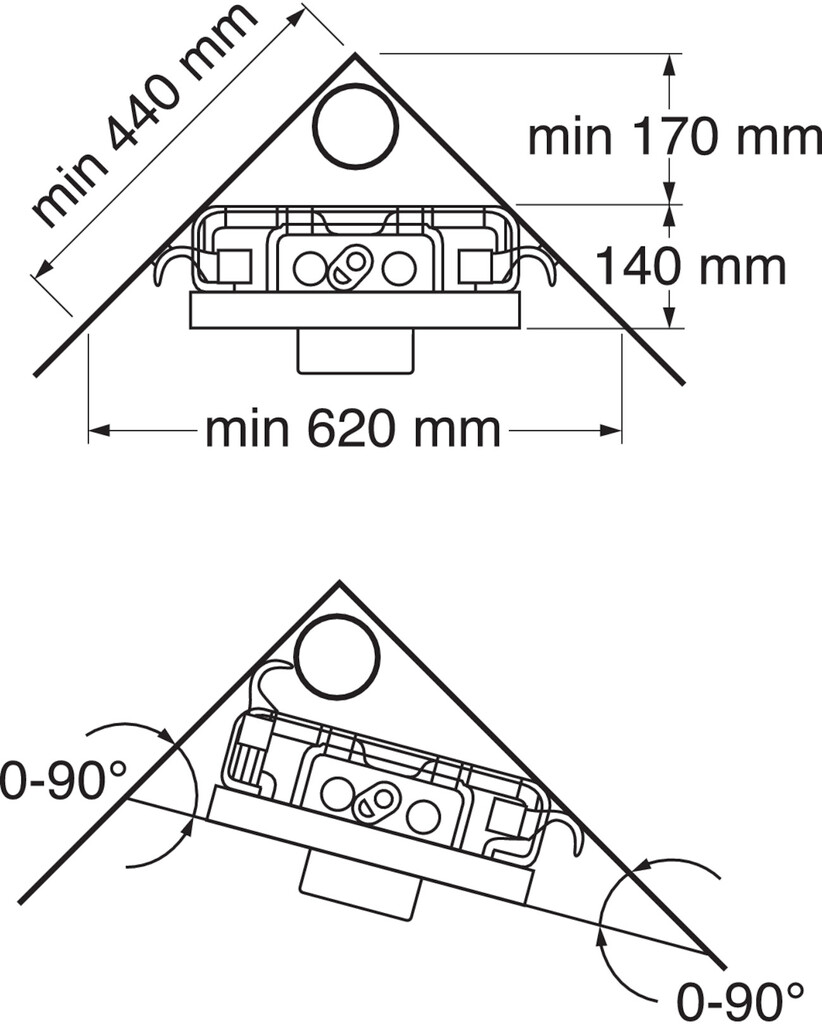

  • Suitable for installation on a straight wall or in a corner
montering_cmyk
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • ce_logo
  • SINTEF-certifiedFixture in accordance with the standard SS 820200Tank in accordance with EN 14055Ready for AMA installation without any extra components (SE)
Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Declaration of performance Product image Additional info See our push buttons and flush buttons
See our wall hung toilets
Assembling & Care

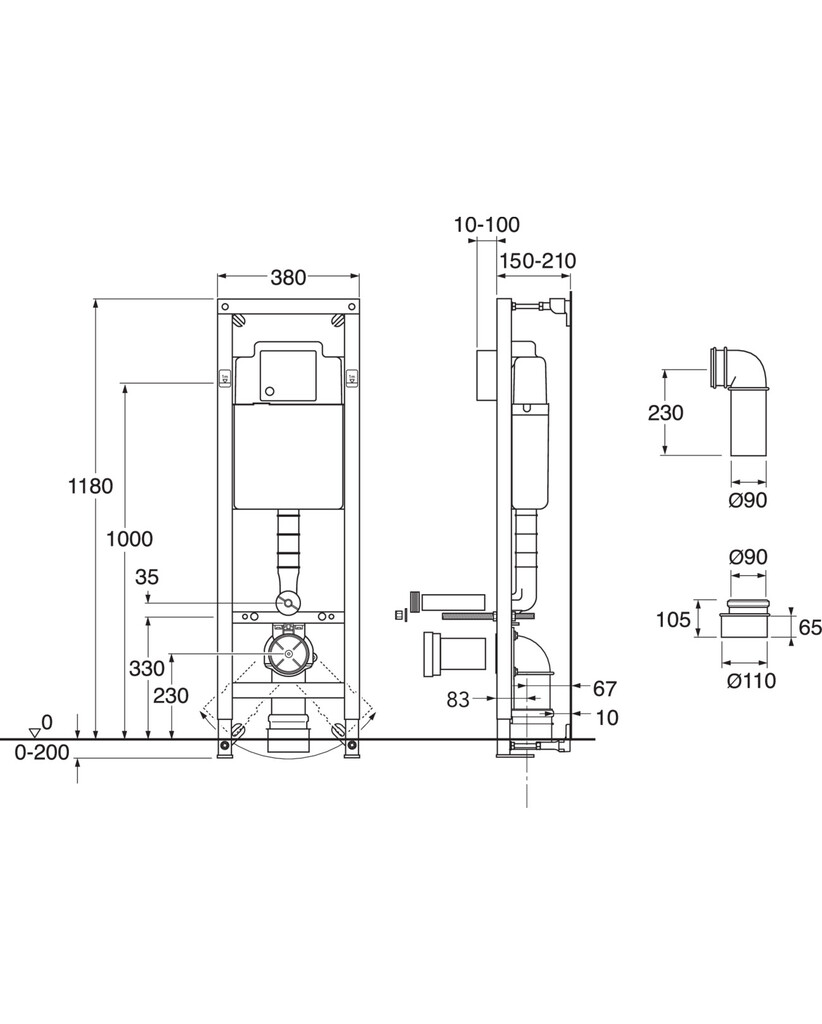

Mounted per included installation instructions. The height dimensions (1000 mm) of the drawing mean a seat height of 410-430 mm depending on the toilet model. Can when installed be adjusted up to 610-630 mm. Flexible bolt spacing for wall-mounted toilet installation, c-c 180 or 230 mm. With bolt spacing 180 c-c, all toilets from Gustavsberg and Villeroy & Boch fit.

Drawing Assembly instruction
Other info

Weight: 14 kg incl. packaging.

Deep - 142 mm
Length - 1142 mm
Width - 385 mm
Features
  • Space efficient construction, only 380 mm wide
  • Suitable for installation on a straight wall or in a corner
  • Upper and lower wall mounts included, floor bolts not necessary
  • Rotating wall brackets for flexible attachment point in wall
  • Mounted with a front installed mechanical flush button XS
  • Large selection of flush buttons in different styles, dual or single flush
  • The seat height is adjustable from 410 to 610 mm
  • Bolt spacing 180 or 230 mm
  • Fits all CE-marked wall-mounted toilets
  • SINTEF-certified, load tested steel frame 400 kg
  • Connections for floor or wall connected waste pipe included
  • Ready for AMA installation without any extra components (SE)
