Fixture Triomont XS Vario – with adjustable seat height

Fixture Triomont XS Vario – with adjustable seat height

  • RSK-nr: |
  • ART-nr: GB1921102022 |
  • EAN-nr: 8711778169715
Primarily intended for hospitals and care facilities
  • The seat height is adjustable after the installation
  • Large selection of flush buttons in different materials and colours
  • Load tested for 400 kg
Mounting
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • ce_logo
  • Fixture in accordance with the standard SS 820200Tank in accordance with EN 14055Ready for AMA installation without any extra components (SE)
Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Declaration of performance Product image Additional info See our push buttons and flush buttons
See our wall hung toilets
Assembling & Care

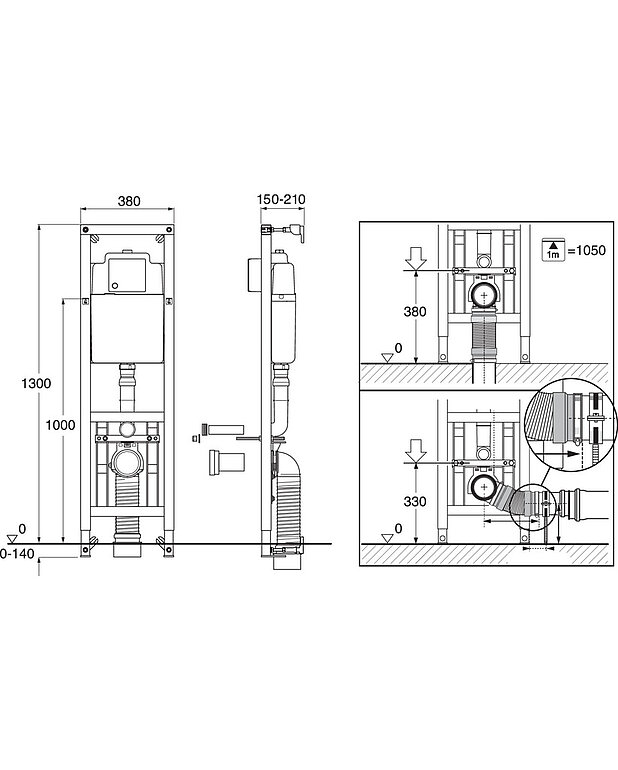

Mounted per included installation instructions. The height dimensions (1000 mm) of the drawing mean a seat height of 410-430 mm depending on the toilet model. Can when installed be adjusted up to 610-630 mm. Flexible bolt spacing for wall-mounted toilet installation, c-c 180 or 230 mm. With bolt spacing 180 c-c, all toilets from Gustavsberg and Villeroy & Boch fit.

Drawing Assembly instruction Care instruction
Other info

Weight: 19 kg incl. packaging.

Deep -
Length -
Width -

Primarily intended for hospital and care facilities. High model for mounting against straight wall or in corner. With adjustable height of toilet bowl after installation. Complete with wall mechanical wall press. Choice of button controls flush volume. The toilet fixture is tested for

Features
  • Adjustable height of wall-mounted toilet after installation (100 mm)
  • Space efficient construction, only 380 mm wide
  • Suitable for installation on a straight wall or in a corner
  • Upper and lower wall mounts included, floor bolts not necessary
  • Rotating wall brackets for flexible attachment point in wall
  • Seat height adjustable from 410 to 610 mm upon installation
  • Suitable for care facilities
  • Installed with a front mounted mechanical flush button XS
  • Large selection of flush buttons in different styles, dual or single flush
  • Bolt spacing 180 or 230 mm
  • Fits all CE-marked wall-mounted toilets
  • SINTEF-certified, load tested steel frame 400 kg
  • Flexible waste hose included
  • Ready for AMA installation without any extra components (SE)
