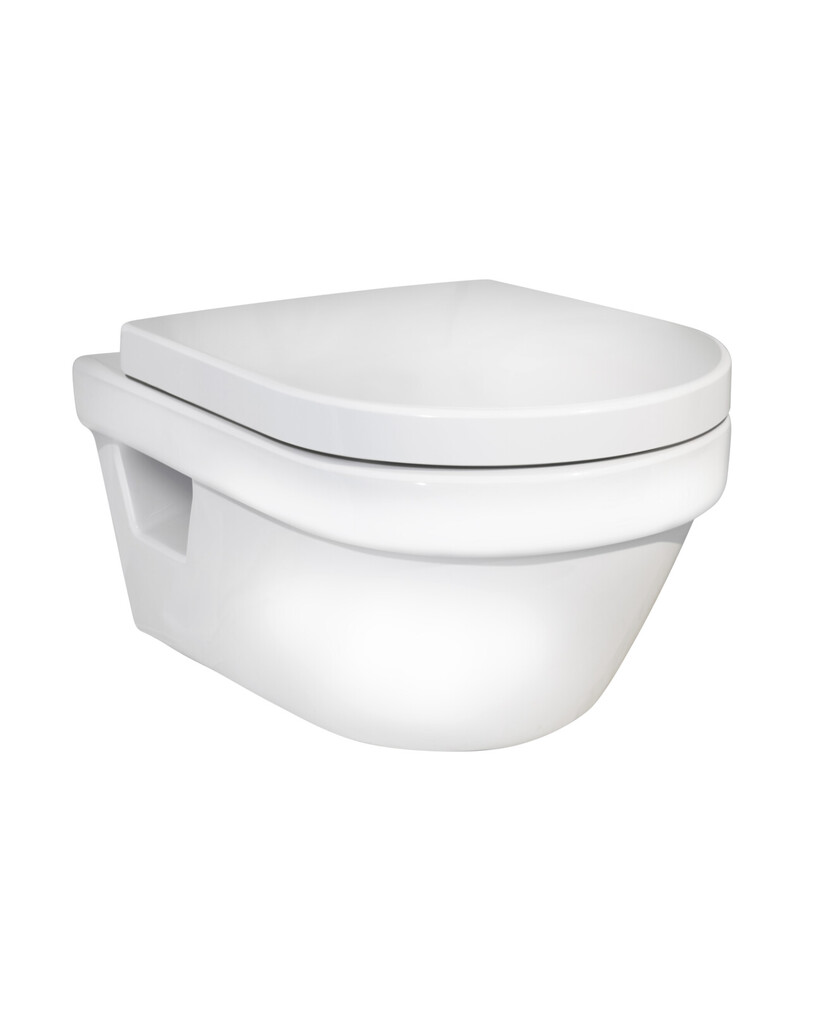

Wall hung toilet 5G84 - Hygienic Flush

Wall hung toilet 5G84 - Hygienic Flush

  • RSK-nr: |
  • ART-nr: 5G84HR01 |
  • EAN-nr: 4051202288662
With Soft Close/Quick Release seat.
  • Easy-to-clean and minimalist design
  • Open flush edge for simplified cleaning
  • Flushes all the way up to the rim

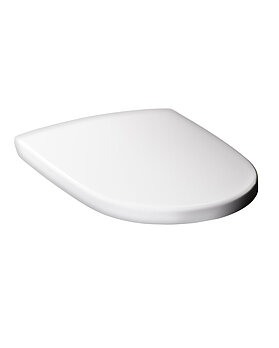

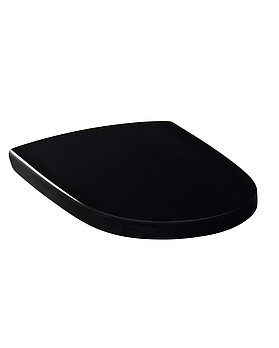

Soft close Quick release
Product information Product information Spare parts Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • ce_logo
  • Complies with Safe Water installation requirements
  • CE approved
Specifications Product datasheet BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Declaration of performance Product image Additional info Read more about Hygienic Flush
Read users´ reviews
Assembling & Care

Intended for installation with our Triomont fixtures. Mounted with bolts directly on the wall. Washers, bushings and nuts (M12) included, but not bolts (included with Triomont fixture). Bolt projection from finished wall must be 70 ± 2 mm. See included installation instructions.

Drawing Assembly instruction Care instruction
Packaging information
Length : 410 mm | Width : 415 mm | Height : 570 mm
Weight : 25.75 kg
Quantity in the package : 1

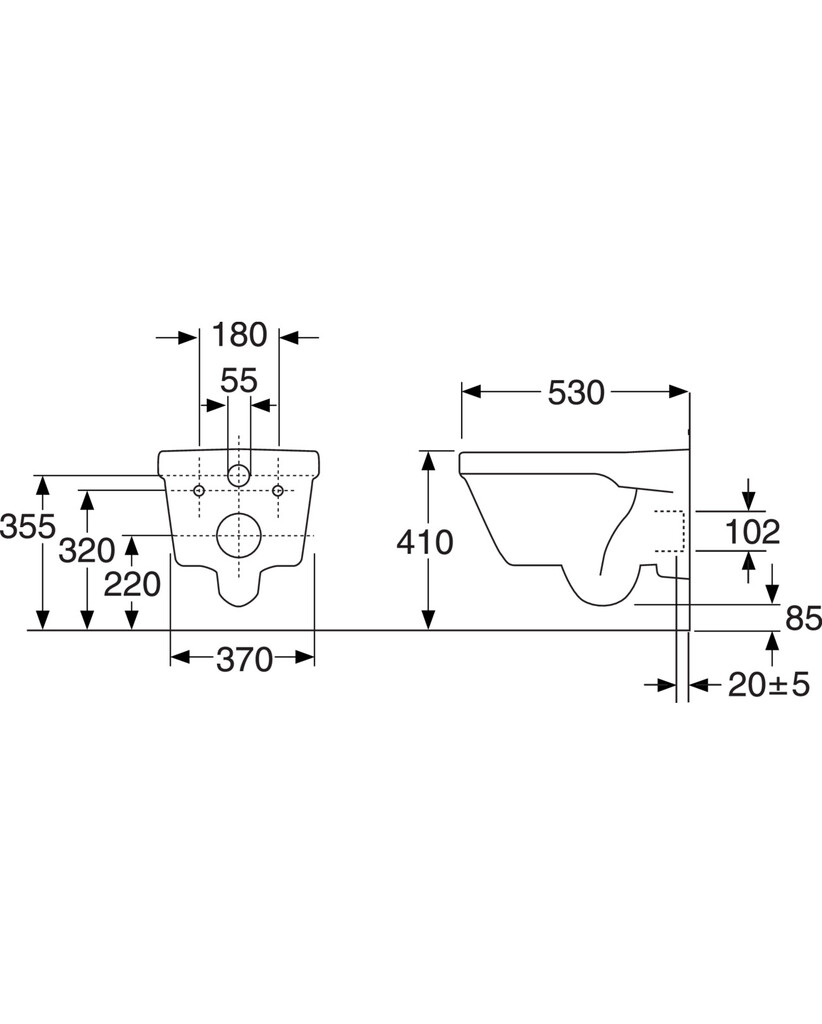

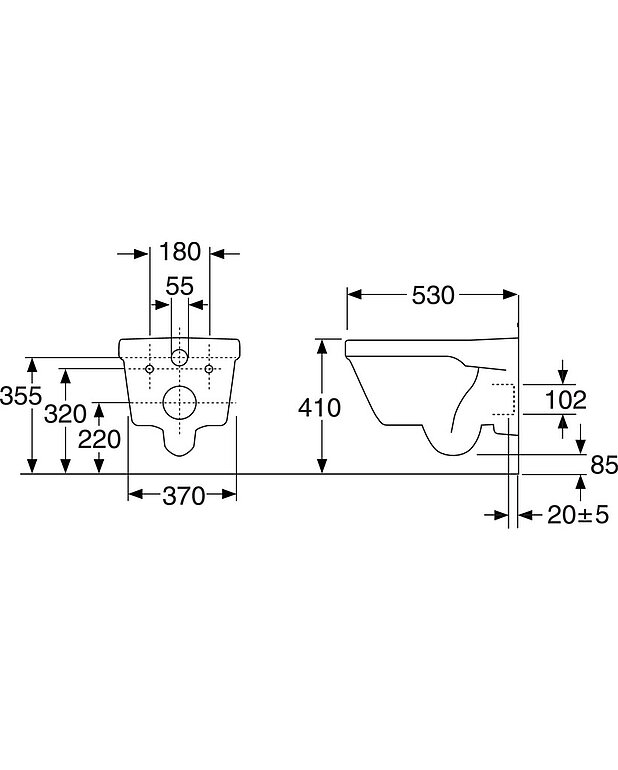

For product specific measurement, see drawing in the carousel.

Features
  • Made from hygienic, durable and densely sintered sanitary wareEasy-to-clean and minimalist design
  • With open flush edge for simplified cleaning
  • Flushes all the way up to the rim
  • Works with our Triomont fixtures
  • Bolt spacing c-c 180 mm
  • Load rated for 400 kg
