Product information

Standards & Approvals

The product follows AMA recommendations, SS-EN 33 dimensioning and SS-EN 997 function
Complies with Safe Water installation requirements
CE approved

Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Construction declaration Declaration of performance Product image

Assembling & Care

Mounting with the included bracket, which is screwed to the floor with two screws. Alternative mounting on floor with glue. Caps for screws and white plugs for screw holes for gluing included. The rounded tank and small outer dimensions also make it suitable for

Drawing Assembly instruction Care instruction

Other info

Ballcock with adjustable connection R1/2 external metal threading. The bottom valve has a button-operated half and full flush (dual flush). Factory set to 3.0/6.0 litre, or with button-operated bottom valve for single flush

Deep - 940 mm

Length - 680 mm

Width - 360 mm

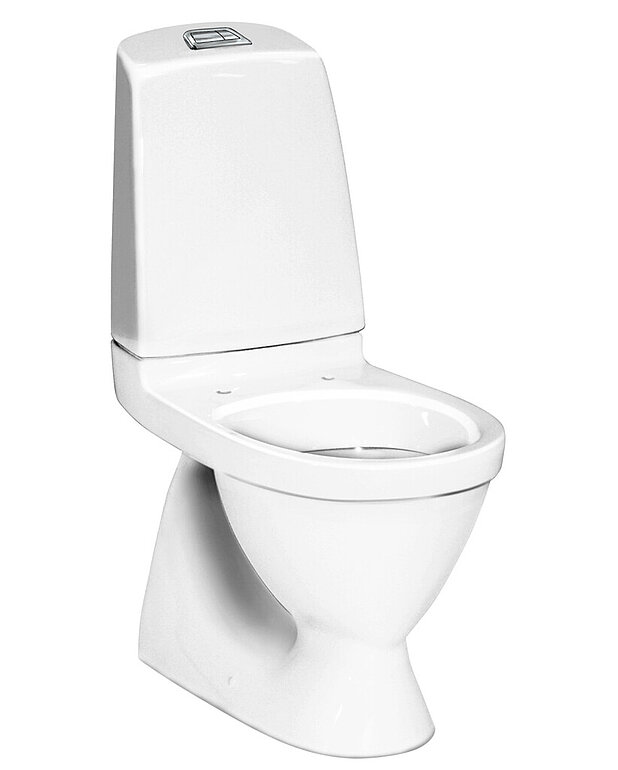

The Nautic series is our latest and most extensive product series, with models covering nearly every need. The moulded, full porcelain cover conceals a separate and sound-dampening inner tank. For any service, all you have to do is just loosen the

Features

Made from hygienic, durable and densely sintered sanitary wareEasy-to-clean and minimalist design
Glazed under the flush edge for simplified cleaning
Factory-set dual flush 3/6 L
Flush volume adjustable up to 6 L
Ergonomically elevated flush button
Seat height.
