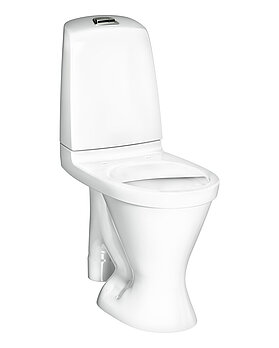

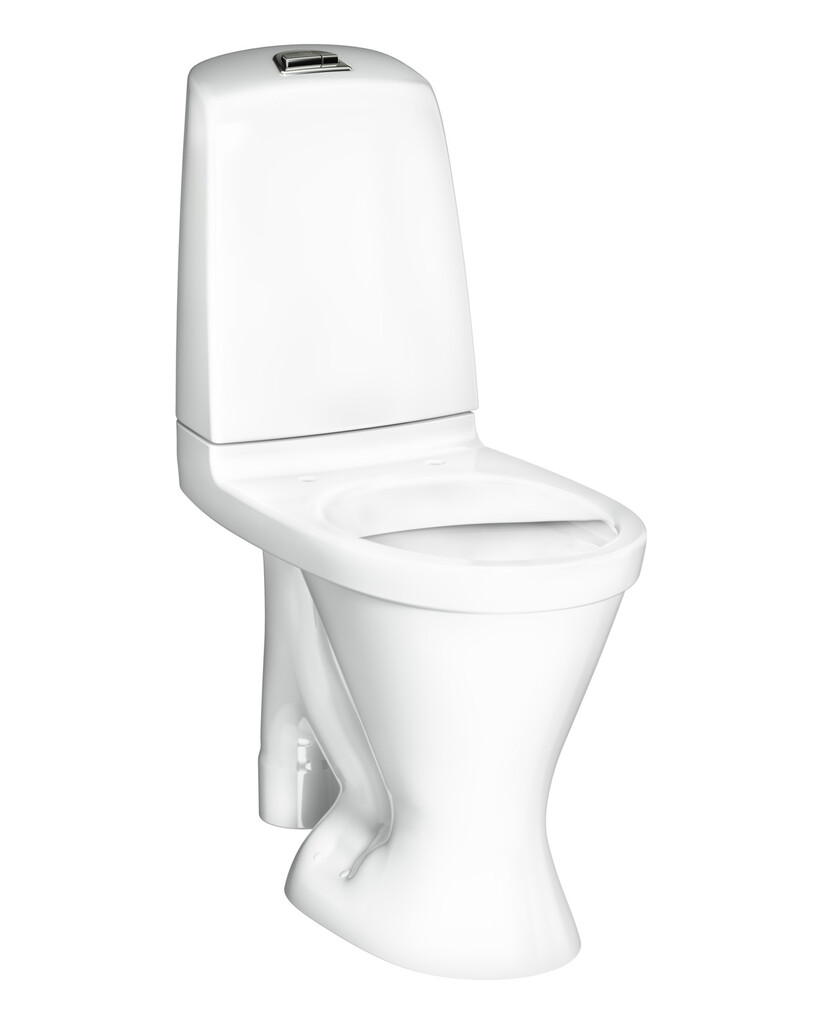

Toilet Nautic 1596 - open S-trap, large footprint, high model, Hygienic Flush

Toilet Nautic 1596 - open S-trap, large footprint, high model, Hygienic Flush

  • RSK-nr: |
  • ART-nr: GB1115963R1205 |
  • EAN-nr: 7391530067155
Dual flush 3/6L, without seat, Ceramicplus
  • Ceramicplus for quick and eco-friendly cleaning
  • Elevated seat height for better comfort
  • Large footprint: covers marks left by old toilet
Hygienic flush Ceramicplus-1684242901 No room for dirt
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • ce_logo
  • The product follows AMA recommendations, SS-EN 33 dimensioning and SS-EN 997 functionComplies with Safe Water installation requirementsCE approved
Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Declaration of performance Product image Flow diagram Additional info Read more about Hygienic Flush
Read users´ reviews
Assembling & Care

Floor mounting with four stainless steel screws and plastic caps. The rounded cistern and the small outer dimensions makes it suitable for corner installations. Intended primarily as a replacement model during renovation without stack and/or floor replacement. The large footprint covers marks left on the floor by the old toilet. Please refer to the installation manual. Fittings included.

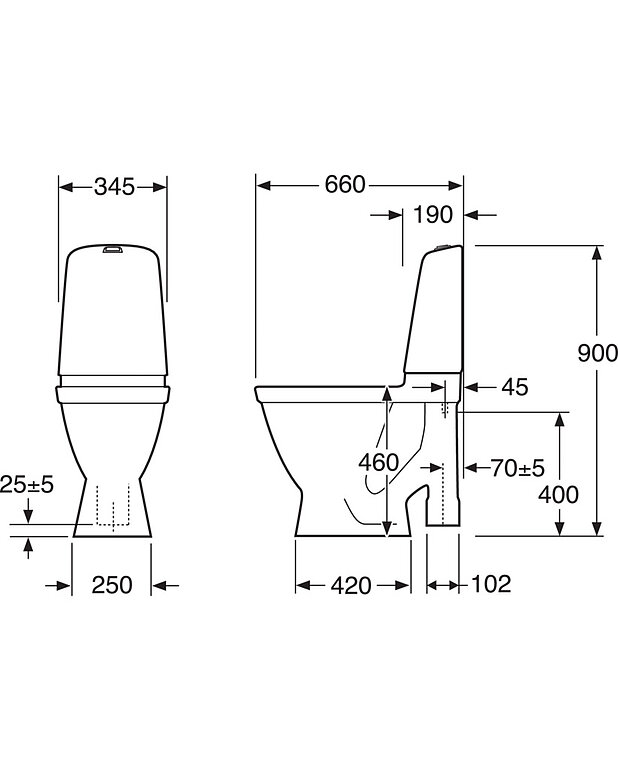

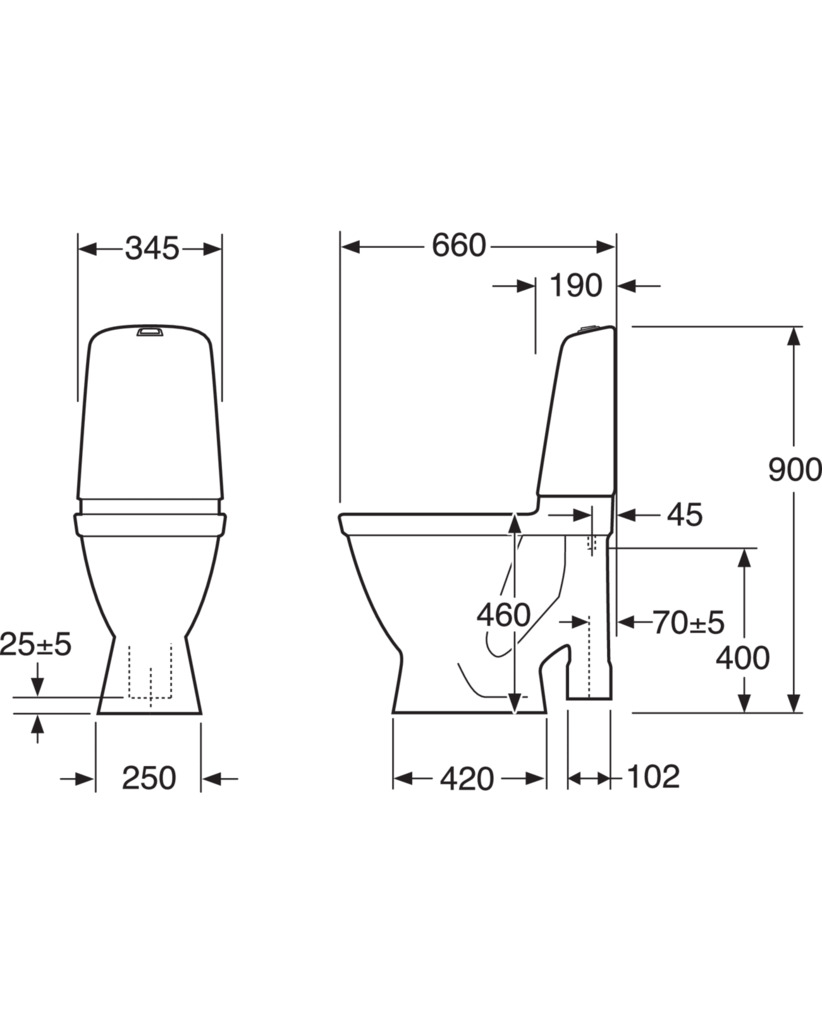

Drawing Assembly instruction Care instruction
Other info

Ballcock with adjustable connection R1/2´ exterior metal threads. The bottom valve has a button-operated half and full flush (dual flush). Factory set to 2.6/4.0L, or with a button-operated bottom valve for single flush set for 4 or 6 litres.

Deep - 910 mm
Length - 650 mm
Width - 345 mm
Features
  • Made from hygienic, durable and densely sintered sanitary ware
  • Easy-to-clean and minimalistic design
  • Glazed under the flush edge for simplified cleaning
  • Factory set dual flush 3/6L
  • Flush volume adjustable up to 6L
  • Elevated seat height compared to other models, 460mm
  • The large footprint covers marks left by old toilet
  • Full-coverage, condensation-free cistern
  • Quiet refilling
  • Can be combined with armrest and care seat for improved accessibility
  • Several seat options in two different colours, white or black
  • With open, glazed flush edge for simplified cleaning
  • Flushes all the way up to the rim for improved hygiene
  • Adjustable water connection R1/2´ for flexible installation
  • Mounting to floor with four screws or adhesive installation
  • Suitable for corner installation
