Wall hung toilet Nautic 5530

Wall hung toilet Nautic 5530

  • RSK-nr: |
  • ART-nr: GB1155300R1000 |
  • EAN-nr: 7391530063669
Without seat, C+
  • Works with our Triomont fixtures
  • Ceramicplus: fast & environmentally friendly cleaning
  • Flexible bolt spacing c-c 180/230 mm
Ceramicplus-1684242901
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • ce_logo
  • The product follows AMA recommendations, SS-EN 33 dimensioning and SS-EN 997 function
  • Complies with Safe Water installation requirements
  • CE approved
Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Construction declaration Declaration of performance Product image Additional info Read more about Ceramicplus
Assembling & Care

Intended for installation with our Triomont fixtures. Mounted with bolts directly on the wall. Washers, bushings and nuts (M12) included, but not bolts (included with Triomont fixture). Bolt projection from finished wall must be 60 ± 2 mm. See included installation instructions.

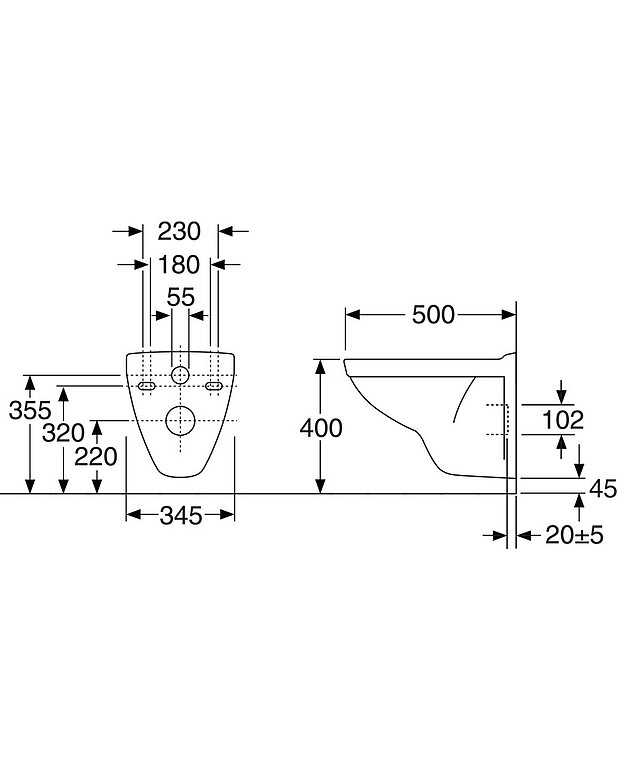

Drawing Assembly instruction Care instruction
Other info
Deep - 500 mm
Length - 345 mm
Width - 350 mm

The Nautic series is our latest and most extensive product series, with models covering nearly every need.

Features
  • Made from hygienic, durable and densely sintered sanitary ware
  • Easy-to-clean and minimalist design
  • Glazed under the flush edge for simplified cleaning
  • Works with our Triomont fixtures
  • Recommended flush volume 4,5/3 L
  • Multiple seat options in two different colours, white or black
  • Ceramicplus for quick, eco-friendly cleaning
  • Flexible bolt spacing c-c 180/230 mm
  • Load rated for 400 kg
