Wall hung toilet Artic 4330

Wall hung toilet Artic 4330

  • RSK-nr: |
  • ART-nr: GB1143302R1231 |
  • EAN-nr: 7391530058504

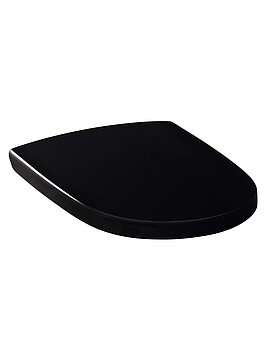

Soft Close/Quick Release seat, Ceramicplus
  • Design with straight lines at right angles
  • Works with our Triomont fixtures
  • Ceramicplus: fast & environmentally friendly cleaning
Ceramicplus-1684242901
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • ce_logo
  • The product follows AMA recommendations, SS-EN 33 dimensioning and SS-EN 997 function
  • Complies with Safe Water installation requirements
  • CE approved
Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Declaration of performance Product image Additional info Read more about Ceramicplus
Assembling & Care

Intended for installation with our Triomont fixtures. Mounted with bolts directly on the wall. Washers, bushings and nuts (M12) included, but not bolts (included with Triomont fixture). Bolt projection from finished wall must be 90 ± 2 mm. See included installation instructions.

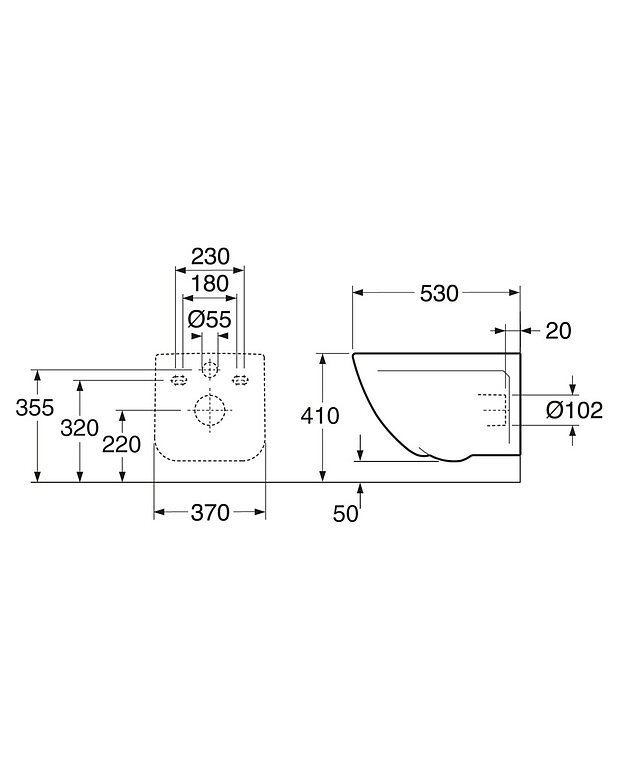

Drawing Assembly instruction Care instruction
Other info

Artic is intended for dual-flush 3/6 litres and single-flush of at least 5 litres.

Deep -
Length -
Width -
Features
  • Made from hygienic, durable and densely sintered sanitary ware Design with straight lines at right angles
  • Glazed under the flush edge for simplified cleaning
  • Works with our Triomont fixtures
  • Recommended flush volume 4,5/3 L
  • Ceramicplus for quick, eco-friendly cleaning
  • Flexible bolt spacing c-c 180/230 mm
  • Load rated for 400 kg
