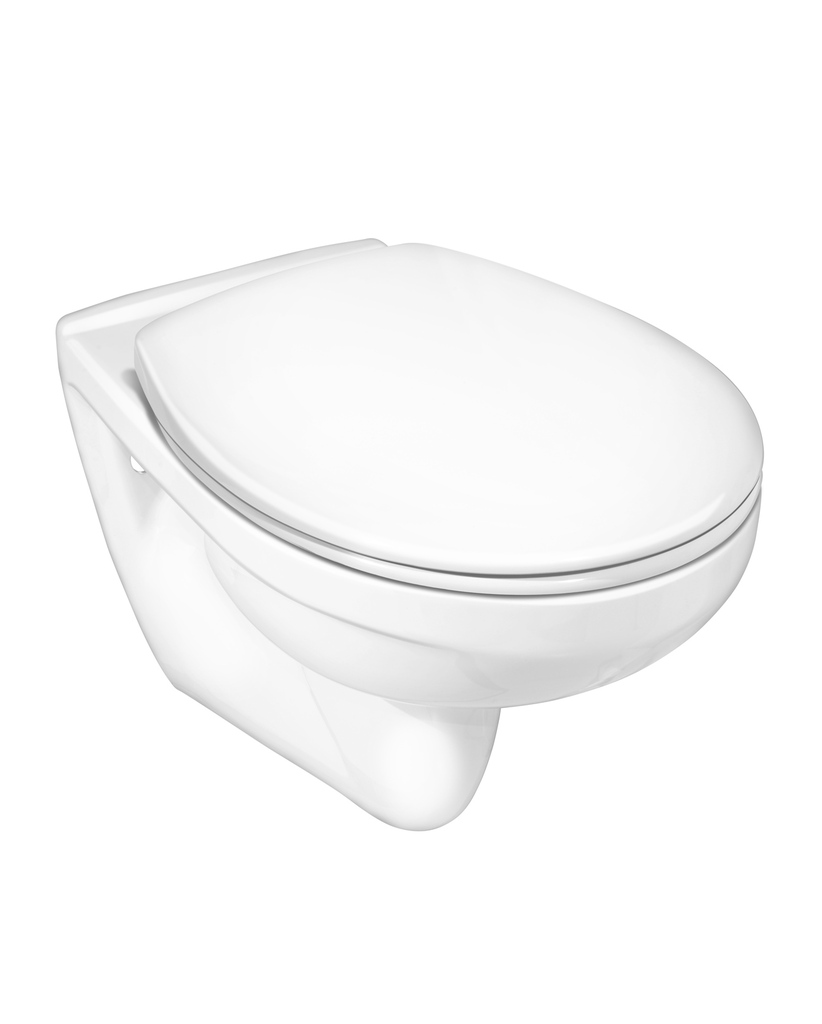

Wall hung toilet Nordic³ 3530

Wall hung toilet Nordic³ 3530

  • RSK-nr: |
  • ART-nr: GB113530001000 |
  • EAN-nr: 7391530066851
Without seat
  • Functional design, standard Scandinavian dimensions
  • Glazed under the flush edge for simplified cleaning
  • Works with our Triomont fixtures

Product information

Standards & Approvals
  • ce_logo
  • The product follows AMA recommendations, SS-EN 33 dimensioning and SS-EN 997 function
  • Complies with Safe Water installation requirements
  • CE approved
Assembling & Care

Intended for installation with our Triomont fixtures. Mounted with bolts directly on the wall. Washers, bushings and nuts (M12) included, but not bolts (included with Triomont fixture). Bolt projection from finished wall must be 60 ± 2 mm. See included installation instructions.

Drawing Assembly instruction Care instruction
Other info
Deep - 355 mm
Length - 535 mm
Width - 355 mm
Features
  • Made from hygienic, durable and densely sintered sanitary ware
  • Functional design with standard Scandinavian dimensions
  • Glazed under the flush edge for simplified cleaning
  • Works with our Triomont fixtures
  • Recommended flush volume 3/6 L
  • Multiple seat options in white
  • Bolt spacing c-c 180 mm
  • Load rated for 400 kg
