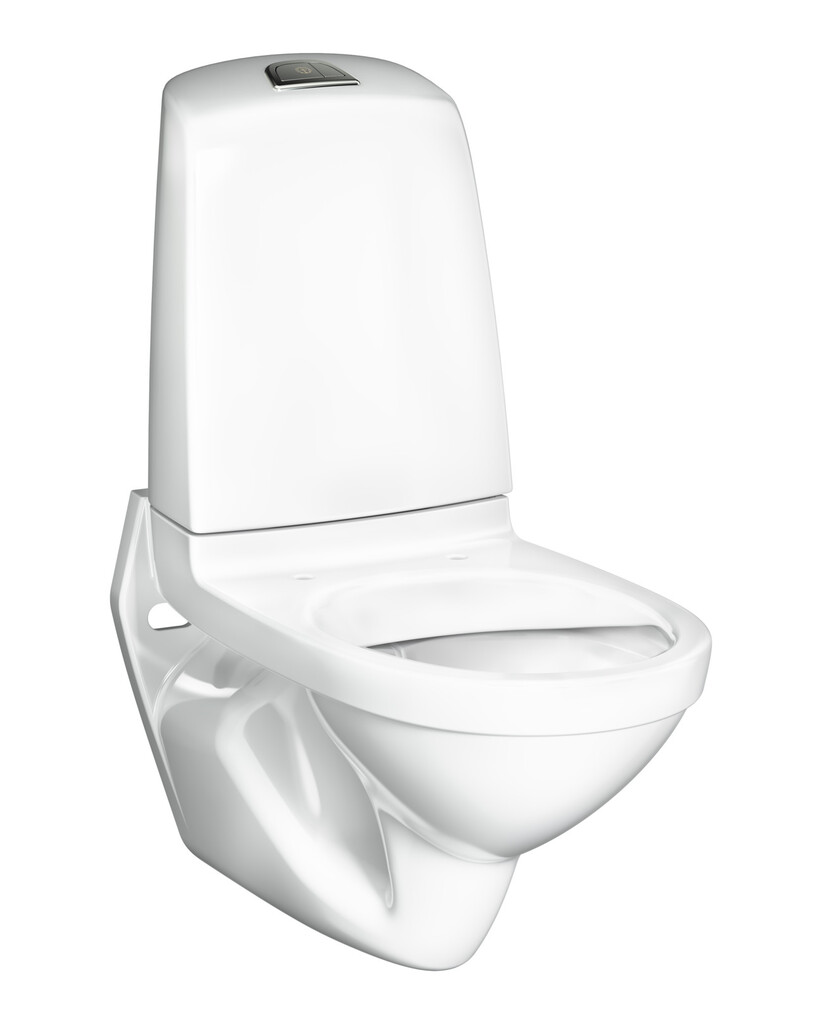

Wall-hung toilet Nautic 1522 - with cistern, Hygienic Flush

Wall-hung toilet Nautic 1522 - with cistern, Hygienic Flush

  • RSK-nr: |
  • ART-nr: GB1115222R1304 |
  • EAN-nr: 7391530067360
Dual flush 4/2L, without seat, C+
  • Low flush button with a neat design
  • Space between tank and wall for easier cleaning
  • With open, glazed flush edge for simplified cleaning
Ceramicplus-1684242901 Hygienic flush No room for dirt

Product information

Standards & Approvals
  • ce_logo
  • The product follows AMA recommendations, SS-EN 33 dimensioning and SS-EN 997 functionComplies with Safe Water installation requirementsCE approved
Assembling & Care

Mounted with bolts directly on the wall. Washers, bushings and nuts included (M12) but not bolts. Bolt projection from finished wall must be 60 ± 2mm. Rubber bellows for waste pipe connection included. See supplied installation instructions and mounting kit for each toilet. Triomont fixture for wall hung toilet and bidet RSK 382 57 56, is recommended for installation on weak walls. According to the AMA the seat height should be 450 mm which corresponds to 270 mm distance (centre-centre) between the existing floor and the centre of the drain.

Drawing Assembly instruction Care instruction
Other info

Ballcock with adjustable connection R1/2´ exterior metal threads. The bottom valve has a button-operated half and full flush (dual flush). Factory set to 2.6/4.0L, or with a button-operated bottom valve for single flush set for 4 or 6 litres.

Deep - 800 mm
Length - 700 mm
Width - 345 mm
Features
  • Made from hygienic, durable and densely sintered sanitary ware
  • Easy-to-clean and minimalistic design
  • Glazed under the flush edge for simplified cleaning
  • Space between tank and wall for easier cleaning
  • Factory set dual flush 2.6/4L
  • Flush volume adjustable up to 6L
  • Full-coverage, condensation-free cistern
  • Quiet refilling
  • Suits our Triomont fixture for wall hung toilet with tank
  • Can be combined with armrest and care seat for improved accessibility
  • Several seat options in two different colours, white or black
  • With open, glazed flush edge for simplified cleaning
  • Flushes all the way up to the rim for improved hygiene
  • Ceramicplus for quick and eco-friendly cleaning
  • Adjustable water connection R1/2´ for flexible installation
  • Flexible distance between bolts (centre to centre) 180/230mm
  • Load tested to 400 kg
