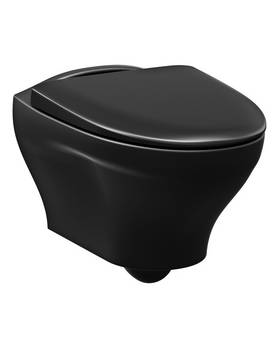

Wall hung toilet Estetic 8330 - Hygienic Flush

Wall hung toilet Estetic 8330 - Hygienic Flush

  • RSK-nr: |
  • ART-nr: GB1183300R1030 |
  • EAN-nr: 4051202471927
Soft Close/Quick Release seat, C+.
  • Organic design with easy-to-clean surfaces
  • Hygienic Flush: open flush rim for easier cleaning

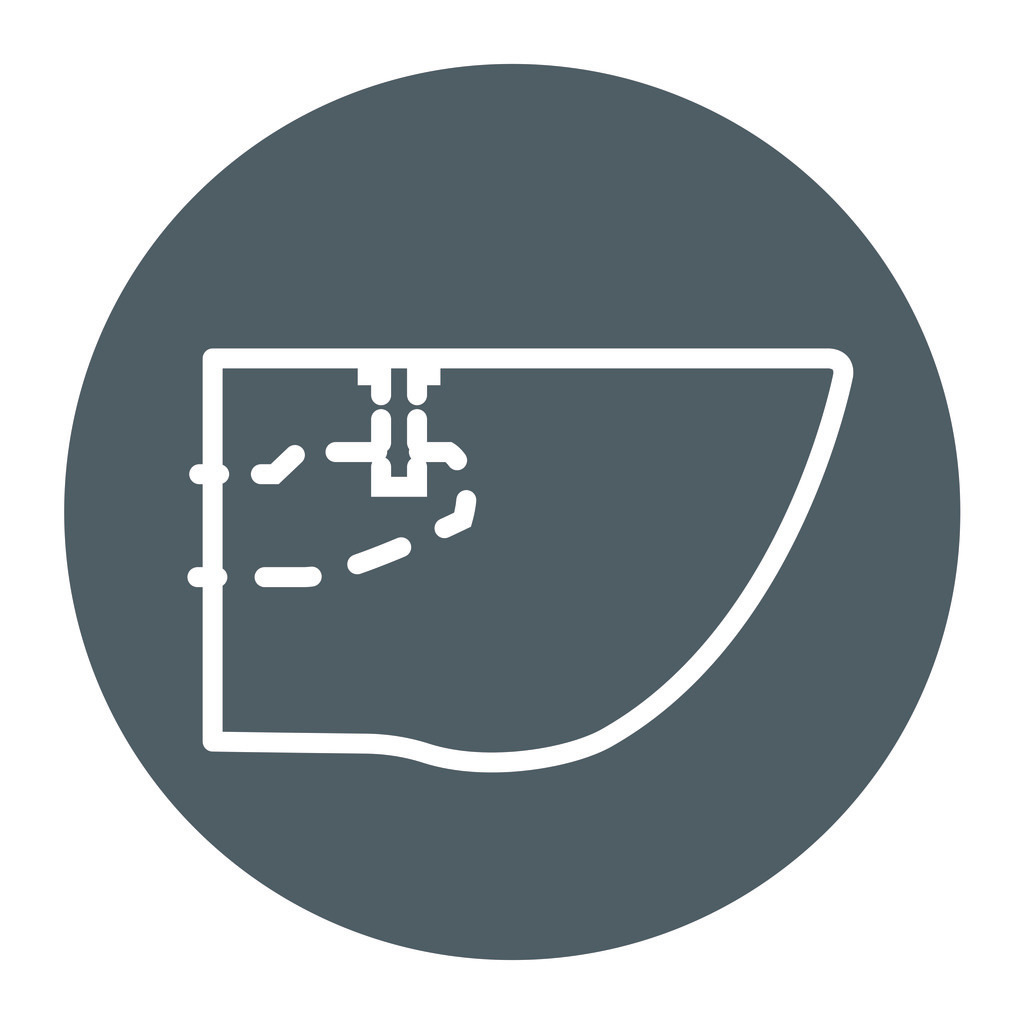

  • Suprafix: concealed wall fixture for neater installation and simpler cleaning
Suprafix Soft close Quick release Hygienic flush Ceramicplus-1684242901
Product information Product information Spare parts Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • ce_logo
Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Declaration of performance Product image Additional info Read more about Hygienic Flush
Read more about Ceramicplus
Assembling & Care

Designed for installation with our Triomont fixtures. Installed on bolts against wall with supplied Suprafix installation kit (bolts are supplied with the Triomontfixture). Bolt protrusion from finished wall must be 30-50 mm. See supplied installation instructions. According to the AMA the seat height should be 450 mm which corresponds to 250 mm distance (centre-centre) between the existing floor and the center of the drain.

Drawing Assembly instruction Care instruction
Other info
Deep - 350 mm
Length - 530 mm
Width - 350 mm
Features
  • Made of hygienic, durable and tightly vitrified sanitary porcelainOrganic design with easy-to-clean surfaces
  • Hygienic Flush with open flush rim for easier cleaning
  • Flushes all the way up to the rim for improved hygiene
  • Suprafix concealed wall fixture for neater installation and simpler cleaning
  • Suits our Triomont fixtures
  • Ceramicplus for quick, eco-friendly cleaning
  • Distance between bolts (centre to centre) 180 mm
  • Load tested to 400 kg
