Washbasin mixer Estetic

Washbasin mixer Estetic

  • RSK-nr: |
  • ART-nr: GB41218051 |
  • EAN-nr: 7393792230391
Chrome
  • Organic design idiom
  • Eco-stop, adjustable maximum flow
  • Available in chrome, Matt black and Matt white
AdjustableFlow
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • Complies with Safe Water installation requirements.
Specifications Product datasheet PDF with product image Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 70°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

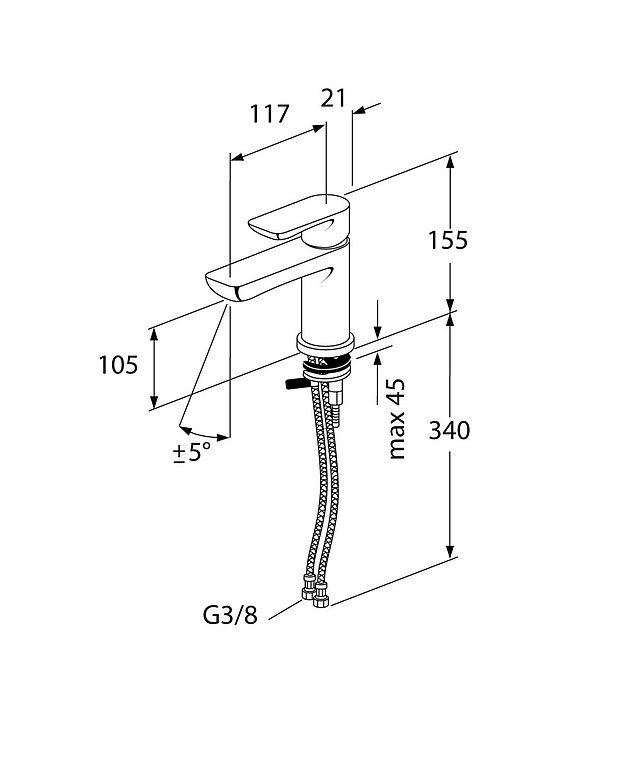

Drawing Assembly instruction Care instruction
Other info
Deep - 70 mm
Length - 225 mm
Width - 205 mm
Max. tap capacity (at 300 kPa): 0,13 l/s
Pressure loss with flow (0,1 l/s) 128 kPa
Features
  • Organic design idiom that matches bathrooms of all kinds
  • Available in chrome, Matt black and Matt white
  • All components made of food-approved materials
  • Eco-stop, adjustable maximum flow
  • Adjustable max. temperature for improved scald protection
  • Ceramic seal for drip-free operation and long service life
  • Type approved flexible water connection for easier installation
  • Backflow protection in accordance with SS-EN 1717 [AA]
