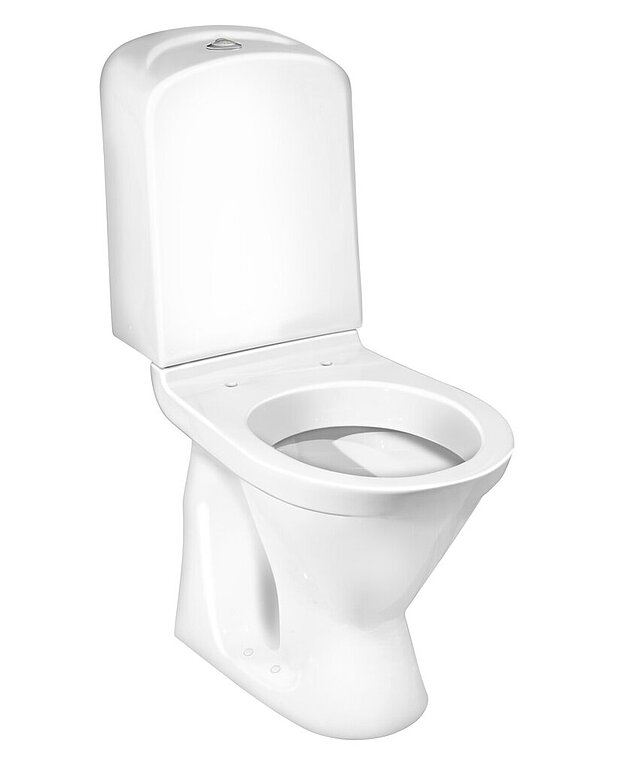

Toilet Nordic³ 3510 - hidden P-trap

Toilet Nordic³ 3510 - hidden P-trap

  • RSK-nr: |
  • ART-nr: GB113510301203 |
  • EAN-nr: 7391530066837
Dual flush 6/3L, without seat
  • Functional design with standard Scandinavian dimensions
  • Full-coverage condensation-free flush tank
Product information Product information Spare parts Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • ce_logo
  • CE approved, SS-EN 33 dimensioning and SS-EN 997 function
Specifications Product datasheet BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Declaration of performance Product image Flow diagram
Assembling & Care

Screwed to the floor with four screws. Alternative mounting on floor with glue. Caps for screws and white plugs for screw holes for gluing included. The P-trap makes it possible to connect the waste pipe to floor, straight against the wall, or to the side at any angle (must be less than 90 degrees). See included installation guide.

Drawing Assembly instruction Care instruction
Other info
Deep - 860 mm
Length - 660 mm
Width - 350 mm
Features
  • Made from hygienic, durable and densely sintered sanitary wareFunctional design with standard Scandinavian dimensions
  • Glazed under the flush edge for simplified cleaning
  • Factory-set dual flush 3/6 L
  • Seat height 420 mm
  • Full-coverage, condensation-free tank
  • Quiet refill
  • Can be fitted with armrest and care seat for improved accessibility
  • Mounting to floor with four screws or adhesive installation
