Product information

Standards & Approvals

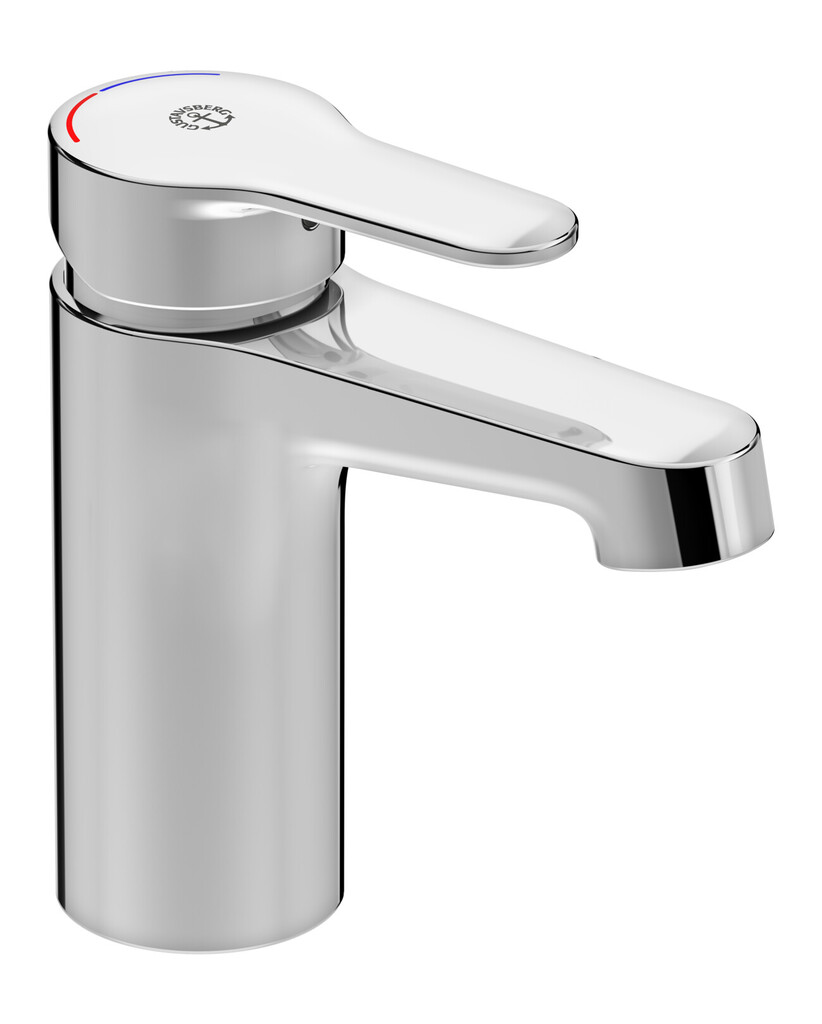

Specifications Product datasheet PDF with product image Product image Flow diagram

Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 70°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

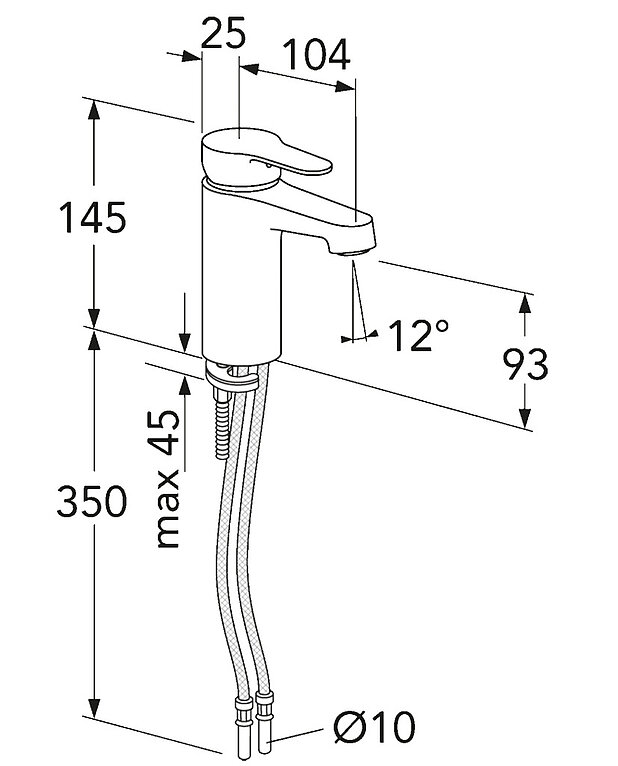

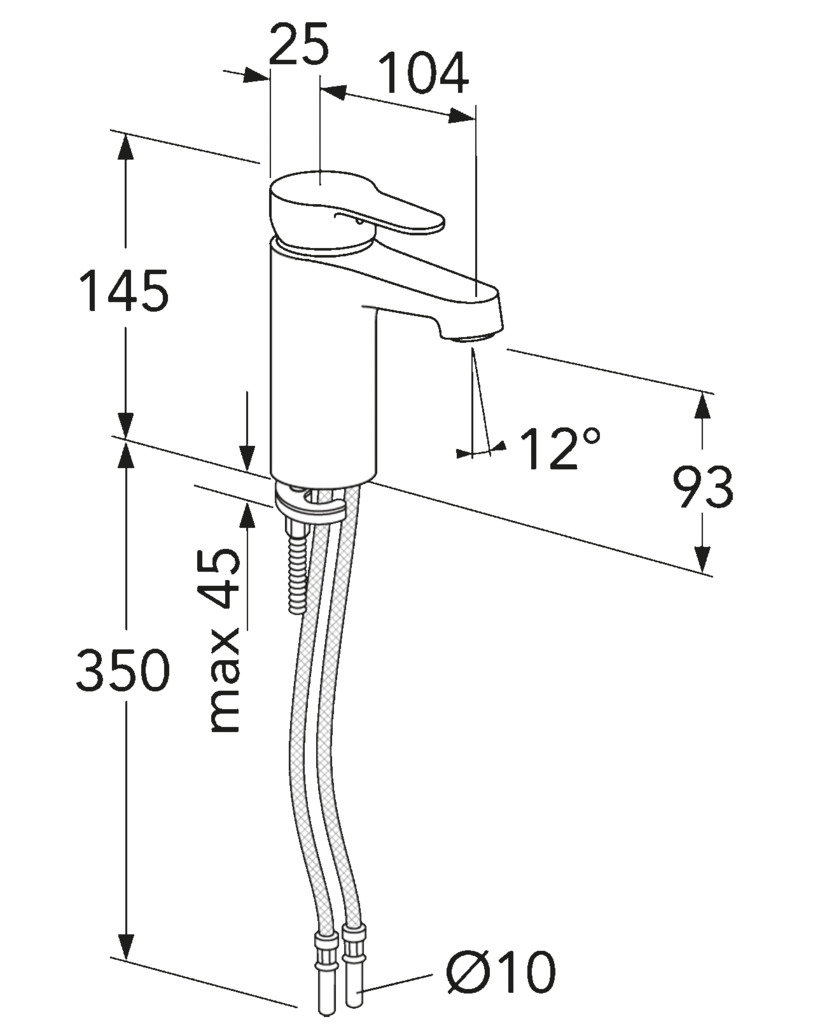

Drawing Assembly instruction

Other info

Deep - 70 mm

Length - 225 mm

Width - 205 mm

Max. tap capacity (at 300 kPa): 0,14 l/s

Pressure loss with flow (0,1 l/s) 156 kPa

Features

Modern design by PropellerHidden aerator with coin slot grip for easy cleaning
Tactile feel in the lever
Lever with clear color marking for hot and cold water
Adjustable max temperature for increased scald protection
Ceramic cartridge ensures non-drip operation and longevity
Type approved flexible water connection for easier installation
Backflow protection in accordance with SS-EN 1717 [AA]
