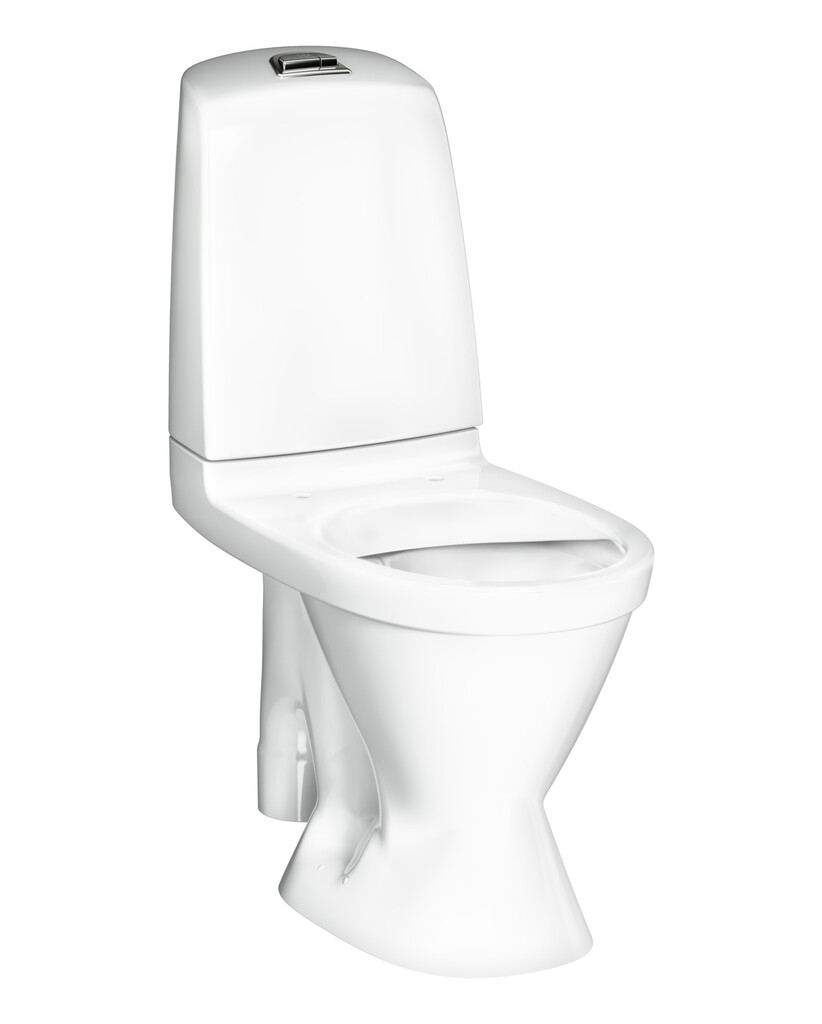

Toilet Nautic 1591 - open S-trap, large footprint, Hygienic Flush

RSK-nr: |
ART-nr: GB1115912R1205 |
EAN-nr: 7391530068985

Dual flush 4/2L, without seat, C+.

Ceramicplus for quick and easy cleaning
With open flush edge for simplified cleaning
Large footprint: covers marks left by old toilets

Product information Product information Spare parts Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals

2021:1
S-P-04161

CE approved, SS-EN 33 dimensioning and SS-EN 997 function

Specifications Product datasheet BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Declaration of performance Product image Flow diagram Additional info Read more about Hygienic Flush
Read users´ reviews

Assembling & Care

Floor mounting with four stainless steel screws and plastic caps. The rounded cistern and the small outer dimensions makes it suitable for corner installations. Intended primarily as a replacement model during renovation without stack and/or floor replacement. The large footprint covers marks left on the floor by the old toilet. Please refer to the installation manual. Fittings included.

Drawing Assembly instruction Care instruction

Packaging information

Length : 680 mm | Width : 360 mm | Height : 940 mm

Weight : 32 kg

Quantity in the package : 1

For product specific measurement, see drawing in the carousel.

Technical information

CO2 Footprint : 74.33 kg

Other info

Ballcock with adjustable connection R1/2´ exterior metal threads. The bottom valve has a button-operated half and full flush (dual flush). Factory set to 2.6/4.0L, or with a button-operated bottom valve for single flush set for 4 or 6 litres.

Features

Made from hygienic, durable and densely sintered sanitary wareEasy-to-clean and minimalistic design
Glazed under the flush edge for simplified cleaning
Factory set dual flush 2.6/4L
Flush volume adjustable up to 6L
Seat height 420 mm
The large footprint covers marks left by old toilet
Full-coverage, condensation-free cistern
Quiet refilling
Can be combined with armrest and care seat for improved accessibility
With open, glazed flush edge for simplified cleaning
Flushes all the way up to the rim for improved hygiene
Ceramicplus for quick and easy cleaning
Adjustable water connection R1/2´ for flexible installation
Mounting to floor with four screws or adhesive installation
Suitable for corner installation
