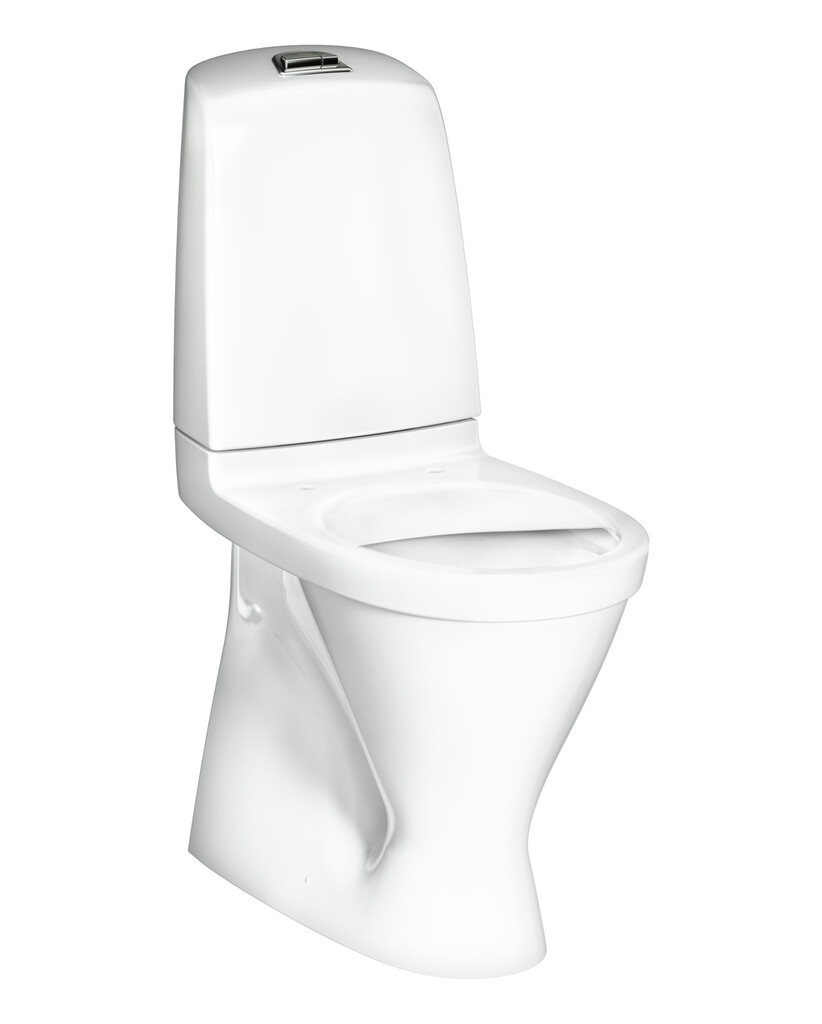

Toilet Nautic 1546 - S-trap, high model, Hygienic Flush

Toilet Nautic 1546 - S-trap, high model, Hygienic Flush

  • RSK-nr: |
  • ART-nr: GB1115462R1205 |
  • EAN-nr: 7391530067490
Dual flush 4/2L, without seat, C+.
  • Ceramicplus for quick and easy cleaning
  • With open flush edge for simplified cleaning
  • Elevated seat height for better comfort
Hygienic flush Ceramicplus-1684242901 No room for dirt
Product information Product information Spare parts Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • CE approved, SS-EN 33 dimensioning and SS-EN 997 function
Specifications Product datasheet BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Declaration of performance Product image Flow diagram Additional info Read more about Hygienic Flush
Read users´ reviews
Assembling & Care

Floor mounting with four stainless steel screws and plastic caps. Or floor mounting with glue. The rounded cistern and the small outer dimensions makes it suitable for corner installations. Please refer to the installation manual. Fittings included.

Drawing Assembly instruction Care instruction
Packaging information
Length : 680 mm | Width : 360 mm | Height : 980 mm
Weight : 31 kg
Quantity in the package : 1

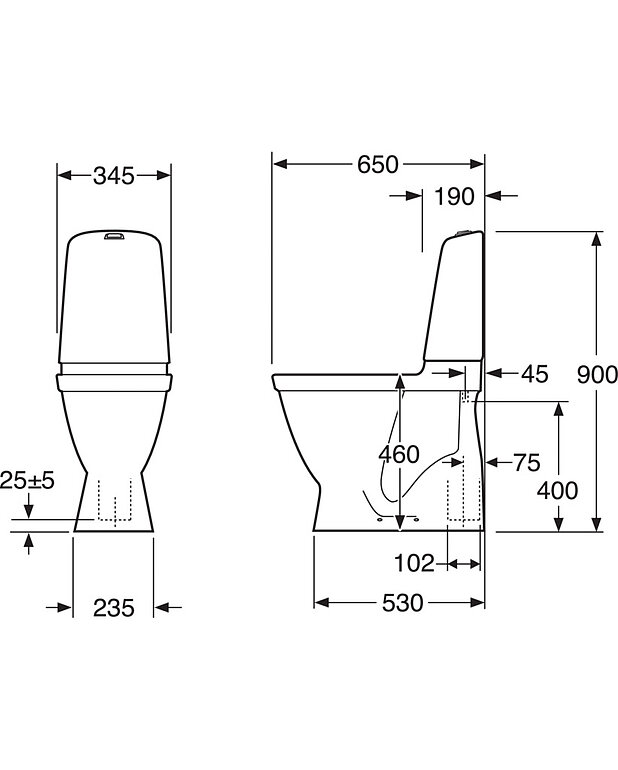

For product specific measurement, see drawing in the carousel.

Technical information
  • CO2 Footprint : 71.93 kg
Other info

Ballcock with adjustable connection R1/2´ exterior metal threads. The bottom valve has a button-operated half and full flush (dual flush). Factory set to 2.6/4.0L, or with a button-operated bottom valve for single flush set for 4 or 6 litres.

Features
  • Made from hygienic, durable and densely sintered sanitary wareEasy-to-clean and minimalistic design
  • Glazed under the flush edge for simplified cleaning
  • Factory set dual flush 2.6/4L
  • Flush volume adjustable up to 6L
  • Elevated seat height compared to other models, 460mm
  • Full-coverage, condensation-free cistern
  • Quiet refilling
  • Can be combined with armrest and care seat for improved accessibility
  • Several seat options in two different colours, white or black
  • With open, glazed flush edge for simplified cleaning
  • Flushes all the way up to the rim for improved hygiene
  • Ceramicplus for quick and easy cleaning
  • Adjustable water connection R1/2´ for flexible installation
  • Mounting to floor with four screws or adhesive installation
  • Suitable for corner installation
