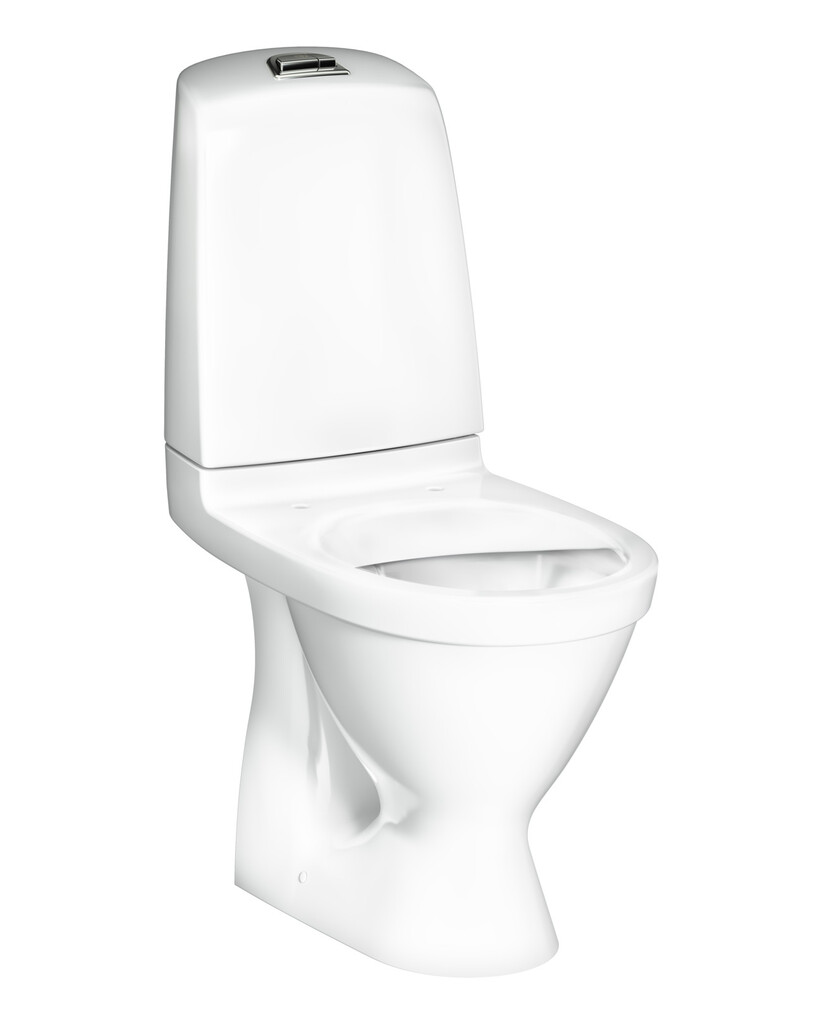

Toilet Nautic 1510 - hidden P-trap, Hygienic Flush

Toilet Nautic 1510 - hidden P-trap, Hygienic Flush

  • RSK-nr: |
  • ART-nr: GB111510201205 |
  • EAN-nr: 7391530069173
Dual flush 4/2L, without seat.
  • Easy-to-clean and minimalistic design
  • With open flush edge for simplified cleaning
  • Full-coverage condensation-free flush tank
Hygienic flush No room for dirt
Product information Product information Spare parts Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • ce_logo
  • CE approved, SS-EN 33 dimensioning and SS-EN 997 function
Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Declaration of performance Product image Flow diagram Additional info Read more about Hygienic Flush
Read users´ reviews
Assembling & Care

Floor mounting with included bracket and two screws. Or floor mounting with glue. Caps for screws and white plugs for screw holes for gluing included. The rounded cistern and the small outer dimensions makes it suitable for corner installations. The P-trap makes it possible to connect the waste pipe to the floor, straight against the wall, or to the side at any angle (must be less than 90 degrees). Please refer to the installation manual. Fittings included.

Drawing Assembly instruction Care instruction
Other info

Ballcock with adjustable connection R1/2´ exterior metal threads. The bottom valve has a button-operated half and full flush (dual flush). Factory set to 2.6/4.0L, or with a button-operated bottom valve for single flush set for 4 or 6 litres.

Deep -
Length -
Width -
Features
  • Made from hygienic, durable and densely sintered sanitary wareEasy-to-clean and minimalistic design
  • Glazed under the flush edge for simplified cleaning
  • Factory set dual flush 2.6/4L
  • Flush volume adjustable up to 6L
  • Seat height: 420mm
  • Full-coverage, condensation-free cistern
  • Quiet refilling
  • Can be combined with armrest and care seat for improved accessibility
  • Several seat options in two different colours, white or black
  • With open, glazed flush edge for simplified cleaning
  • Flushes all the way up to the rim for improved hygiene
  • The P-trap makes it possible to connect the waste pipe to the floor, straight against the wall, or to the side at any angle
  • Adjustable water connection R1/2´ for flexible installation
  • Concealed mounting to floor with two screws or adhesive installation
  • Floor bracket for easier installation
  • Suitable for corner installation
