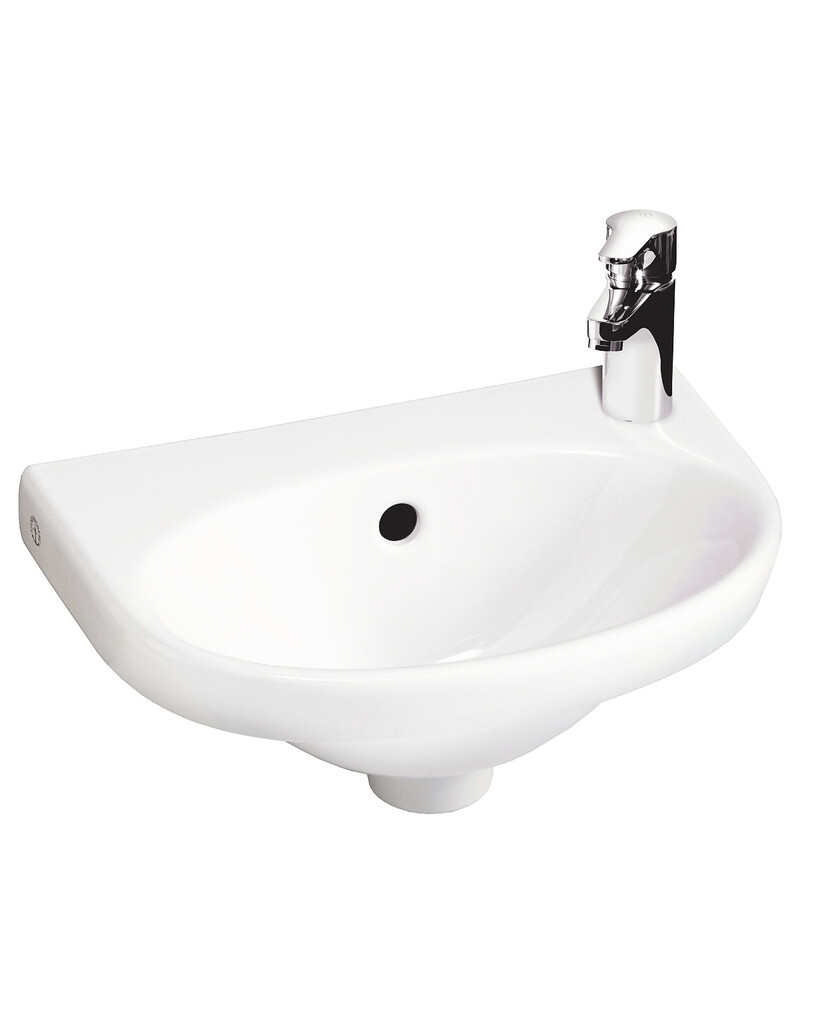

Small bathroom sink Nautic 5540 - for bolt mounting 40 cm

Easy-to-clean and minimalist design

Small bathroom sink Nautic 5540 - for bolt mounting 40 cm

Faucet hole on right

  • Easy-to-clean and minimalist design
  • Small model, suitable for tight spaces

Article number: 55409R01
EAN-number: 4047289973362

Remove from listADD TO WISHLISTLoading...

FIND A RETAILER

PRODUCT INFORMATION

Specifications

Product datasheet

Product datasheet with product image

BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa)

BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) (1)

Flow chart

Product image

Declaration of performance

Assembling & Care

Mounted directly on wall with bolts. Bolt projection from finished wall must be 50 ± 2 mm. Fasteners included.

Assembly Instruction

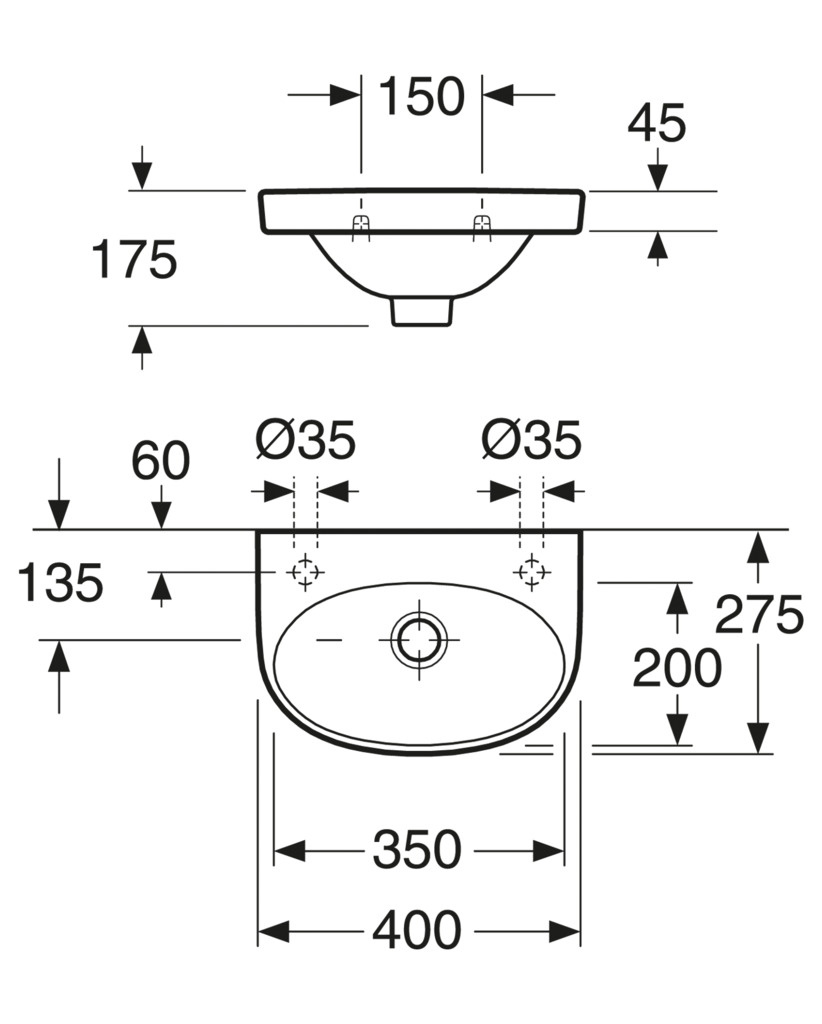

Drawing

Standards & Approvals

  • ce_logo
  • The product follows AMA recommendations & SS-EN 31
  • Complies with Safe Water installation requirements
  • CE approved

Other info

With faucet hole on right or left.

  • Deep - 175 mm
  • Length - 275 mm
  • Width - 400 mm

Features

  • Made from hygienic, durable and densely sintered sanitary ware
  • Easy-to-clean and minimalist design with elliptical basin shape
  • Small model, suitable for tight spaces
  • For bolt mounting, nuts and bolts included
  • Bolt spacing c-c 150 mm
