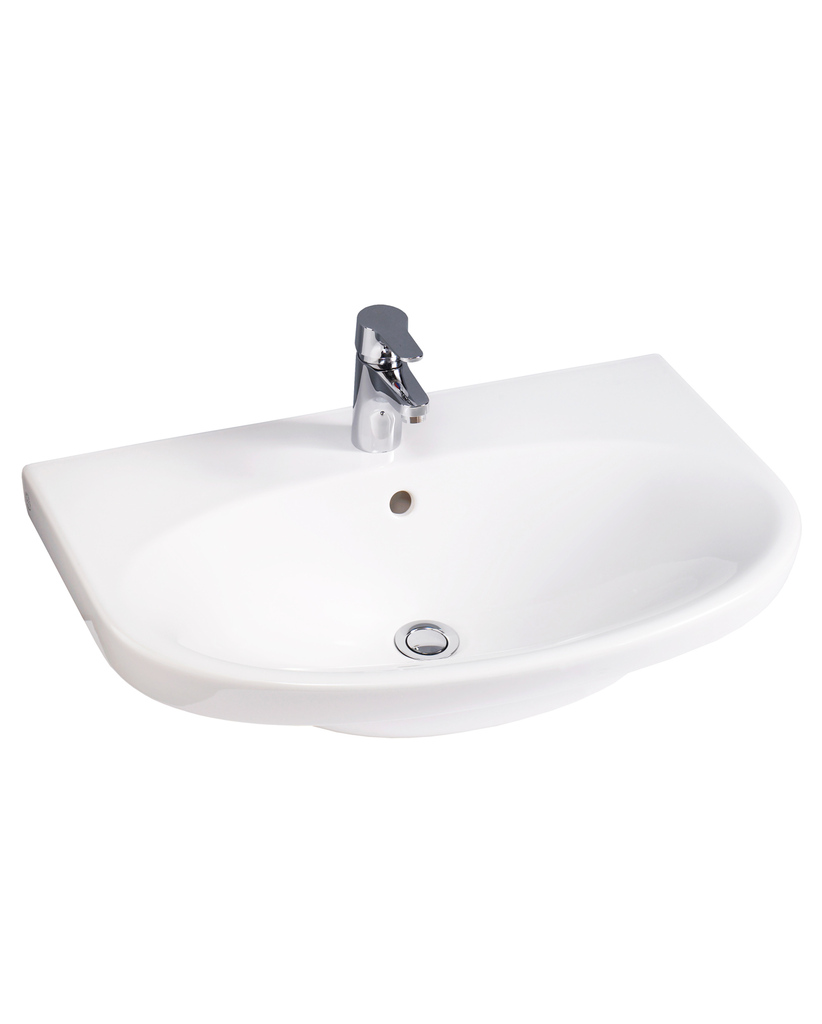

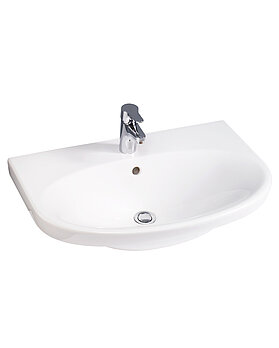

Bathroom sink Nautic 5570 - for bolt/bracket mounting 70 cm
- RSK-nr: |
- ART-nr: 55709901 |
- EAN-nr: 4047289973539
- Easy-to-clean and minimalist design
- Elliptical sink with generous counter spaces
- For bolt or bracket mounting
Bathroom sink Nautic 5570 - for bolt/bracket mounting 70 cm
Product information
Standards & Approvals
- The product follows AMA recommendations & SS-EN 31
- Complies with Safe Water installation requirements
- CE approved
Specifications
Product datasheet
PDF with product image
BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa)
Declaration of performance
Product image
Assembling & Care
Mounted with flexible bracket dimensions, bracket length 260 mm. Bolt projection from finished wall must be 50 ± 2 mm. Brackets and other fasteners not included.

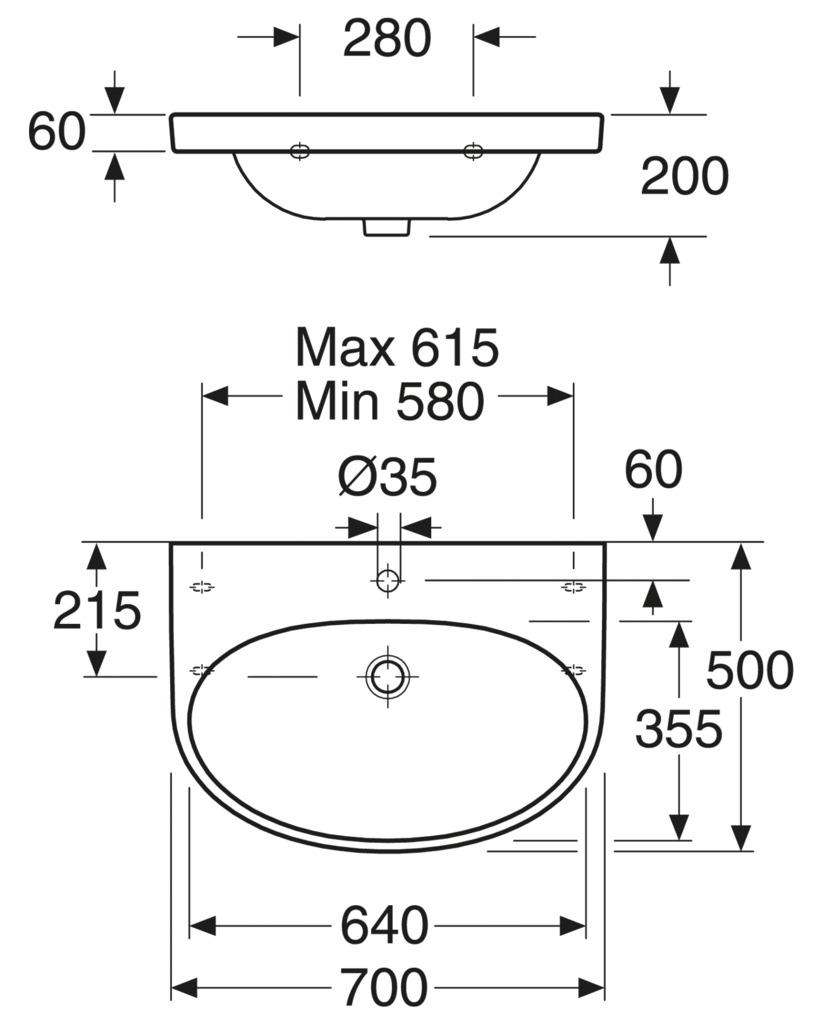

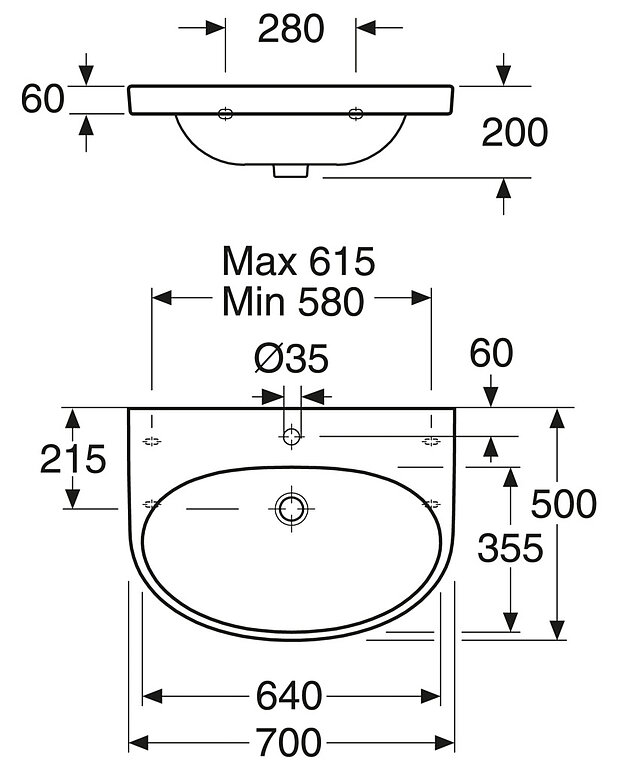

Drawing Assembly instruction Care instruction
Other info
Deep
- 195 mm
Length
- 500 mm
Width
- 700 mm
The Nautic series is our latest and most extensive product series, with models covering nearly every need. The elliptical design has a restrained beauty, functional and space-saving, that imparts a light impression. Standard mounting and sink can be mounted
Features
- Made from hygienic, durable and densely sintered sanitary wareEasy-to-clean and minimalist design
- Elliptical sink shape with generous counter space
- For bolt or bracket mounting, nuts and bolts included
Inspired
