Wash trough mixer New Nautic - Singel lever

Wash trough mixer New Nautic - Singel lever

  • RSK-nr: |
  • ART-nr: GB41212274 |
  • EAN-nr: 7391530081724
Vacuum valve, 150 c-c.

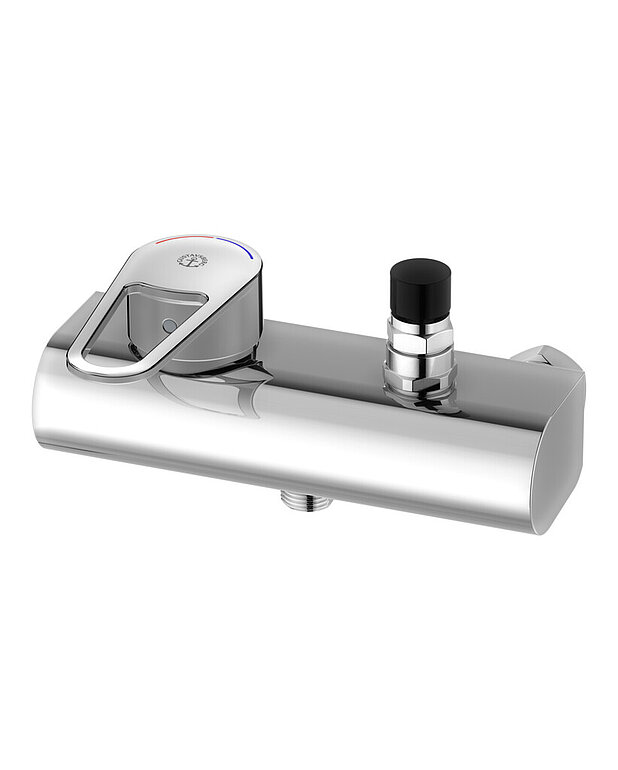

  • Grip-friendly lever with clear color marking for hot and cold water
  • With vacuum valve and check valves in the inlets
  • Eco-stop, adjustable maximum flow limitation
Product information Product information Spare parts Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet PDF with product image Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

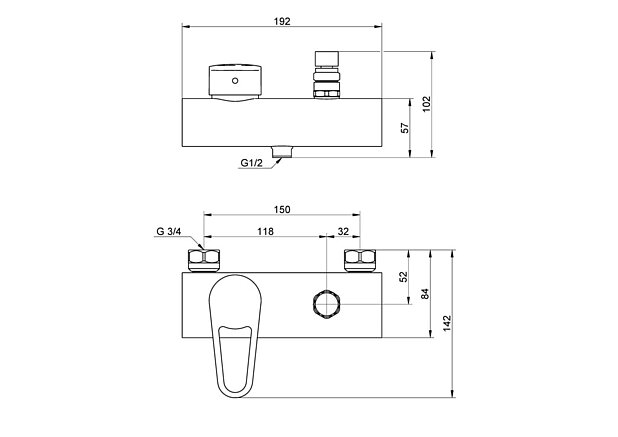

Drawing Assembly instruction Care instruction
Other info
Deep - 90 mm
Length - 192 mm
Width - 143 mm
Max. tap capacity (at 300 kPa): 0,37 l/s
Pressure loss with flow (0,1 l/s) 22 kPa
Features
  • With vacuum valve and check valves in the inletsEasy grip lever with clear colour marking for hot and cold
  • Soft move, technology for smooth and precise handling
  • Eco-stop, adjustable maximum flow
  • Adjustable max temperature for increased scald protection
  • Ceramic cartridge ensures non-drip operation and longevity
  • Type-approved check valve in the shower connection
  • Backflow protection in accordance with SS-EN 1717 [HD]
  • Can be functionally adapted with elongated lever
