Product information

Standards & Approvals

Specifications Product datasheet PDF with product image Product image Flow diagram

Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

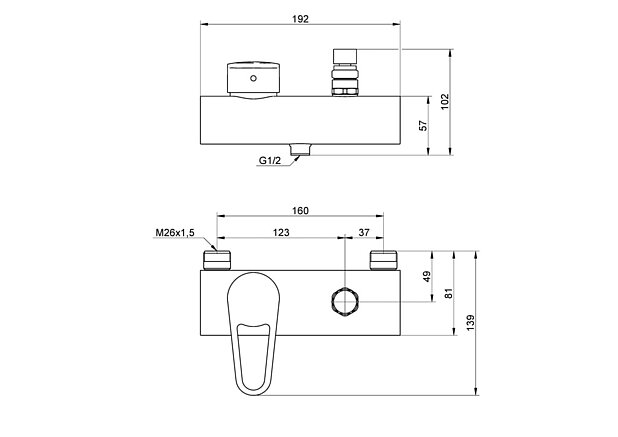

Drawing Assembly instruction Care instruction

Other info

Deep - 90 mm

Length - 192 mm

Width - 143 mm

Max. tap capacity (at 300 kPa): 0,37 l/s

Pressure loss with flow (0,1 l/s) 22 kPa

Features

Contains less than 0.1% leadEasy grip lever with clear colour marking for hot and cold
Soft move, technology for smooth and precise handling
Eco-stop, adjustable maximum flow
Adjustable max temperature for increased scald protection
Ceramic cartridge ensures non-drip operation and longevity
With vacuum valve and check valves in the inlets
Type-approved check valve in the shower connection
Backflow protection in accordance with SS-EN 1717 [HD]
Can be functionally adapted with elongated lever
