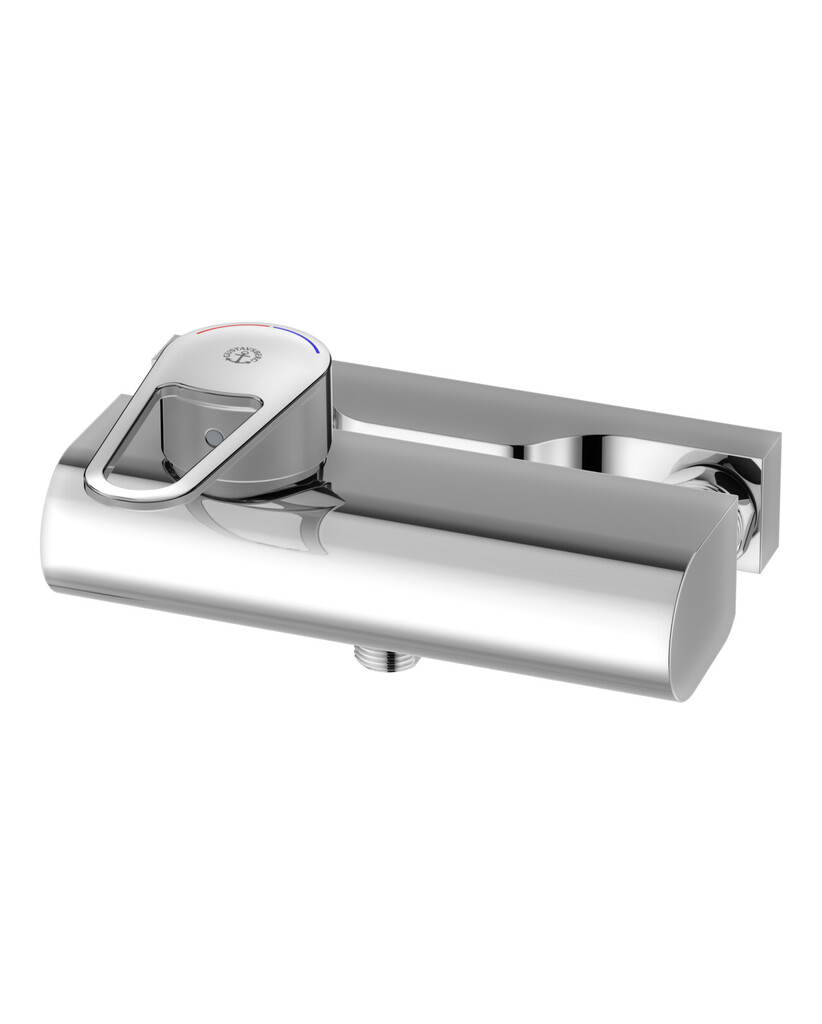

Shower mixer New Nautic - Single lever

Shower mixer New Nautic - Single lever

  • RSK-nr: |
  • ART-nr: GB41202114 |
  • EAN-nr: 7391530081793
Shower connection downwards, 40/160 c-c bracket.
  • Grip-friendly lever with clear color marking for hot and cold water
  • With vacuum valve and check valves in the inlets
  • Eco-stop, adjustable maximum flow limitation
Product information Product information Spare parts Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet PDF with product image Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

Drawing
Other info
Deep -
Length -
Width -
Max. tap capacity (at 300 kPa): 0,37 l/s
Pressure loss with flow (0,1 l/s) 22 kPa
Features
  • Grip-friendly lever with clear color marking for hot and cold waterSoft move, ceramic package with smooth and precise operation
  • Mixer bracket 40/160 c-c included
  • Eco-stop, adjustable maximum flow limitation
  • Adjustable maximum temperature for increased scalding protection
  • Ceramic seal for drip protection and long life
  • Type-approved non-return valve in the shower connection
  • Backflow protection according to SS-EN 1717 [EB]
  • Can be functionally adapted with extended lever
