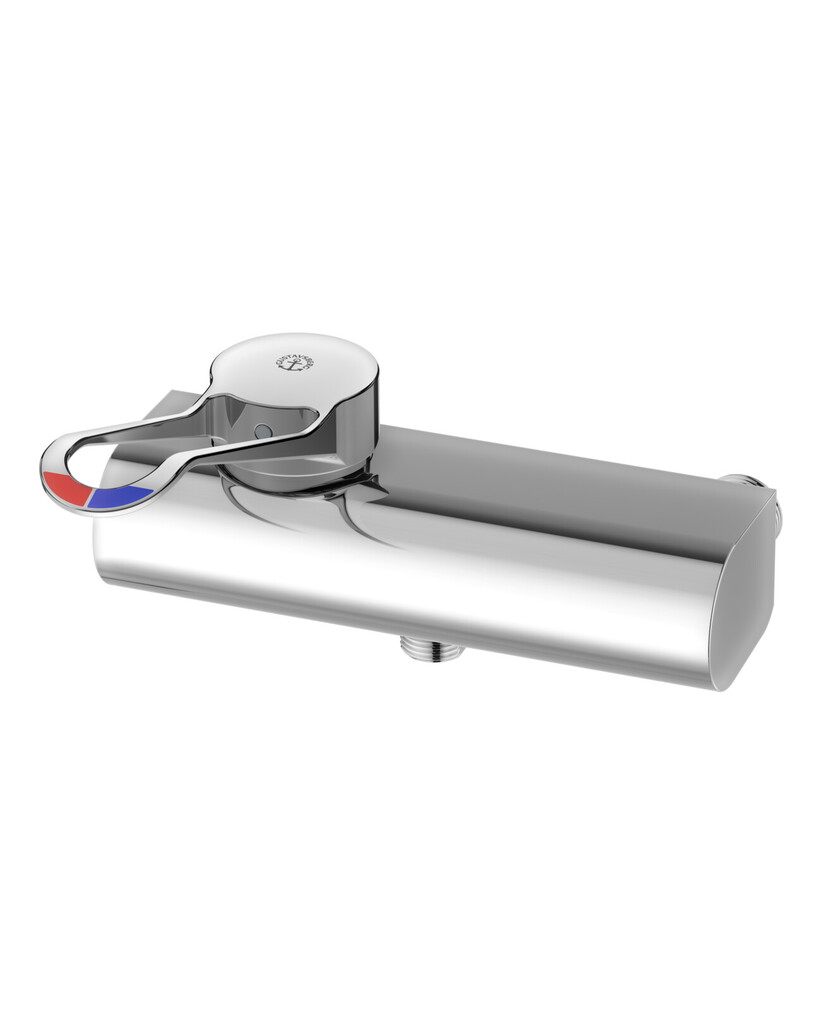

Shower mixer Care - Singel lever

Shower mixer Care - Singel lever

  • RSK-nr: |
  • ART-nr: GB41202014064 |
  • EAN-nr: 7391530081823
Lead free, connection down, 160 c-c
  • Elongated, grip-friendly lever with clear color marking for hot and cold water
  • Soft move, ceramic package with smooth and precise operation
  • Eco-stop, adjustable maximum flow limitation
Lead_free
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet PDF with product image Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

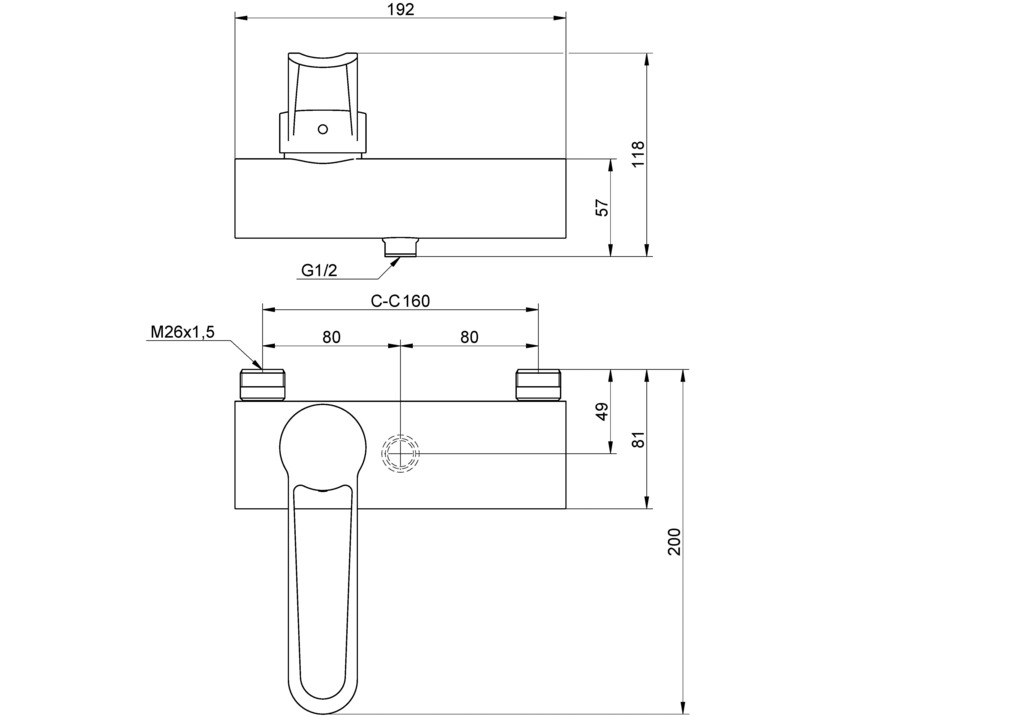

Drawing Care instruction
Other info
Deep - 90 mm
Length - 192 mm
Width - 143 mm
Max. tap capacity (at 300 kPa): 0,37 l/s
Pressure loss with flow (0,1 l/s) 22 kPa
Features
  • Contains less than 0.1% lead
  • Equipted with elongated lever
  • Soft move, technology for smooth and precise handling
  • Eco-stop, adjustable maximum flow
  • Adjustable max temperature for increased scald protection
  • Ceramic cartridge ensures non-drip operation and longevity
  • Type-approved non-return valves in the inlet
  • Backflow protection in accordance with SS-EN 1717 [EB]
