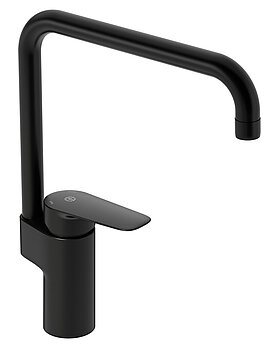

Kitchenmix DW Atlantic

Kitchenmix DW Atlantic

  • RSK-nr: |
  • ART-nr: GB41205098053 |
  • EAN-nr: 7391530087269
Lead free, black.
  • Energy class B, saves energy and water
  • Soft move, technology for smooth and precise handling
  • Cold-start, only cold water when the lever is in straight forward position
Cold_start Lead_free Eco_flow
Product information Product information Spare parts Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 70°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

Drawing Assembly instruction
Other info
Deep - 75 mm
Length - 440 mm
Width - 275 mm
Max. tap capacity (at 300 kPa): 0,12 l/s
Pressure loss with flow (0,1 l/s) 192 kPa
Features
  • Design that makes cleaning of larger pots and buckets easierEnergy class B, saves energy and water
  • Contains less than 0.1% lead
  • Lever with clear color marking for hot and cold
  • Pivoting spout 110° (0° and 60° block included)
  • Eco-flow, for efficient water- and energy consumption
  • Cold-start, only cold water when the lever is in straight forward position
  • Soft move, technology for smooth and precise handling
  • Ceramic seal to prevent dripping and ensure a long service life
  • Smart inside, sustainable construction for future requirements
  • Adjustable max temperature for improved scald protection
  • All components made in food approved materials
  • Type-approved flexible water connection for simpler installation
  • Backflow protection in accordance with SS-EN 1717 [AA]
