Kitchen mixer Atlantic - high spout

Kitchen mixer Atlantic - high spout

  • RSK-nr: |
  • ART-nr: GB41205098R |
  • EAN-nr: 7393792234863
Dishwasher shut-off, G3/8 connection
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet PDF with product image Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 70°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

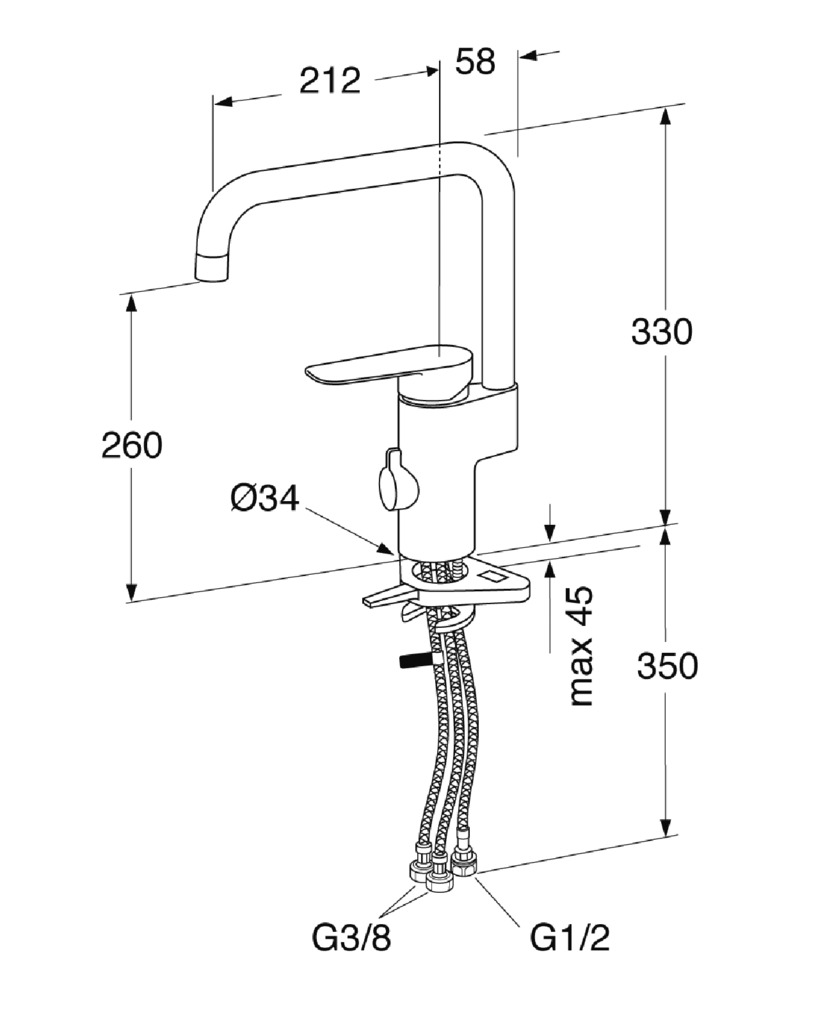

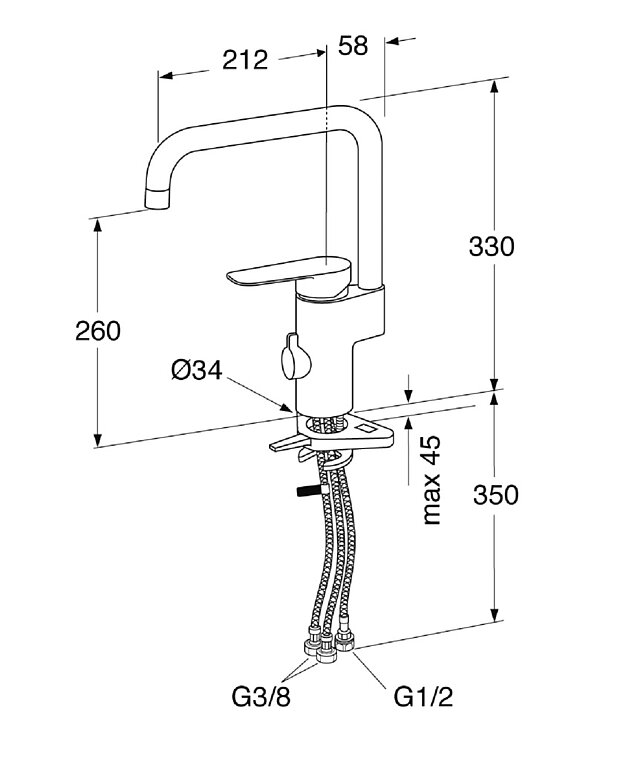

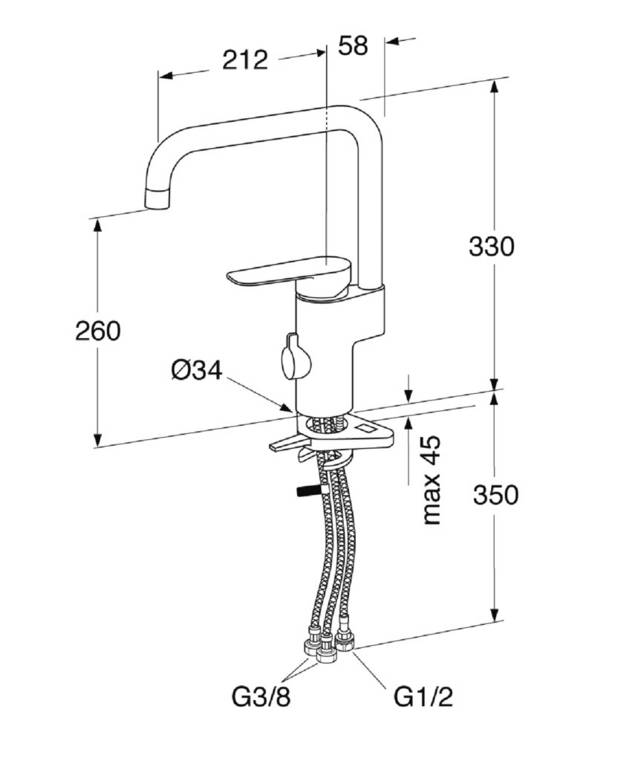

Drawing Assembly instruction
Other info
Deep - 75 mm
Length - 440 mm
Width - 275 mm
Max. tap capacity (at 300 kPa): 0,136 l/s
Pressure loss with flow (0,2 l/s) 652 kPa
Features
