Product information

Standards & Approvals

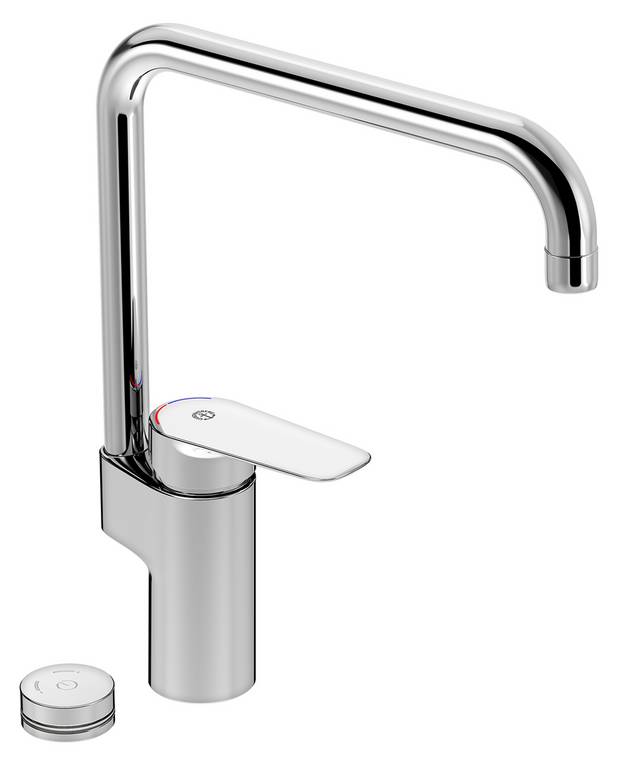

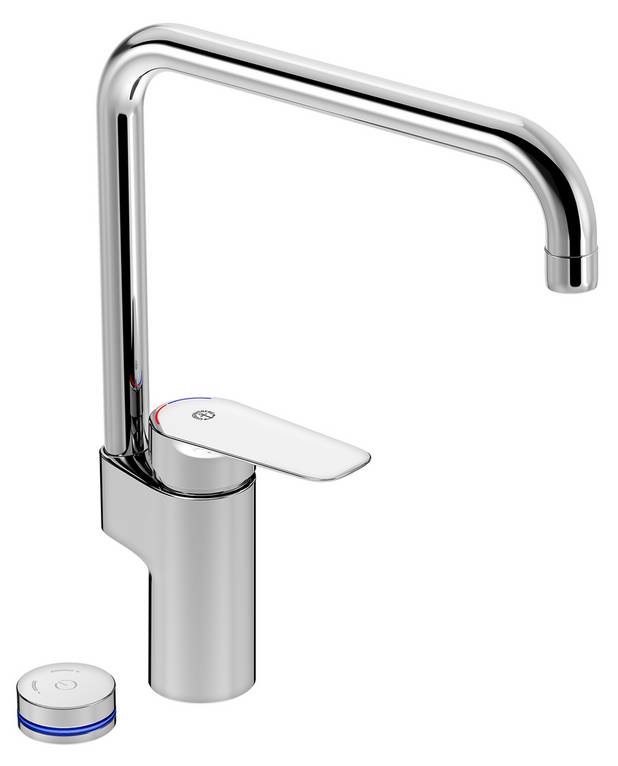

Specifications Product datasheet PDF with product image Product image Flow diagram

Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 70°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

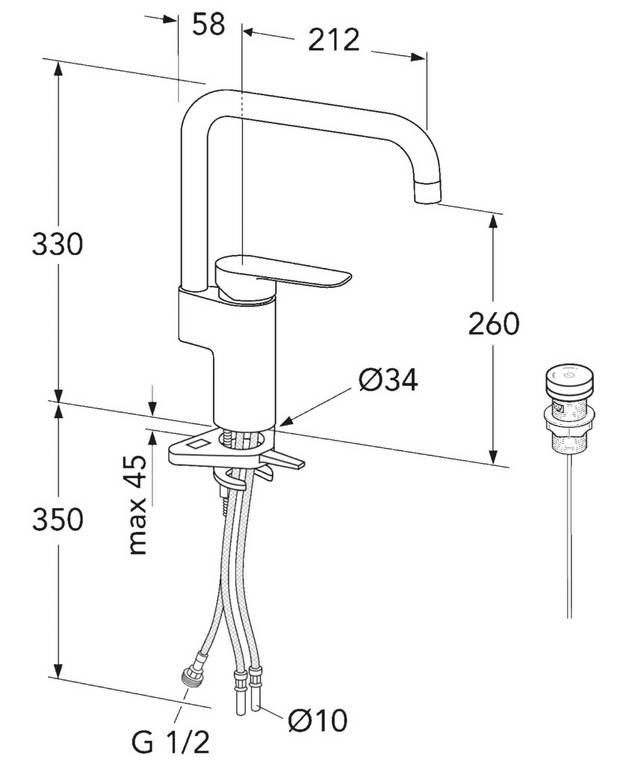

Drawing Assembly instruction

Other info

Deep - 75 mm

Length - 440 mm

Width - 275 mm

Max. tap capacity (at 300 kPa): 0,182 l/s

Pressure loss with flow (0,2 l/s) 363 kPa

Features

Works as a standard mixer manuallyFully digital with on / off, water flow and temperature regulation
Multi colored LED-light
No batteries (dependable)
Ceramic seals, long life and secure operation in all types of water (no risk that dirt or lime restricts operation)
Soft closing, reduces risk of water hammer from the valve
Design that makes cleaning of larger pots and buckets easier
Lever with clear color marking for hot and cold water
Pivoting spout 110° (0° and 60° block included)
Soft move, technology for smooth and precise handling
Ceramic seal to prevent dripping and ensure a long service life
Smart inside, sustainable construction for future requirements
Adjustable max temperature for improved scald protection
All components made in food approved materials
Type approved flexible water connection for easier installation
Backflow protection in accordance with SS-EN 1717 [AA]
