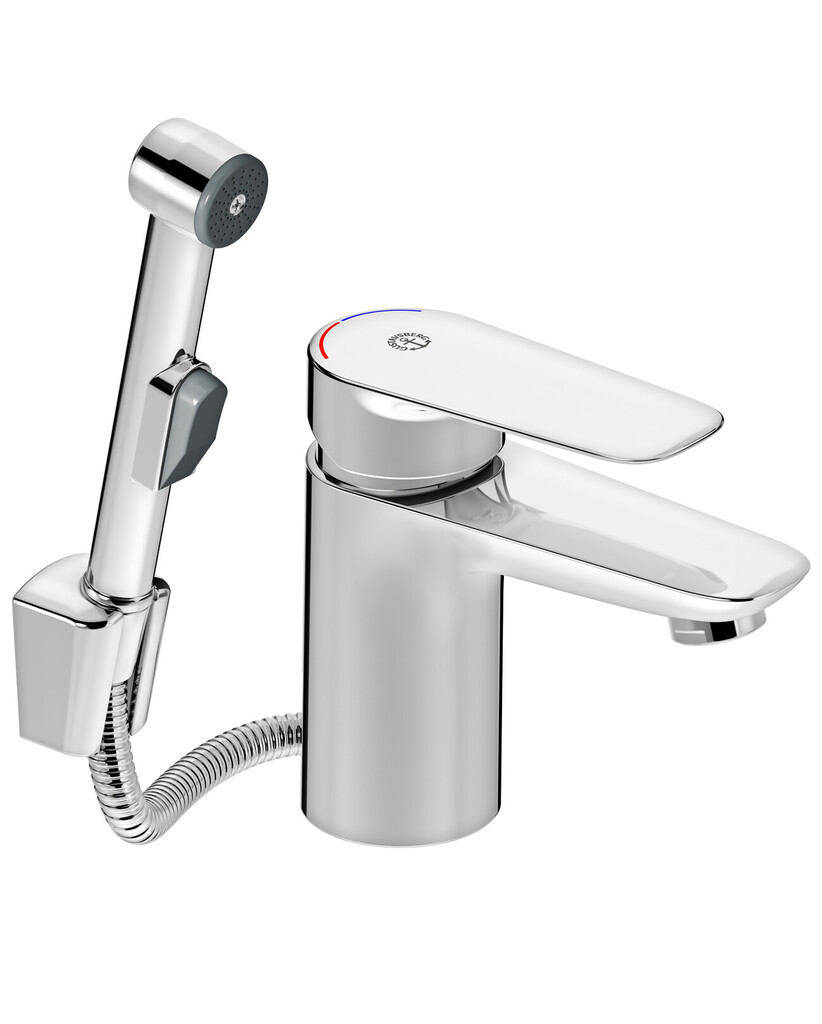

Washbasin mixer Atlantic

Washbasin mixer Atlantic

  • RSK-nr: |
  • ART-nr: GB41215147 |
  • EAN-nr: 7393792232364

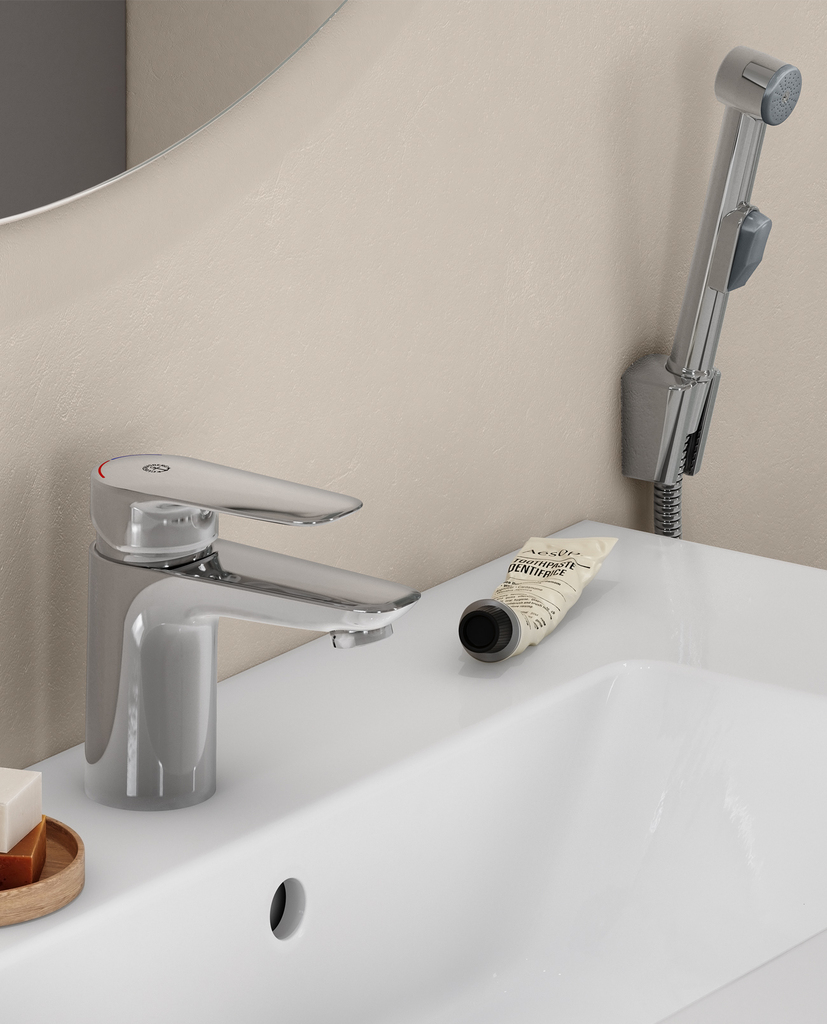

With side spray and wall bracket
  • Lever with clear color marking for hot and cold
  • Soft move, technology for smooth and precise handling
  • Adjustable max temperature for scald protection
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet PDF with product image Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 70°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

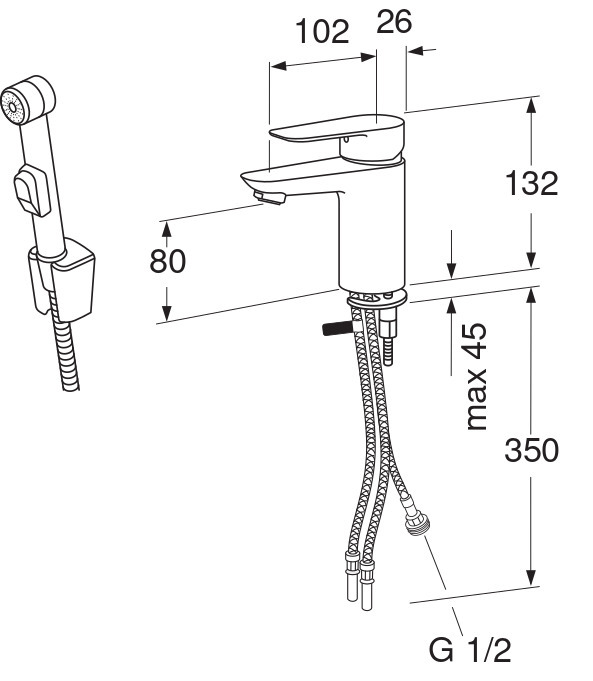

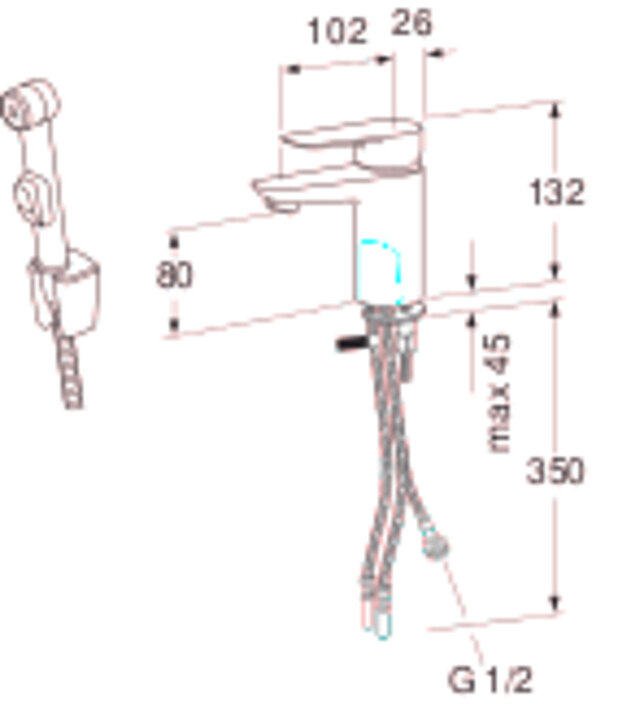

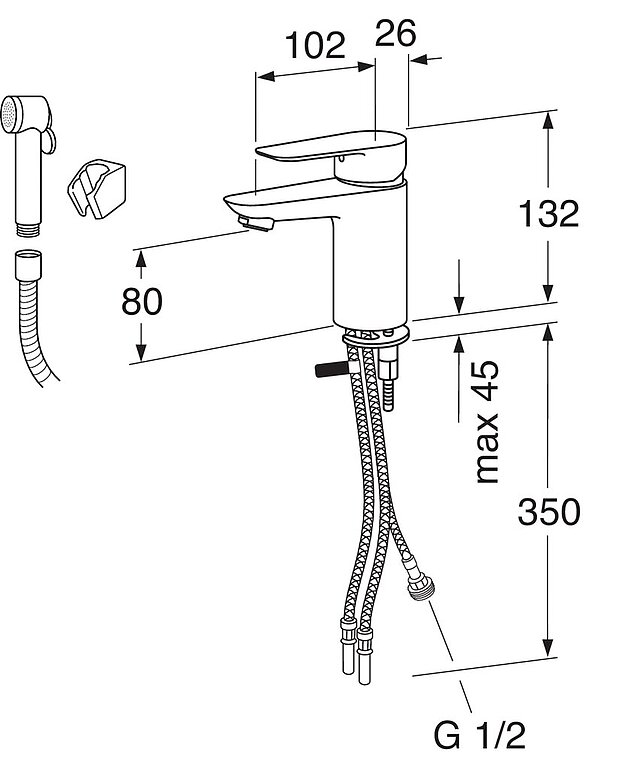

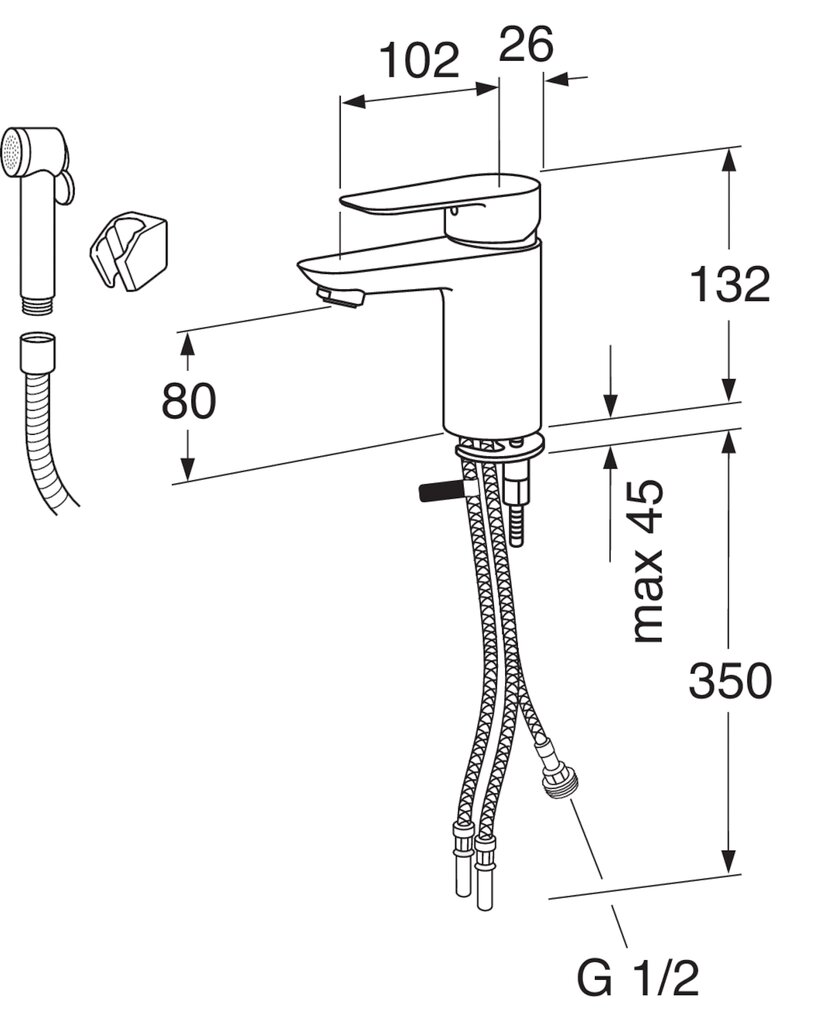

Drawing Assembly instruction
Other info
Deep - 75 mm
Length - 295 mm
Width - 285 mm
Max. tap capacity (at 300 kPa): 0,21 l/s
Pressure loss with flow (0,1 l/s) 68 kPa

Side spray GB41633860 33 / Shower hose GB636263 00 / Wall bracket GB41637575

Features
  • Lever with clear color marking for hot and cold
  • With side spray and wall holder
  • Soft move, technology for smooth and precise handling
  • Ceramic seal to prevent dripping and ensure a long service life
  • Smart inside, sustainable construction for future requirements
  • Adjustable max temperature for improved scald protection
  • All components made in food approved materials
  • Type-approved flexible water connection for simpler installation
  • Backflow protection in accordance with SS-EN 1717 [AA]
