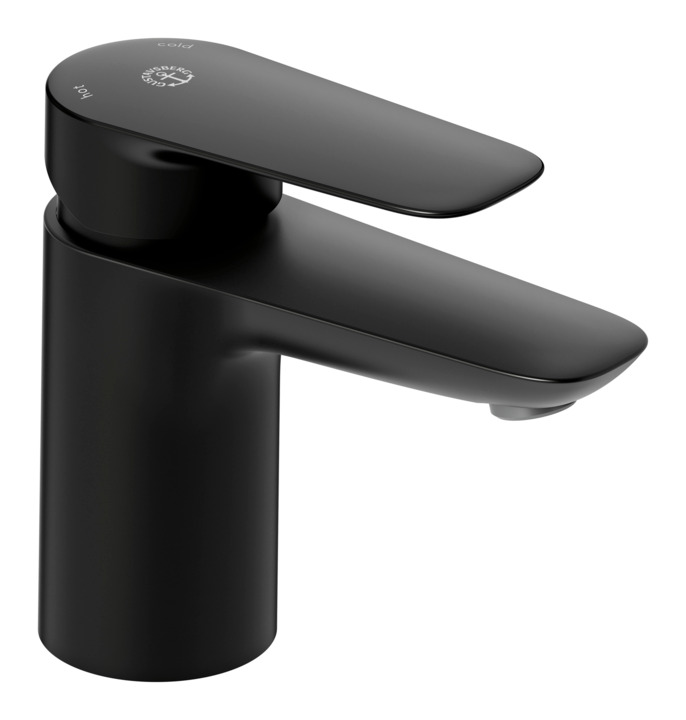

Washbasin mixer Atlantic

Washbasin mixer Atlantic

  • RSK-nr: |
  • ART-nr: GB4121504753 |
  • EAN-nr: 7391530084879
Matt black.
  • Lever with clear marking for hot and cold
  • Soft move, technology for smooth and precise handling
  • Adjustable max temperature for scald protection
AdjustableFlow Quick fit Smart_inside
Product information Product information Spare parts Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 70°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

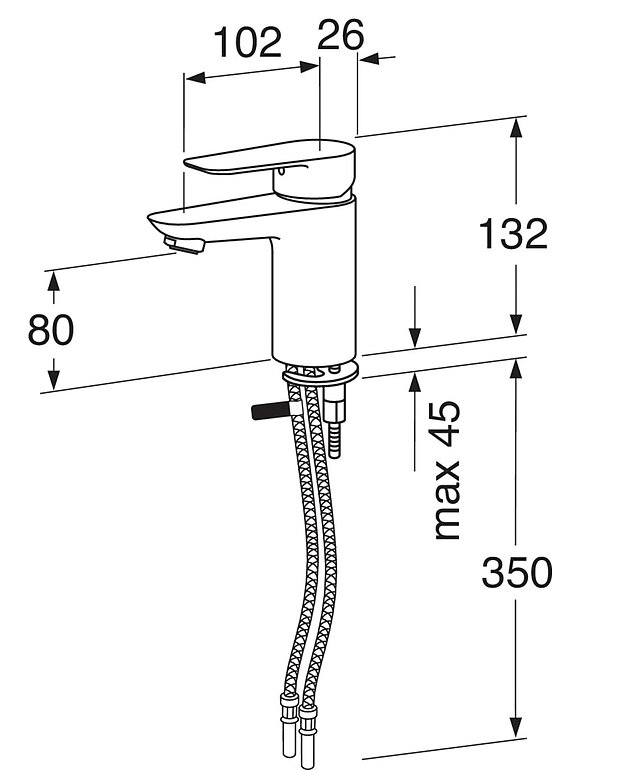

Drawing Assembly instruction
Other info
Deep - 70 mm
Length - 225 mm
Width - 205 mm
Max. tap capacity (at 300 kPa): 0,136 l/s
Pressure loss with flow (0,1 l/s) 163 kPa
Features
  • Lever with clear marking for hot and coldSoft move, technology for smooth and precise handling
  • Ceramic seal to prevent dripping and ensure a long service life
  • Smart inside, sustainable construction for future requirements
  • Adjustable max temperature for improved scald protection
  • All components made in food approved materials
  • Type-approved flexible water connection for simpler installation
  • Backflow protection in accordance with SS-EN 1717 [AA]
