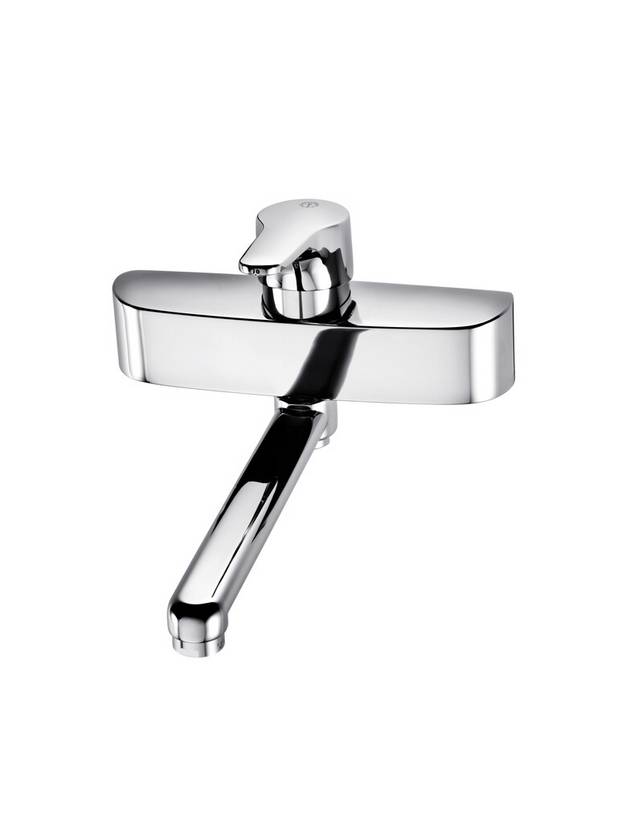

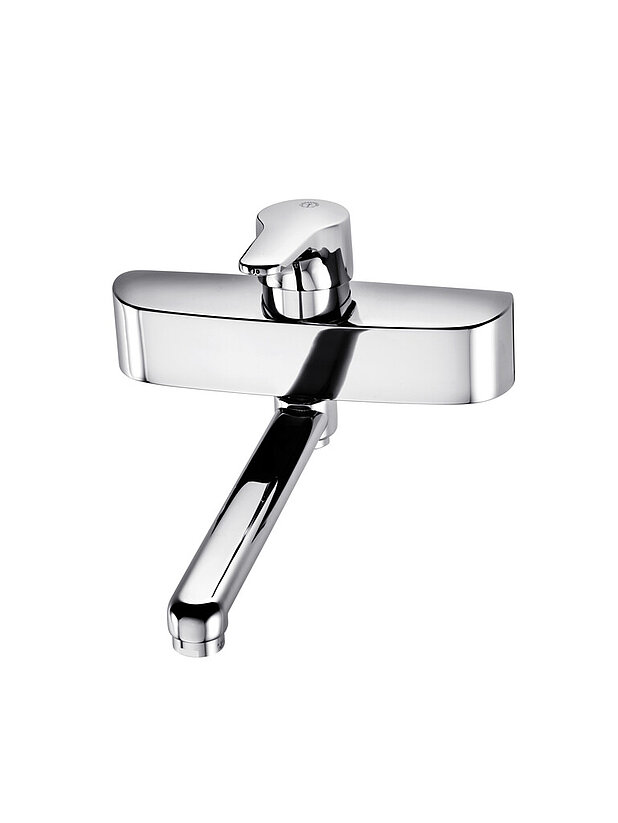

Bathroom sink faucet Nautic - wall mounted

Energy class B, saves energy and water

Bathroom sink faucet Nautic - wall mounted

150 mm spout, 150 c-c

  • Energy class B, saves energy and water
  • Adjustable comfort flow and comfort temperature
  • Plugged connections for extra water outlets

Article number: GB41214252
EAN-number: 7393792217866

Remove from listADD TO WISHLISTLoading...

FIND A RETAILER

PRODUCT INFORMATION

Specifications

Product datasheet

Product datasheet with product image

Flow chart

Product image

Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 70°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

Assembly Instruction

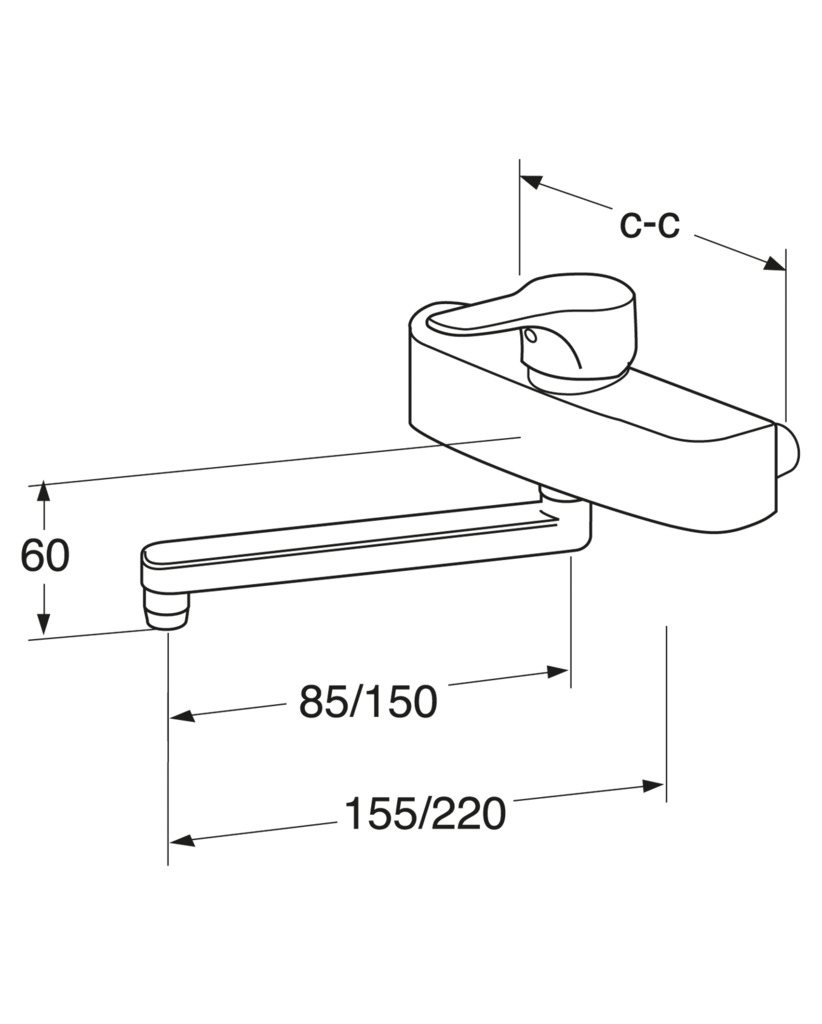

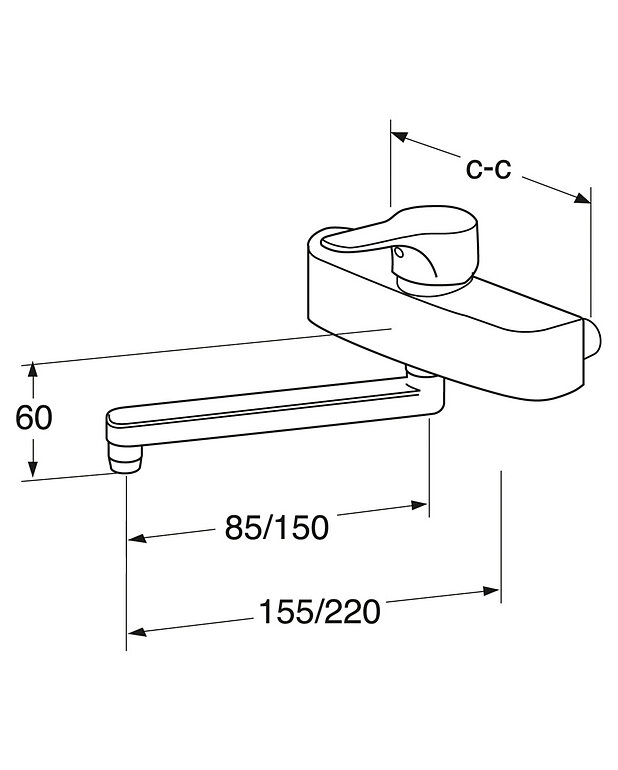

Drawing

Care instruction

Standards & Approvals

    • Complies with Safe Water installation requirementsEnergy class B, 1.86 kWh

    Other info

    • Deep - 115 mm
    • Length - 230 mm
    • Width - 185 mm

    Features

    • Timeless and harmonic design
    • Energy class B, saves energy and water
    • All components made with food-safe materials
    • 150 mm fixed spout
    • Plugged connections for extra water outlets cold water and warm water
    • Adjustable comfort flow (water-saving)
    • Adjustable comfort temperature (energy-saving)
    • Spring return to comfort position (water-saving)
    • Adjustable max temperature for increased scald protection
    • Ceramic cartridge ensures non-drip operation and longevity
    • Backflow protection in accordance with SS-EN 1717 [AA]
