Product information

Standards & Approvals

The product follows AMA recommendations, SS-EN 33 dimensioning and SS-EN 997 functionComplies with Safe Water installation requirementsCE approved

Specifications Product datasheet Construction declaration Declaration of performance Product image Flow diagram Additional info Read more about Hygienic Flush
Read users´ reviews

Assembling & Care

Mounted with bolts directly on the wall. Washers, bushings and nuts included (M12) but not bolts. Bolt projection from finished wall must be 60 ± 2mm. Rubber bellows for waste pipe connection included. See supplied installation instructions and mounting kit for each toilet. Triomont fixture for wall hung toilet and bidet RSK 382 57 56, is recommended for installation on weak walls. According to the AMA the seat height should be 450 mm which corresponds to 270 mm distance (centre-centre) between the existing floor and the centre of the drain.

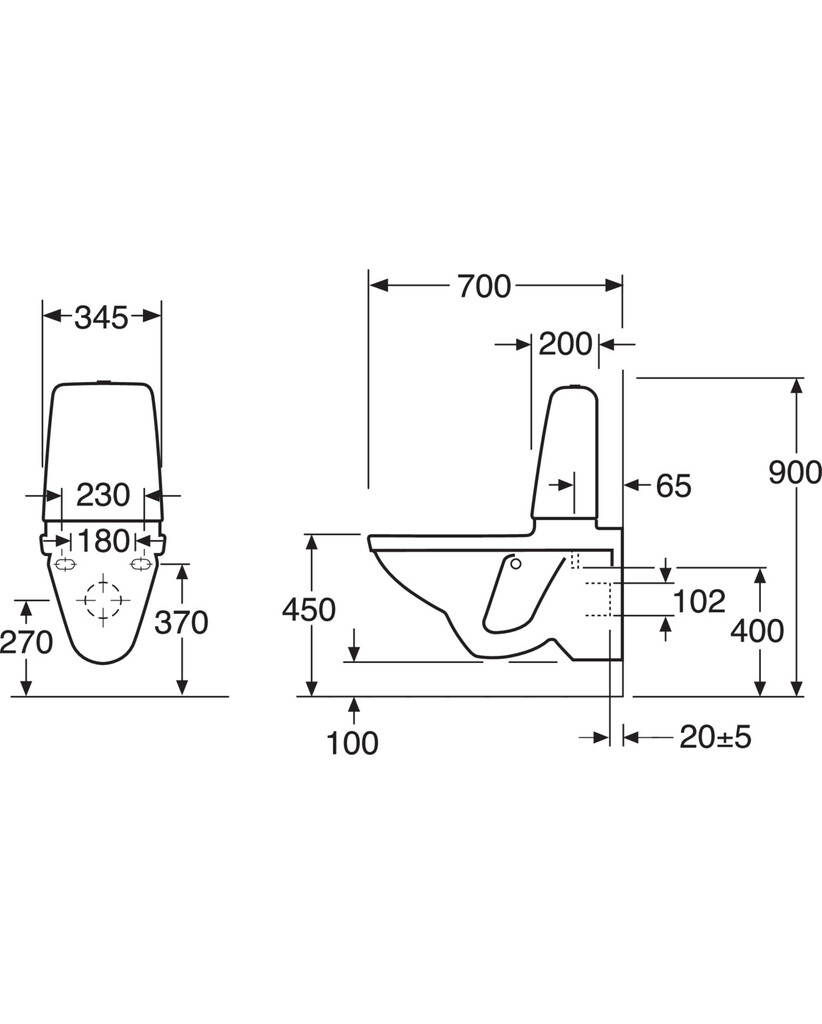

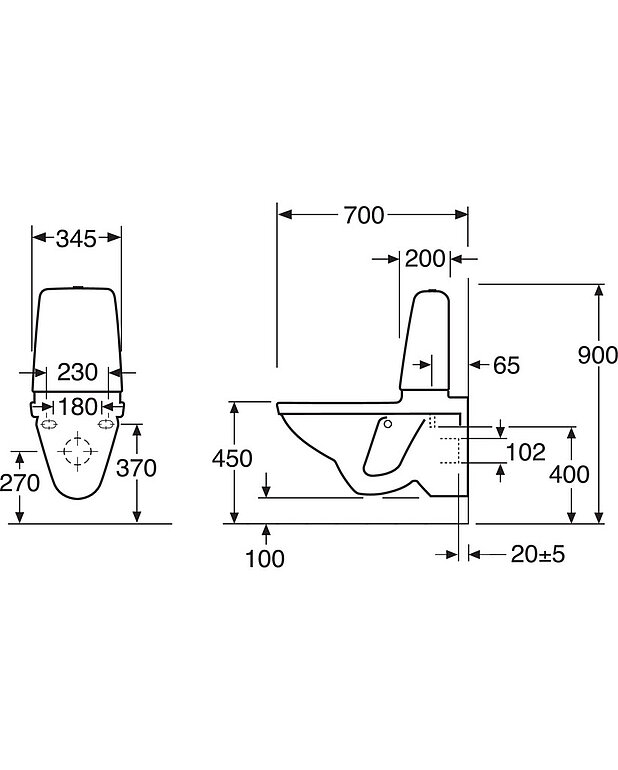

Drawing Assembly instruction Care instruction

Other info

Ballcock with adjustable connection R1/2´ exterior metal threads. The bottom valve has a button-operated single flush. Factory set to 4.0L

Deep - 800 mm

Length - 700 mm

Width - 345 mm

Features

Durable stainless steel push buttonMade from hygienic, durable and densely sintered sanitary ware
Easy-to-clean and minimalistic design
Glazed under the flush edge for simplified cleaning
Space between tank and wall for easier cleaning
Factory set single flush 4L
Flush volume adjustable up to 6L
Full-coverage, condensation-free cistern
Quiet refilling
Suits our Triomont fixture for wall hung toilet with tank
Can be combined with armrest and care seat for improved accessibility
Several seat options in two different colours, white or black
With open, glazed flush edge for simplified cleaning
Flushes all the way up to the rim for improved hygiene
Ceramicplus for quick and eco-friendly cleaning
Adjustable water connection R1/2´ for flexible installation
Flexible distance between bolts (centre to centre) 180/230mm
Load tested to 400 kg
