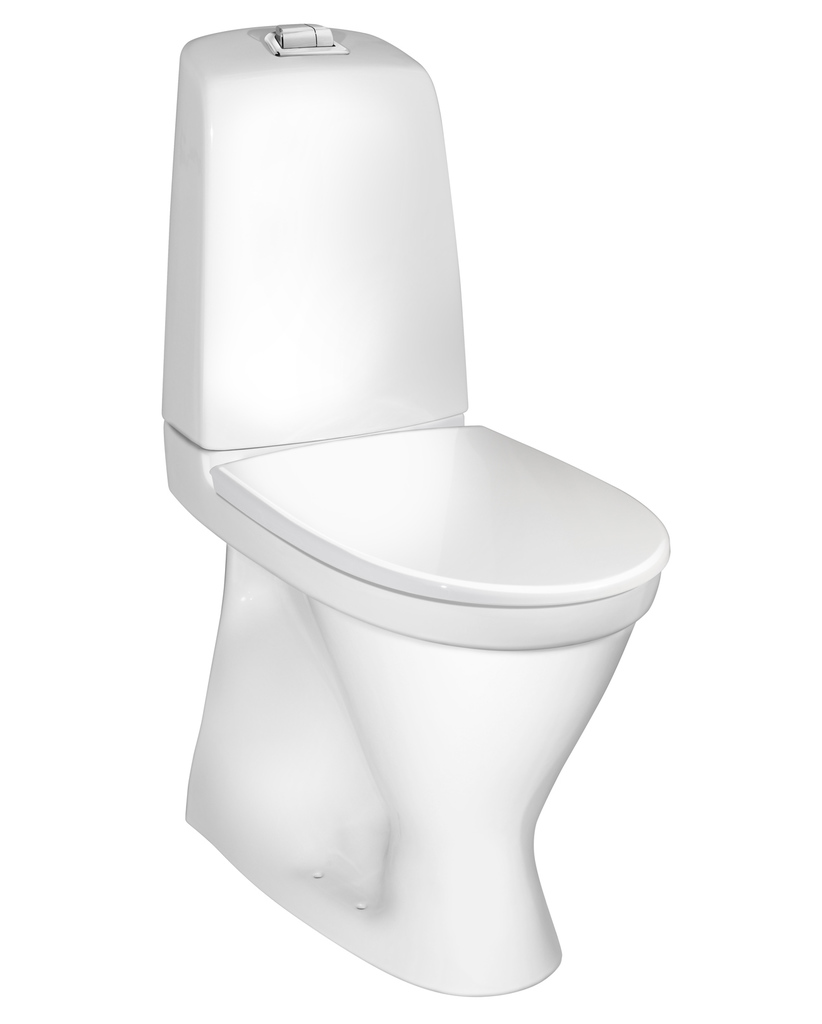

Toilet Nautic 5546 - S-trap, high model

For specific features and design read product information carefully.

Easy-to-clean and minimalist design

Toilet Nautic 5546 - S-trap, high model

Single flush 4L, standard seat

  • Easy-to-clean and minimalist design
  • Full coverage condensation-free flush tank
  • Elevated seat height for greater comfort

Article number: GB115546401211
EAN-number: 7391530065045

Remove from listADD TO WISHLISTLoading...

FIND A RETAILER

PRODUCT INFORMATION

Specifications

Product datasheet

Product datasheet with product image

BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa)

Product image

Declaration of performance

Assembling & Care

Floor mounting with four stainless screws and plastic covers. Alternative floor installation with glue. The rounded tank and small outer dimensions also make it suitable for corner placement. See included installation guide. Mounting hardware included.

Assembly Instruction

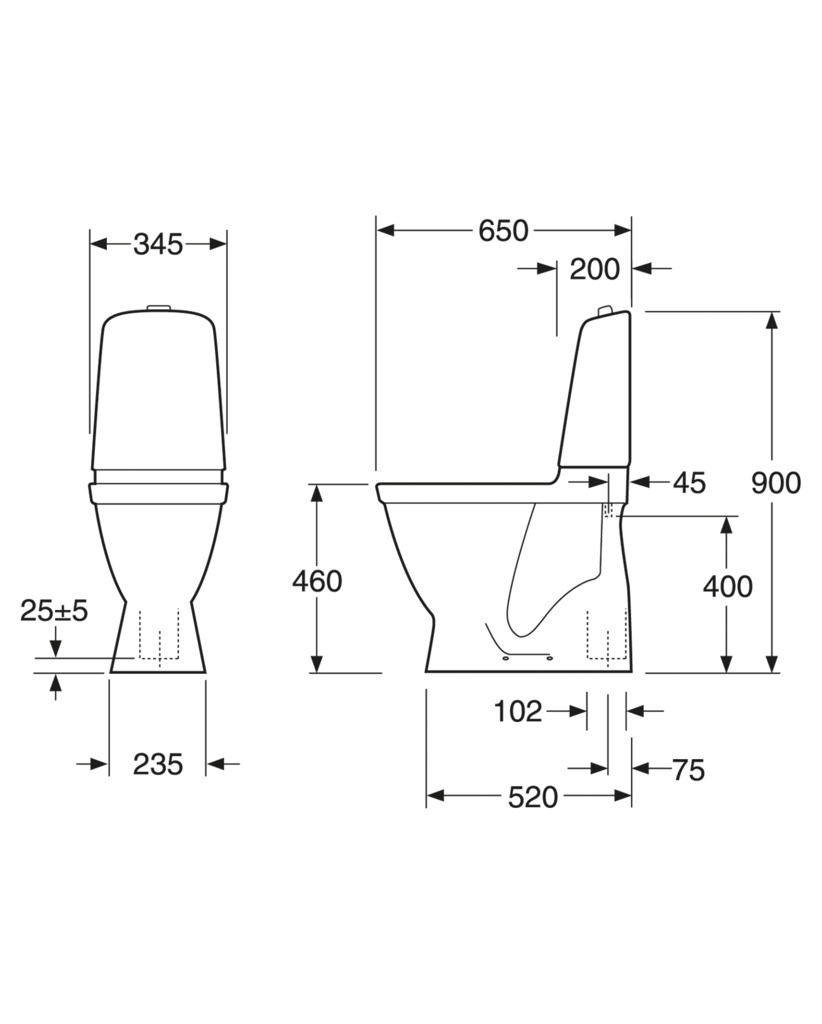

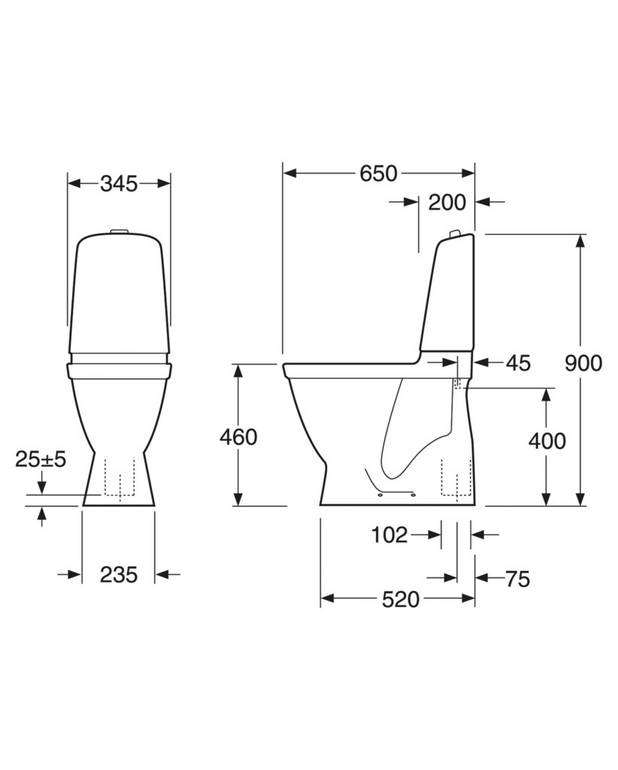

Drawing

Standards & Approvals

  • ce_logo
  • The product follows AMA recommendations, SS-EN 33 dimensioning and SS-EN 997 function
  • Complies with Safe Water installation requirements
  • CE approved

Other info

  • Deep - 940 mm
  • Length - 680 mm
  • Width - 360 mm

Features

  • Made from hygienic, durable and densely sintered sanitary ware
  • Easy-to-clean and minimalist design
  • Glazed under the flush edge for simplified cleaning
  • Factory set to single flush 4 L
  • Flush volume adjustable up to 6 L
  • Ergonomically elevated flush button
  • Higher seat height than other models, 460 mm
  • Full-coverage, condensation-free tank
  • Quiet refill
  • Can be fitted with armrest and care seat for improved accessibility
  • Can be combined with several push button alternatives: white, chrome or push button for public environments
  • Adjustable water connection R1/2´
  • Mounting to floor with four screws or adhesive installation
  • Suitable for corner installation
