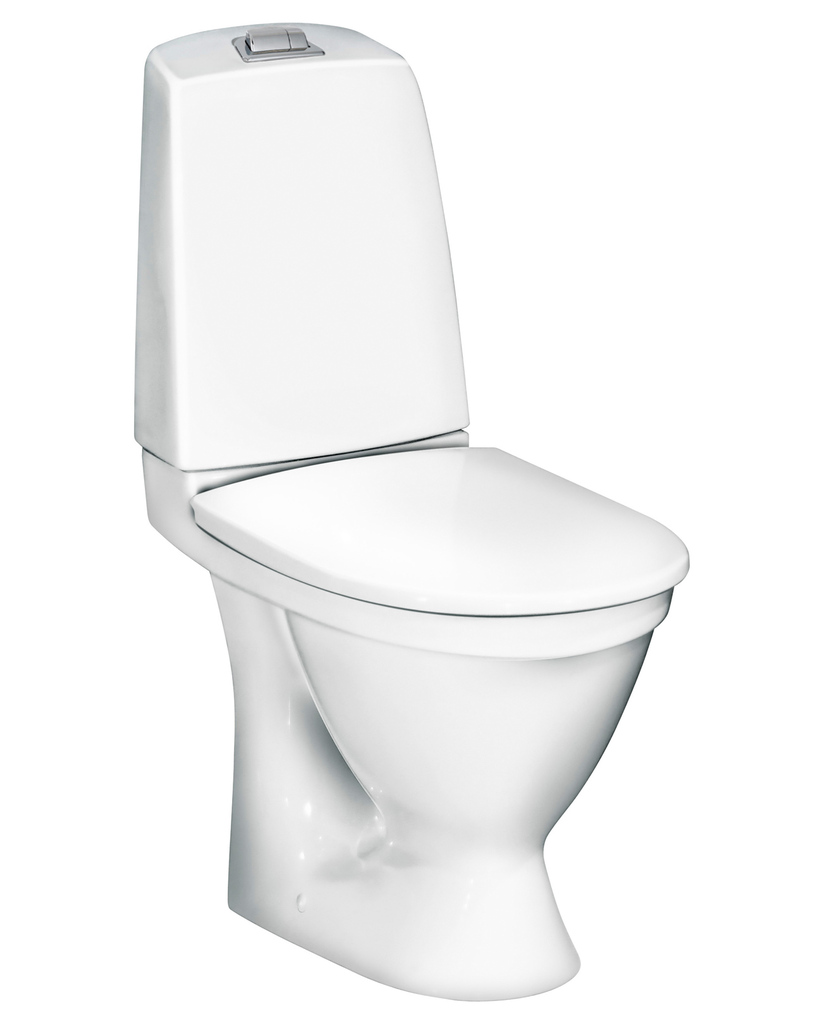

Toilet Nautic 5510 - concealed P-trap

Toilet Nautic 5510 - concealed P-trap

  • RSK-nr: |
  • ART-nr: GB115510201211 |
  • EAN-nr: 7391530062938
Dual flush 2/4 L, standard seat
  • Easy-to-clean and minimalist design
  • Full coverage condensation-free flush tank
  • Ergonomically elevated flush button

Product information

Standards & Approvals
  • ce_logo
  • The product follows AMA recommendations, SS-EN 33 dimensioning and SS-EN 997 functionComplies with Safe Water installation requirementsCE approved
Assembling & Care

Mounting with the included bracket, which is screwed to the floor with two screws. Alternative mounting on floor with glue. Caps for screws and white plugs for screw holes for gluing included. The rounded tank and small outer dimensions also make it suitable for corner placement. See included installation guide.

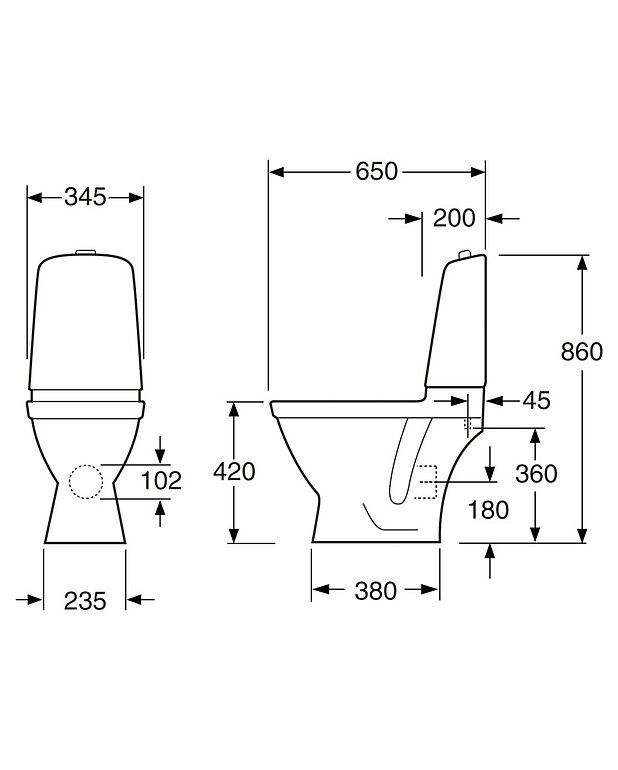

Drawing Assembly instruction Care instruction
Other info

Ballcock with adjustable connection R1/2 external metal threading. The bottom valve has a button-operated half and full flush (dual flush). Factory set to 2.6/4.0 litre, or with button-operated bottom valve for single flush.

Deep - 940 mm
Length - 680 mm
Width - 360 mm

The Nautic series is our latest and most extensive product series, with models covering nearly every need. The moulded, full porcelain cover conceals a separate and sound-dampening inner tank. For any service, all you have to do is just loosen the

Features
  • Made from hygienic, durable and densely sintered sanitary ware
  • Easy-to-clean and minimalist design
  • Glazed under the flush edge for simplified cleaning
  • Factory set dual flush 2.6/4 L
  • Flush volume adjustable up to 6 L
  • Ergonomically elevated flush button
  • Seat height 420 mm
  • Full-coverage, condensation-free tank
  • Quiet refill
  • Can be fitted with armrest, care seat and elevating base for improved accessibility
  • Can be combined with several push button alternatives: white, chrome or push button for public environments
  • The P-trap makes it possible to connect the waste pipe to floor, straight against the wall, or to the side at any angle
  • Adjustable water connection R1/2´
  • Concealed mounting to floor with two screws or adhesive installation
  • Suitable for corner installation
