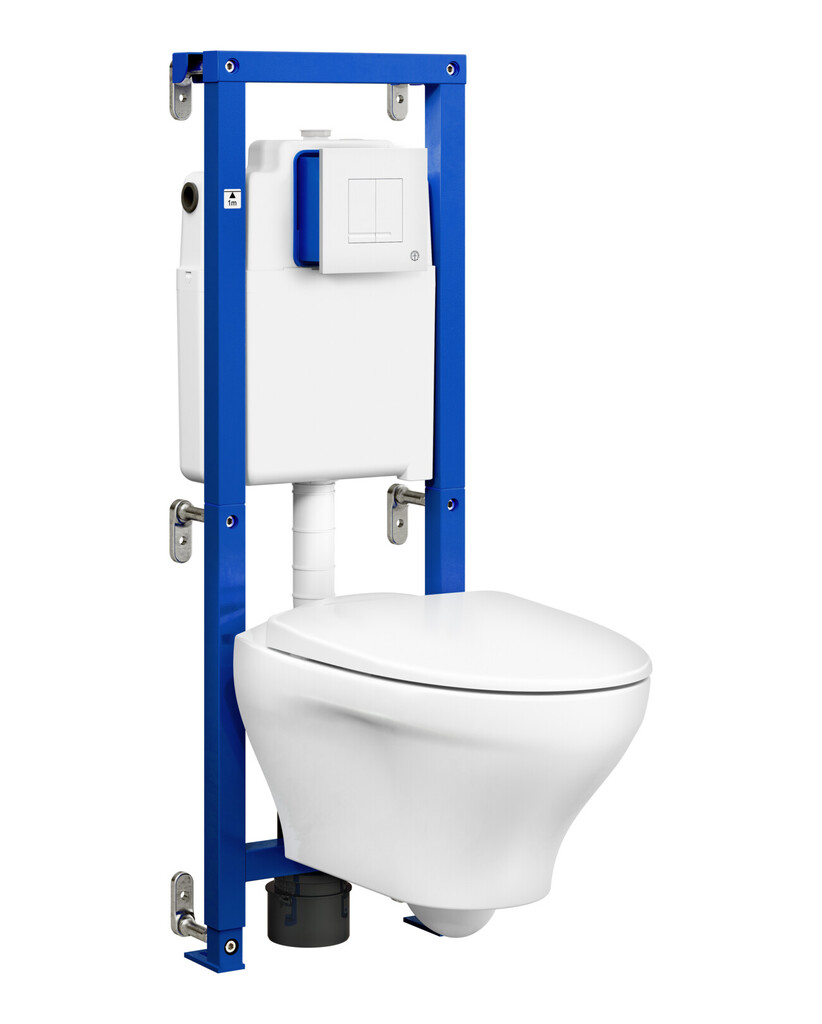

All In One - including fixture, Estetic WC and Control panel

All In One - including fixture, Estetic WC and Control panel

  • RSK-nr: |
  • ART-nr: GB1921102201 |
  • EAN-nr: 8711778226357
Dual flush 4,5 or 3 liter.
  • Neat installation, with a minimum of visible pipes

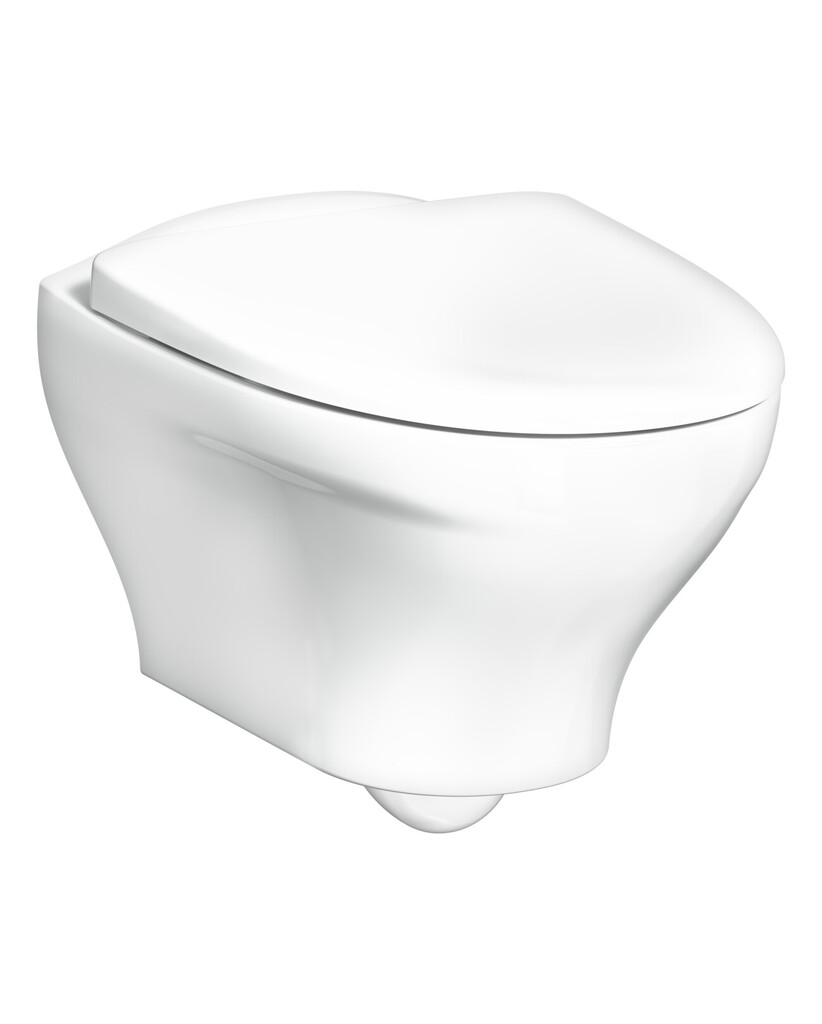

  • Estetic toilet with soft close seat and hidden fixation
  • Pneumatic control panel with dual flush
Soft close Quick release Hygienic_flush Suprafix
Product information Product information Spare parts Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • ce_logo
  • SINTEF-certifiedFixture in accordance with the standard SS 820200Tank in accordance with EN 14055Ready for AMA installation without any extra components (SE)
Specifications Product datasheet Declaration of performance Product image Additional info Link to included Estetic WC
Link to included control panel
Assembling & Care

Mounted per included installation instructions.The height dimensions (1000 mm) of the drawing mean a seat height of 410-430 mm depending on the toilet model.Can when installed be adjusted up to 610-630 mm.Flexible bolt spacing for wall-mounted toilet installation, c-c 180 or 230 mm. With bolt spacing 180 c-c, all toilets from Gustavsberg and Villeroy & Boch fit.

Drawing Assembly instruction
Other info
Deep - 590 cm
Length - 395 cm
Width - 590 cm

High model for mounting against straight wall or in corner. Compatible with wall press or pneumatic flush button. Choice of button controls flush volume. The toilet fixture has been tested to tolerate a load of 400 kg.

Features
  • Space efficient construction, only 380 mm wide Suitable for installation on a straight wall or in a corner
  • Six wall mounts included, floor bolts not necessary
  • Rotating wall brackets for flexible attachment point in wall
  • Mounted with a front installed mechanical flush button XS
  • Large selection of flush buttons in different styles, dual or single flush
  • The seat height is adjustable from 410 to 610 mm
  • Bolt spacing 180 or 230 mm
  • Fits all CE-marked wall-mounted toilets
  • SINTEF-certified, load tested steel frame 400 kg
  • Connections for floor or wall connected waste pipe included
  • Ready for AMA installation without any extra components (SE)

Inspired

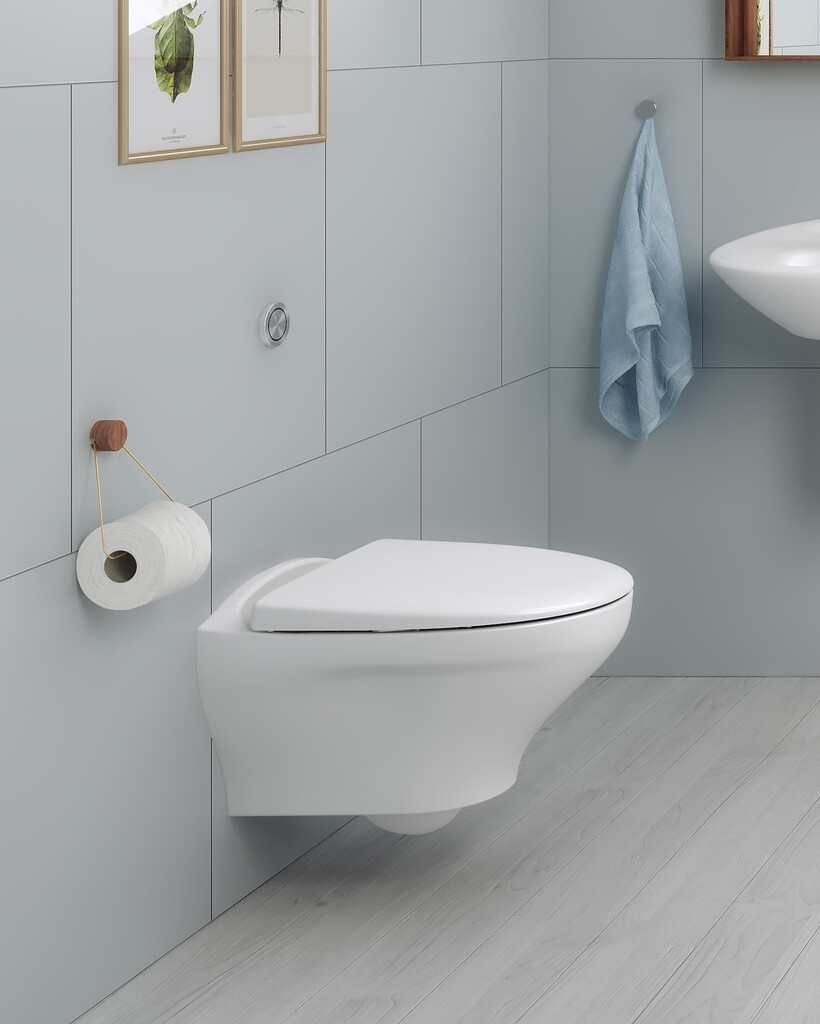

All In One - including fixture, Estetic WC and Control panel - Estetic toilet with soft close seat and hidden fixation

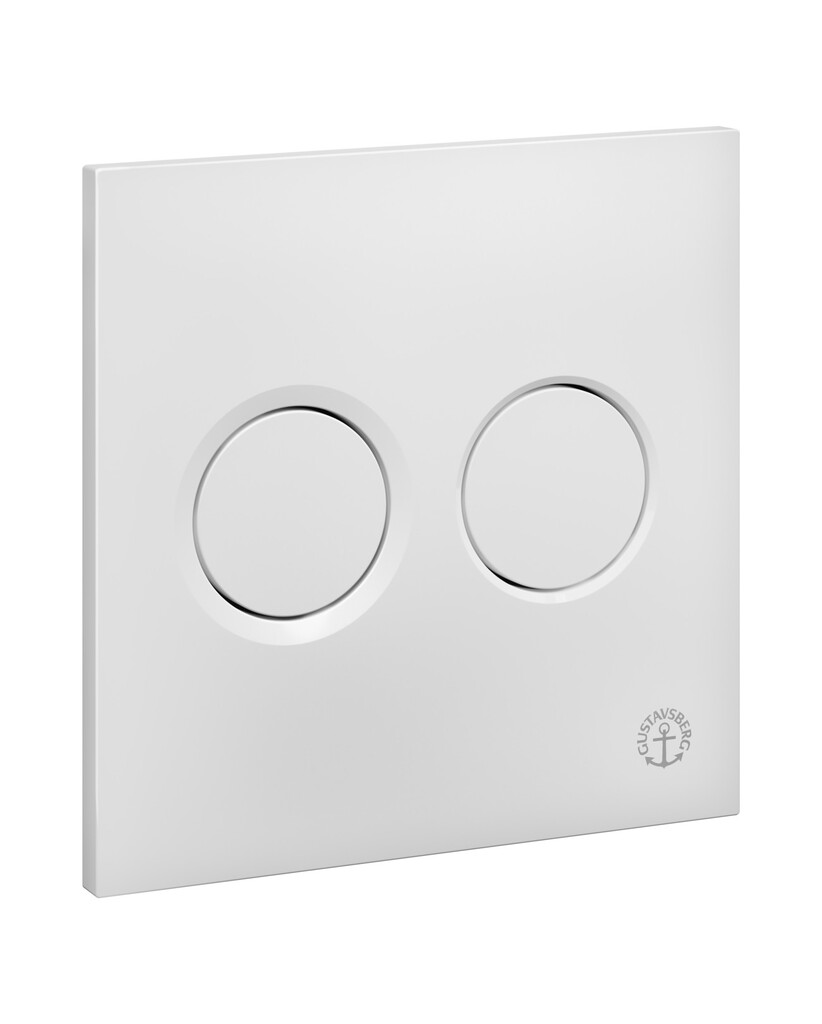

All In One - including fixture, Estetic WC and Control panel - Pneumatic control panel with dual flush

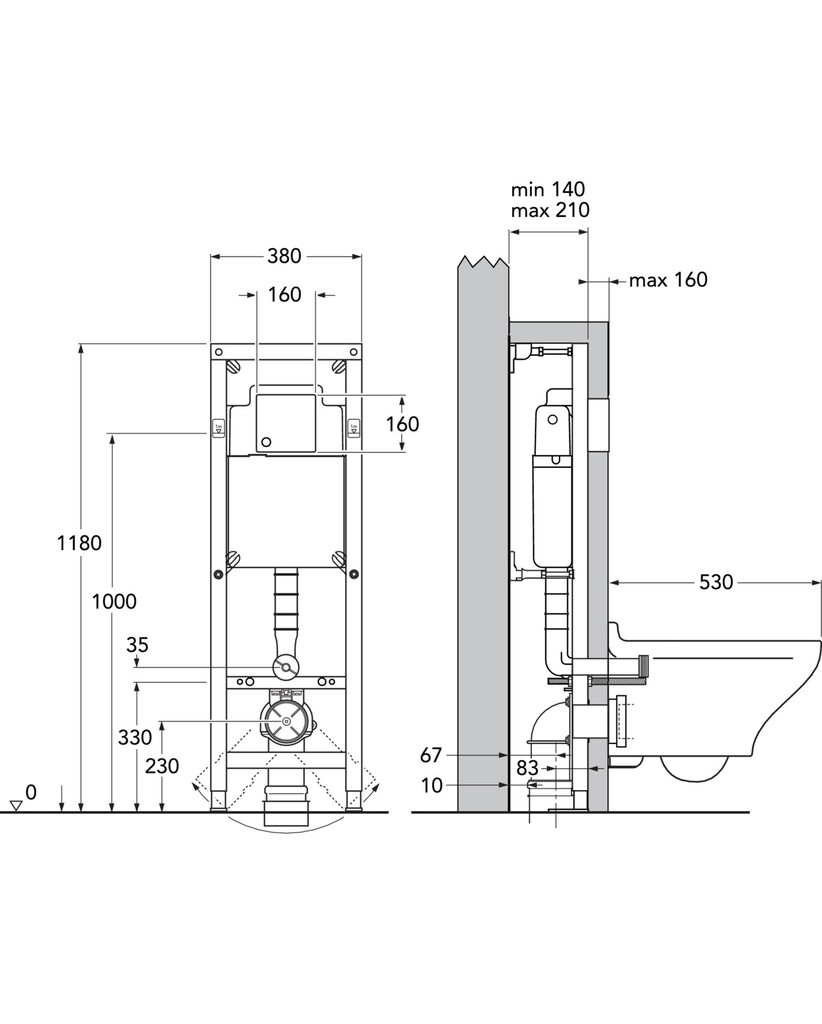

All In One - including fixture, Estetic WC and Control panel - Drawing - GBG_Triomont_XS_corner_top.jpg
All In One - including fixture, Estetic WC and Control panel - Pneumatic control panel with dual flush
