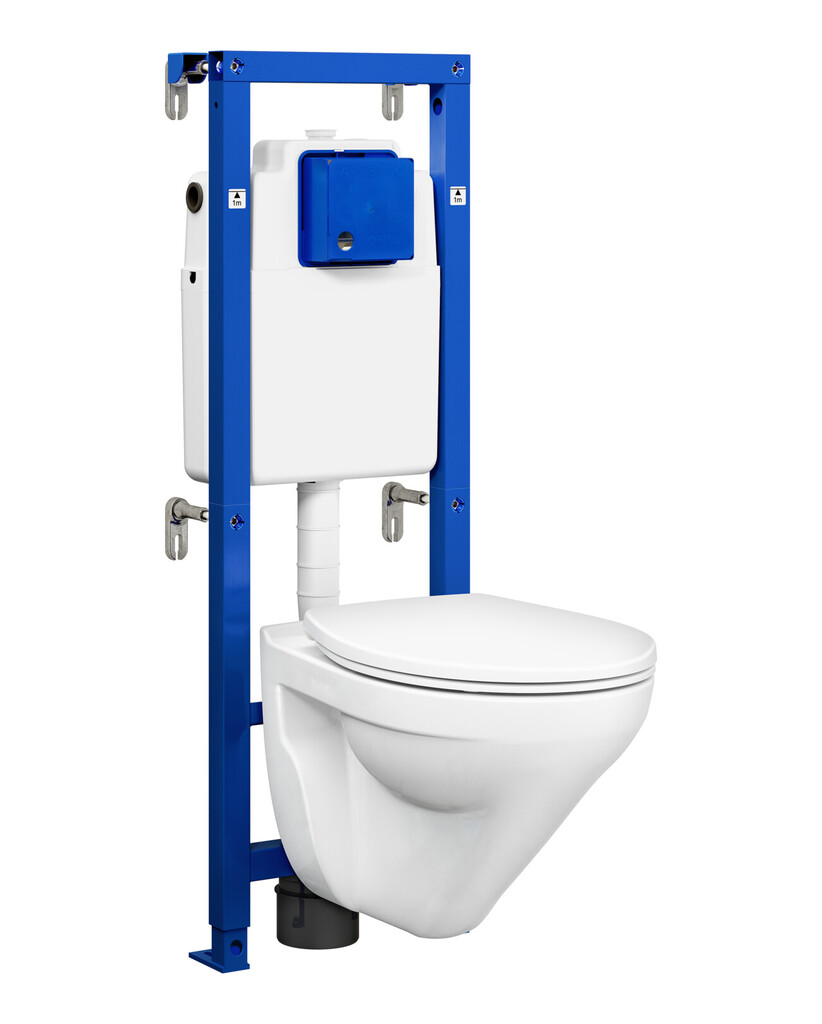

All In One - Fixture including Nordic³ WC and Control panel

All In One - Fixture including Nordic³ WC and Control panel

  • RSK-nr: |
  • ART-nr: GB1921102203 |
  • EAN-nr: 8711778226340
Dual flush 4,5 or 3 liter.
  • Neat installation, with a minimum of visible pipes
  • Nordic³ Hygienic Flush toilet with soft close seat
  • Control panel with dual flush
Flexible_bolt_spacing Consealed_fixation Soft close Quick release Hygienic_flush
Product information Product information Spare parts Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • ce_logo
  • SINTEF-certifiedFixture in accordance with the standard SS 820200Tank in accordance with EN 14055Ready for AMA installation without any extra components (SE)
Specifications Product datasheet Declaration of performance Product image Additional info Link to included Nordic³ WC
Link to included control panel
Assembling & Care

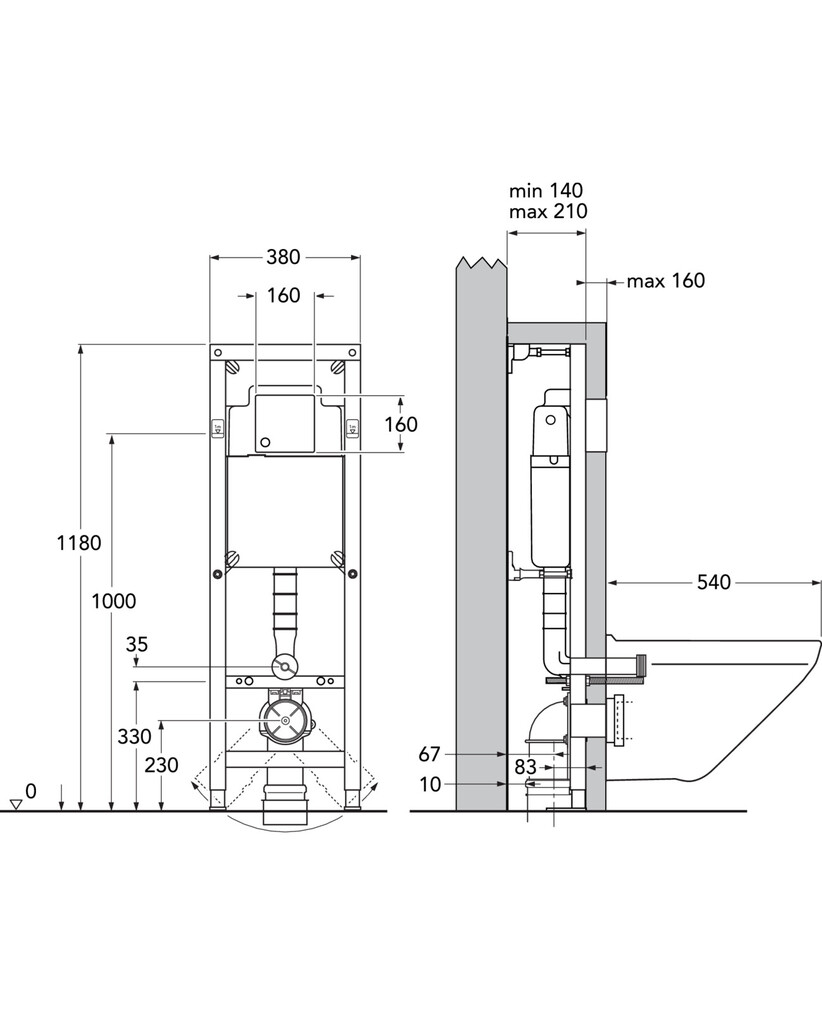

Mounted per included installation instructions.The height dimensions (1000 mm) of the drawing mean a seat height of 410-430 mm depending on the toilet model.Can when installed be adjusted up to 610-630 mm.Flexible bolt spacing for wall-mounted toilet installation, c-c 180 or 230 mm. With bolt spacing 180 c-c, all toilets from Gustavsberg and Villeroy & Boch fit.

Drawing Assembly instruction
Packaging information
Length : 395 mm | Width : 590 mm | Height : 590 mm
Weight : 34 kg
Quantity in the package : 1

For product specific measurement, see drawing in the carousel.

Other info

High model for mounting against straight wall or in corner. Compatible with wall press or pneumatic flush button. Choice of button controls flush volume. The toilet fixture has been tested to tolerate a load of 400 kg.

Features
  • Space efficient construction, only 380 mm wide Suitable for installation on a straight wall or in a corner
  • Six wall mounts included, floor bolts not necessary
  • Rotating wall brackets for flexible attachment point in wall
  • Mounted with a front installed mechanical flush button XS
  • Large selection of flush buttons in different styles, dual or single flush
  • The seat height is adjustable from 410 to 610 mm
  • Bolt spacing 180 or 230 mm
  • Fits all CE-marked wall-mounted toilets
  • SINTEF-certified, load tested steel frame 400 kg
  • Connections for floor or wall connected waste pipe included
  • Ready for AMA installation without any extra components (SE)

Inspired

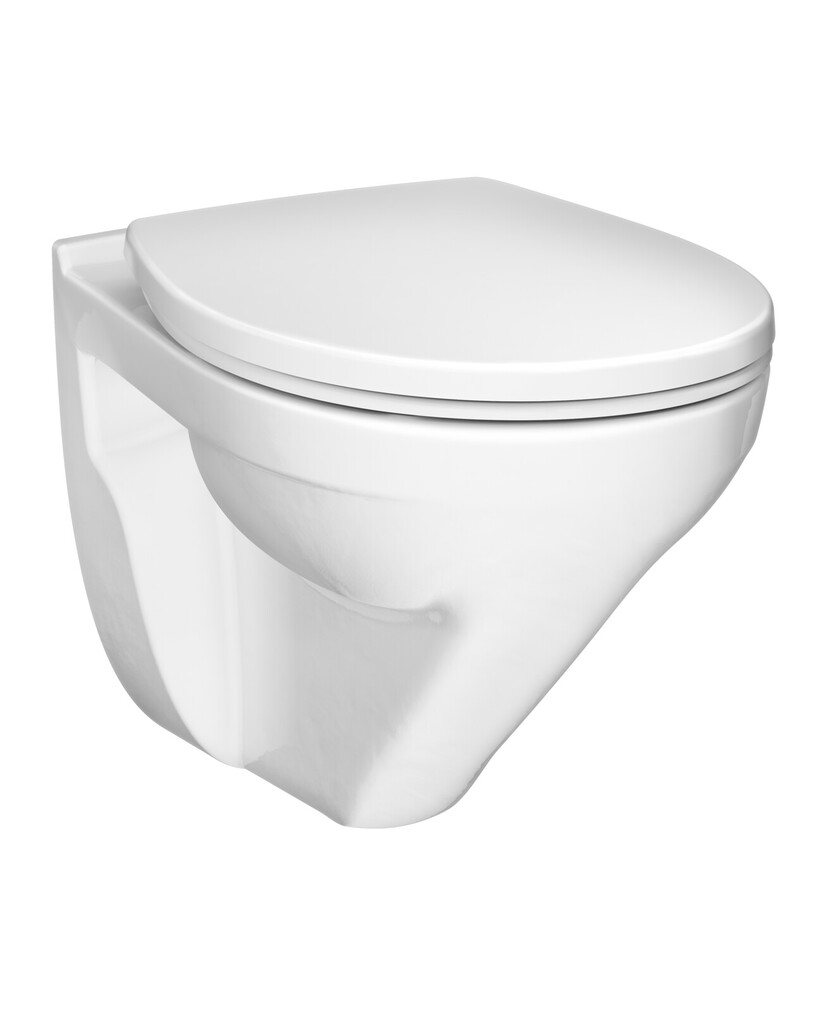

All In One - Fixture including Nordic³ WC and Control panel - Nordic³ Hygienic Flush toilet with soft close seat
All In One - Fixture including Nordic³ WC and Control panel - Control panel with dual flush
All In One - Fixture including Nordic³ WC and Control panel - Control panel with dual flush
All In One - Fixture including Nordic³ WC and Control panel - Drawing - GBG_Triomont_XS_corner_top.jpg
