Product information

Standards & Approvals

Specifications Product datasheet PDF with product image Product image Flow diagram

Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

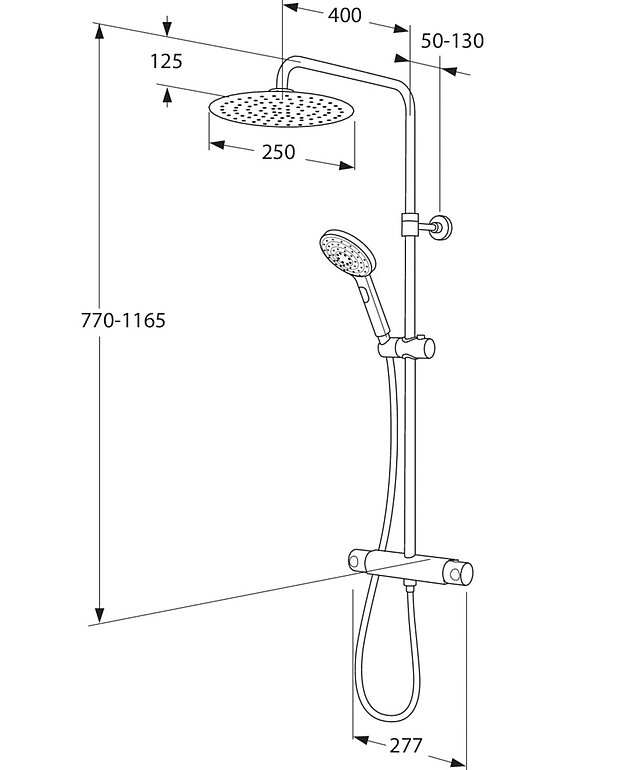

Drawing Assembly instruction

Other info

Deep - 94 mm

Length - 714 mm

Width - 368 mm

Features

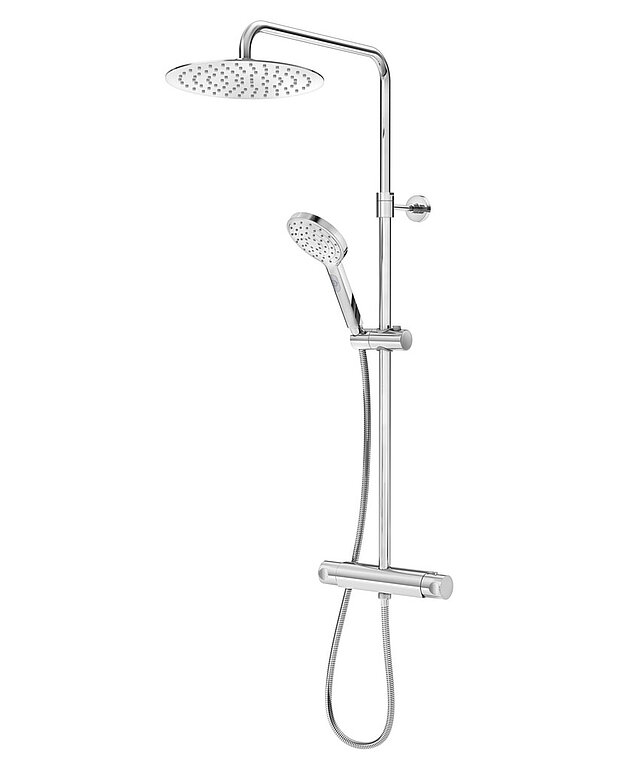

Delivered with Skandic thermostatic mixer 160 c-cSuper slim round head shower Ø250 mm
Easy clean – designed with smart nozzles that make it simple to wipe off any limescale deposits
The head shower and shower arm are turnable and can be adjusted completely individually
400 mm long shower arm provides a generous shower area
Telescopically adjustable height 770-1165 mm
Flexible wall bracket 50-130 mm for easy installation
3-functional hand shower with a button
Hand shower on slider
1,75 m metal braided shower hose
Diverter function in the flow handle
Built-in automatic hot water block for scald protection
Block button at comfort temperature 38°C
Safe Touch reduces heat on the front of the mixer
Reacts quickly to changes in heat and pressure so as to maintain the correct temperature at all times
Ceramic shutdown for drip fuse and long service life, as well as simplifying use for small and weak hands
Type-approved non-return valves in the inlet
Backflow protection in accordance with SS-EN 1717 [EB]
The shower set can be mounted with screws or glue
Can be combined with Gustavsberg bathtub spout
