Bathtub without panels Combi - 1600x700

Bathtub without panels Combi - 1600x700

  • RSK-nr: |
  • ART-nr: GB2116070100 |
  • EAN-nr: 7391530061887
  • Round head end for back and large shower space at foot end
  • Premium quality titanium alloy steel
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • ce_logo
  • The product follows AMA recommendations & SS-EN 232
  • CE approved
Specifications Product datasheet PDF with product image Declaration of performance Product image
Assembling & Care

Bath panel for full or half bath panel delivered with end panels preinstalled. Front panel and concealed profile are then assembled into a frame. The frame is adjusted horizontally with the adjustable feet. The bathtub, which is equipped with damping/friction material under the corners, is lowered into the frame. The plastic drainpipe is cut and connected to the floor drain. Installation instructions are included.

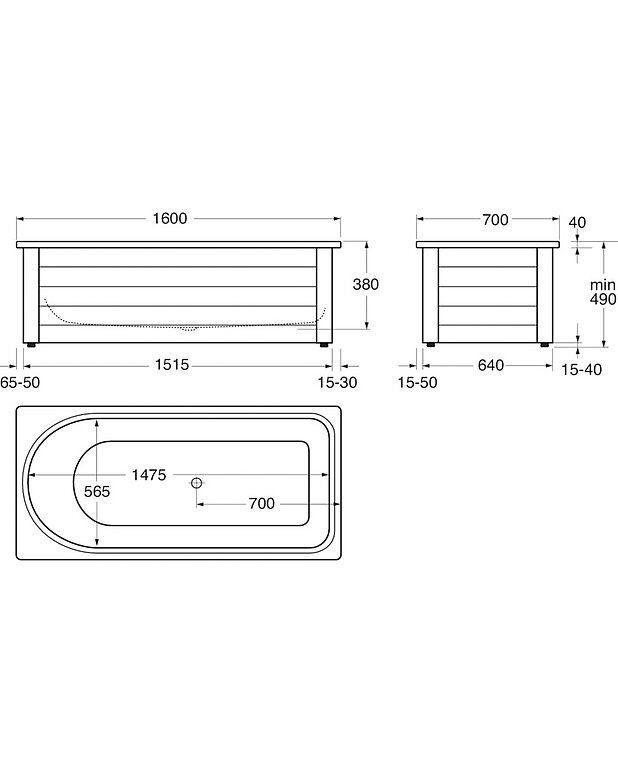

Drawing Care instruction
Other info

Compatible with front frame

Deep - 380 mm
Length - 1600 mm
Width - 700 mm

Bathtub made from enamelled steel plate. Delivered without support, with drain pipe, with installed bottom valve. The tub is intended for installation together with a full or half Bath panel. The frame is made from powder-coated aluminium with feet adjustable up to 25 mm

Features
  • Made from durable and resistant enamelled steelRound head end, flat shower surface and centred drain adapted for use as both bath and shower
  • The bath panel can be shifted laterally and depthwise to provide space for pipe routing along wall
  • The lower section of the full panel can be shifted up for easier cleaning
  • Adjustable feet, bathtub is stable even on uneven floor
  • Optional grab bar and anti-slip bottom for added safety
  • Glazeplus as an option for fast and environmentally friendly cleaning
  • Optional bath panel in multiple colours
