Product information

Standards & Approvals

The product follows AMA recommendations & SS-EN 31
Complies with Safe Water installation requirements
CE approved

Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Declaration of performance Product image Additional info Read more about Ceramicplus

Assembling & Care

Mounted with brackets. Bracket length 260 mm. Brackets completely concealed in a hidden bracket slot. The sink can also be mounted on bolts directly against the wall. Bolt projection from finished wall must be 50 ± 2 mm. Brackets and other fasteners not included. Mounting instructions included.

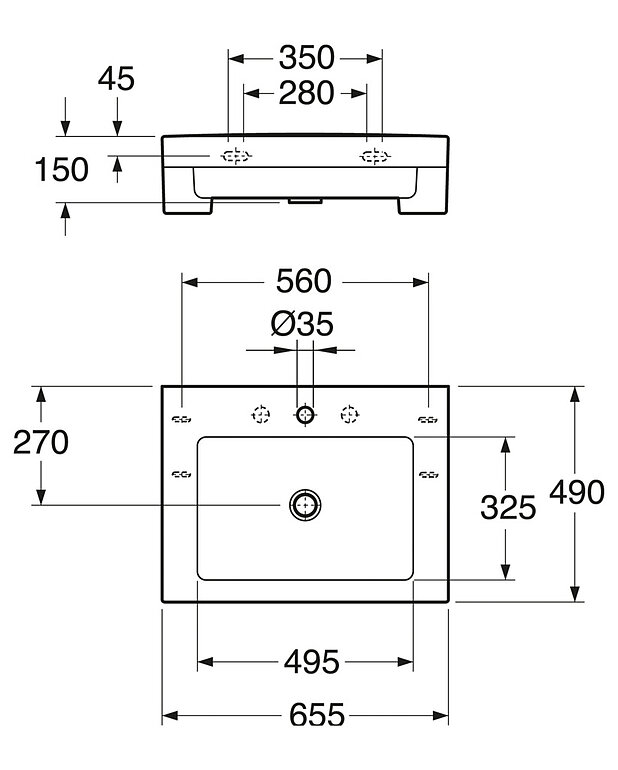

Drawing Assembly instruction Care instruction

Other info

The sink is pre-configured to accommodate a three-hole faucet. The two extra holes are knocked out by the installer.

Deep -

Length -

Width -

Features

Made from hygienic, durable and densely sintered sanitary wareDesign with straight lines at right angles
Ceramicplus for fast and environmentally friendly cleaning
Fully concealed brackets for clean-looking installation
For bolt or bracket mounting
Bolt spacing c-c 280 mm
