Product information

Standards & Approvals

The product follows AMA recommendations & SS-EN 31Complies with Safe Water installation requirementsCE approved

Specifications Product datasheet PDF with product image BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Declaration of performance Product image Additional info Read more about Ceramicplus

Assembling & Care

Bracket mounting: Bracket 260 mm. Brackets almost entirely concealed by porcelain. Brackets and other fasteners not included. The sink can also be mounted on bolts directly against the wall. Bolt projection from finished wall must be 50 ± 2 mm.

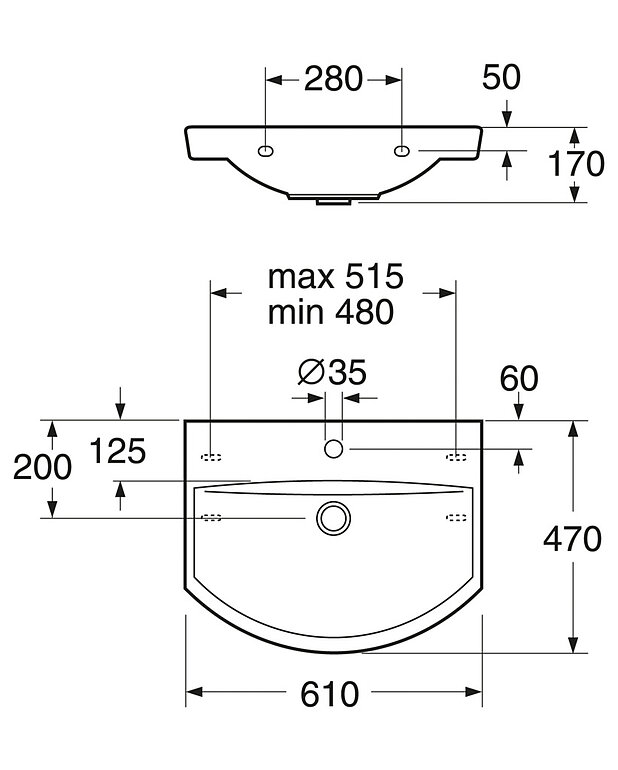

Drawing Assembly instruction Care instruction

Other info

Deep -

Length -

Width -

The Logic series is designed primarily for smaller bathrooms. Despite its small outer dimensions it still offers generous storage space. The bathroom sink´s design allows for clean-looking bracket mounting, as these are almost entirely concealed by the porcelain.

Features

Made from hygienic, durable and densely sintered sanitary ware
Flat countertop areas and generous basin
Ceramicplus for fast and environmentally friendly cleaning
Concealed brackets for clean-looking installation
For bolt or bracket mounting
