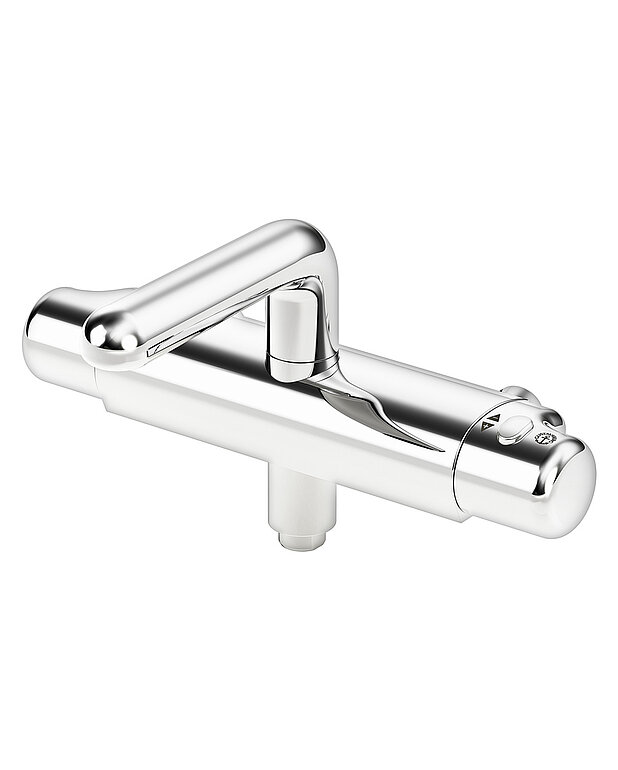

Tub faucet Logic - thermostat

Safe Touch reduces heat on the front of the faucet

Tub faucet Logic - thermostat

With pivoting spout, 150 c-c

  • Safe Touch reduces heat on the front of the faucet
  • Maintains even water temperature
  • Smart built-in diverter in hose attachment

Article number: GB41214933
EAN-number: 7393792227117

PRODUCT INFORMATION

Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

Assembly Instruction

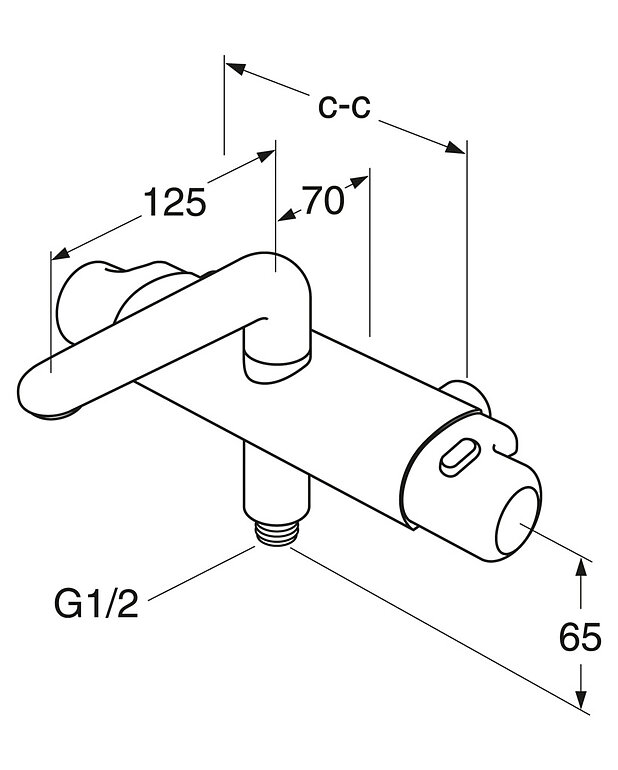

Drawing

Standards & Approvals

    • Complies with Safe Water installation requirements.

    Other info

    • Deep - 75 mm
    • Length - 440 mm
    • Width - 275 mm

    Features

    • Organic design by Jon Eliason
    • All components made with food-safe materials
    • Easy-to-grasp knob
    • Smart built-in diverter in hose attachment, changes flow path from bath to shower with automatic return to bath
    • Bathtub spout can be turned to the side for improved comfort and safety
    • Built-in automatic hot water block for scald protection
    • Block button on the temperature side at comfort temperature 38°C
    • Adjustable max temperature for increased scald protection
    • Safe Touch reduces heat on the front of the faucet
    • Responds quickly to changes in pressure and temperature, maintaining even water temperature
    • Ceramic cartridge ensures non-drip operation and longevity
    • Type-approved non-return valves in the inlet
    • Backflow protection in accordance with SS-EN 1717 [HC]
    • Optional coloured knobs
