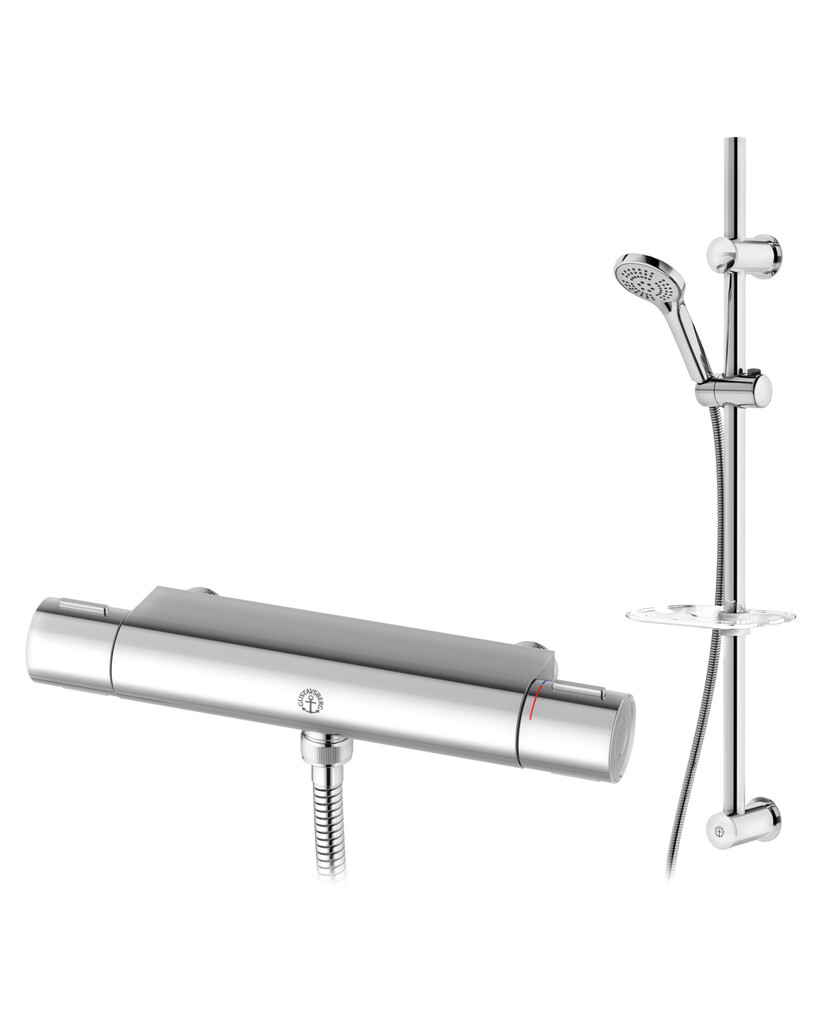

Shower mixer New Nautic 2.1

Shower mixer New Nautic 2.1

  • RSK-nr: |
  • ART-nr: GB412023870 |
  • EAN-nr: 7391530075716
Lead-free, outlet downward, incl. shower set, 160 c-c
  • Safe Touch reduces the heat on the front of the faucet
  • Maintains even water temperature upon pressure and temperature changes
  • Contains less than 0.1% lead
Smart_inside Safe_touch Even_temperature Lead_free
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • Complies with Safe Water installation requirements.
Specifications Product datasheet PDF with product image Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

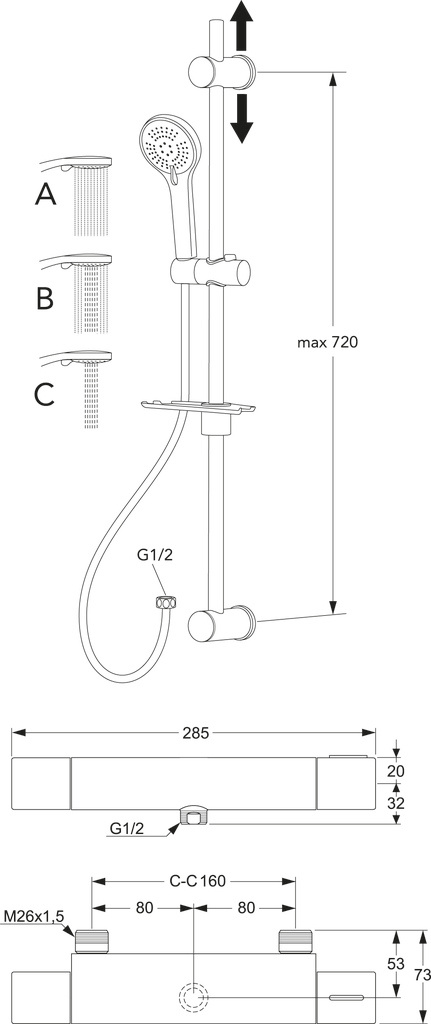

Drawing Assembly instruction Care instruction
Other info
Deep -
Length -
Width -
Max. tap capacity (at 300 kPa): 0,1 l/s
Pressure loss with flow (0,1 l/s) 300 kPa
Features
  • Timeless and harmonic design
  • All components made with food-safe materials
  • Built-in automatic hot water block for scald protection
  • Block button on the temperature side at comfort temperature 38°C
  • Adjustable max temperature for increased scald protection
  • Safe Touch, minimises

Inspired
