Shower column New Nautic 2.2

Shower column New Nautic 2.2

  • RSK-nr: |
  • ART-nr: GB412023300 |
  • EAN-nr: 7391530076348
Outlet up & down, 160 c-c, lead free, shower column.
  • Safe Touch reduces the heat on the front of the faucet
  • Maintains even water temperature upon pressure and temperature changes
  • Completed with ceiling shower set
Smart_inside Safe_touch Even_temperature Lead_free
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet BIM-3D (.3ds/.jpg/.max/.dwg/.gsm/.rfa) Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

Drawing Assembly instruction
Other info
Deep - 1440 mm
Length - 610 mm
Width - 285 mm
Max. tap capacity (at 300 kPa): 0,117 l/s
Pressure loss with flow (0,1 l/s) 220 kPa
Features
  • Timeless and harmonic designEnergy class A, saves water and energy
  • All components made with food-safe materials
  • Water and energy-saving hand and roof shower
  • PVC-free shower hose 1.75 m
  • Max flow 6.5 l/min
  • Smart shelf with practical hooks

Inspired

Shower column New Nautic 2.2 - Maintains even water temperature upon pressure and temperature changes

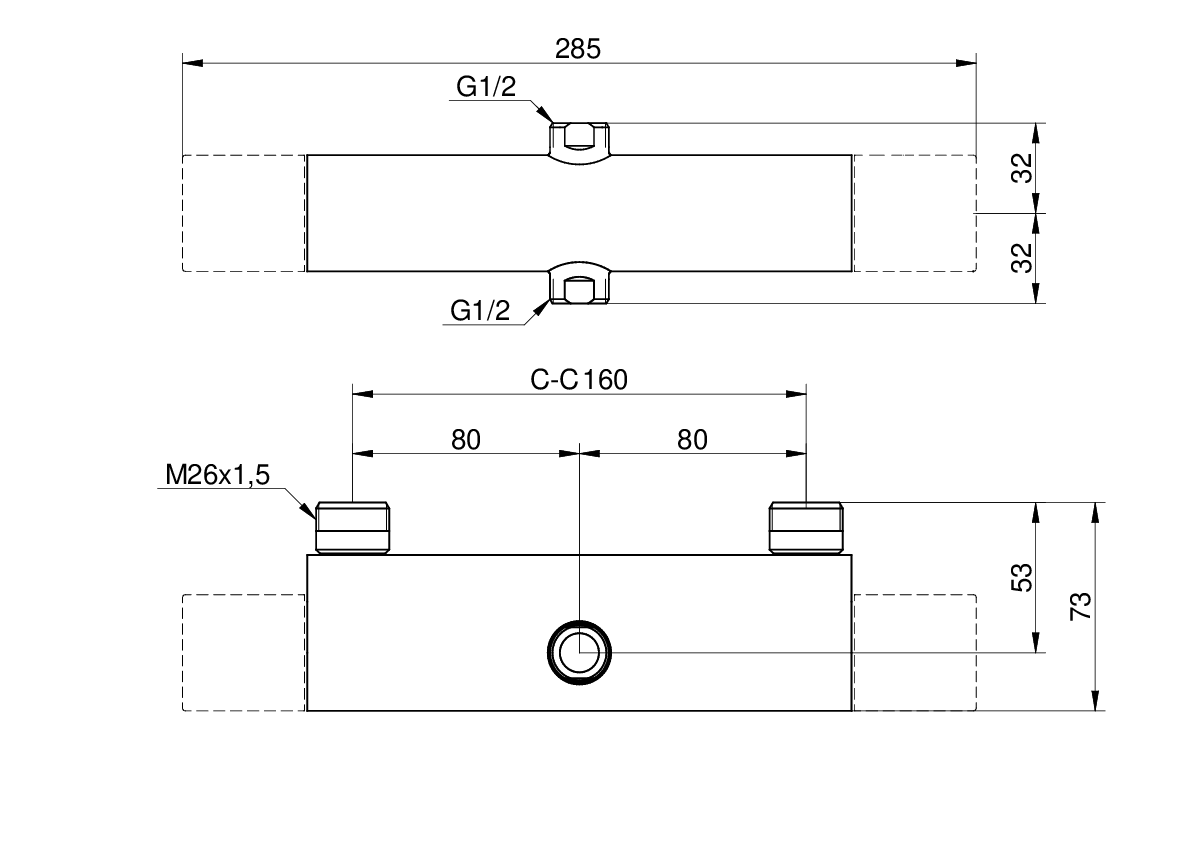

Shower column New Nautic 2.2 - Drawing - GB41106230_Drawing__1_.jpg
Shower column New Nautic 2.2 - Completed with ceiling shower set
