Shower column Atlantic Round

Water and energysaving; flow handshower 7,5 l/min, head shower 12 l/min

Shower column Atlantic Round

150 c-c

  • Water and energysaving; flow handshower 7,5 l/min, head shower 12 l/min
  • Super slim round head shower Ø250 mm
  • Can be combined with Gustavsberg bathtub spout

Article number: GB41215030
EAN-number: 7393792233309

Remove from listADD TO WISHLISTLoading...

FIND A RETAILER

PRODUCT INFORMATION

Specifications

Product datasheet

Product datasheet with product image

Product image

Flow chart

Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

Assembly Instruction

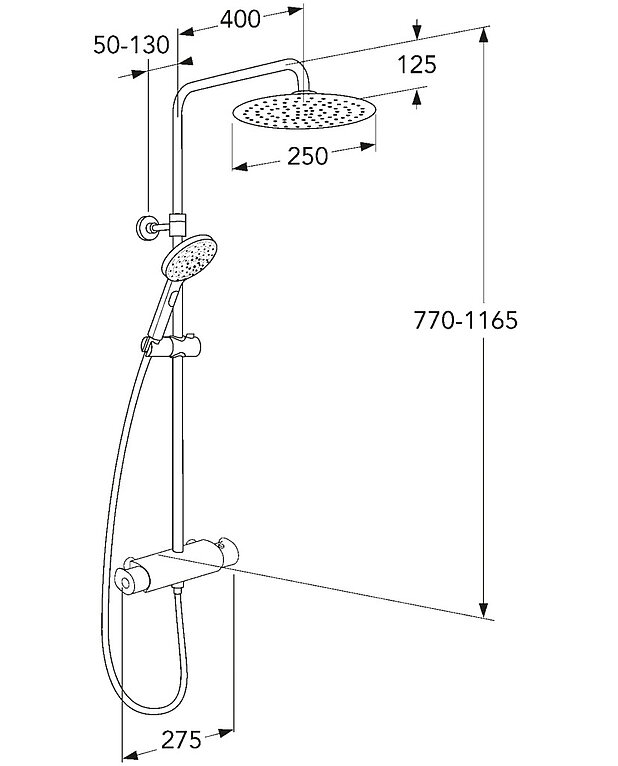

Drawing

Standards & Approvals

  • saker vatten

Other info

  • Deep - 94 mm
  • Length - 714 mm
  • Width - 368 mm
  • Max. tap capacity (at 300 kPa): 0,20 l/s
  • Pressure loss with flow (0,2 l/s) 235 kPa

Features

  • Delivered with Atlantic thermostatic mixer 150 c-c
  • Water and energysaving; flow handshower 7,5 l/min, head shower 12 l/min
  • Super slim round head shower Ø250 mm
  • Easy clean – designed with smart nozzles that make it simple to wipe off any limescale deposits
  • The head shower and shower arm are turnable and can be adjusted completely individually
  • 400 mm long shower arm provides a generous shower area
  • Telescopically adjustable height 770-1165 mm
  • Flexible wall bracket 50-130 mm for easy installation
  • 3-functional hand shower with a button
  • Hand shower on slider
  • 1,75 m metal braided shower hose
  • Diverter function in the flow handle
  • Built-in automatic hot water block for scald protection
  • Block button at comfort temperature 38°C
  • Safe Touch reduces heat on the front of the mixer
  • Reacts quickly to changes in heat and pressure so as to maintain the correct temperature at all times
  • Ceramic shutdown for drip fuse and long service life, as well as simplifying use for small and weak hands
  • Type approved non-return valves in the inlet
  • Backflow protection in accordance with SS-EN 1717 [EB]
  • The shower set can be mounted with screws or glue
  • Can be combined with Gustavsberg bathtub spout
