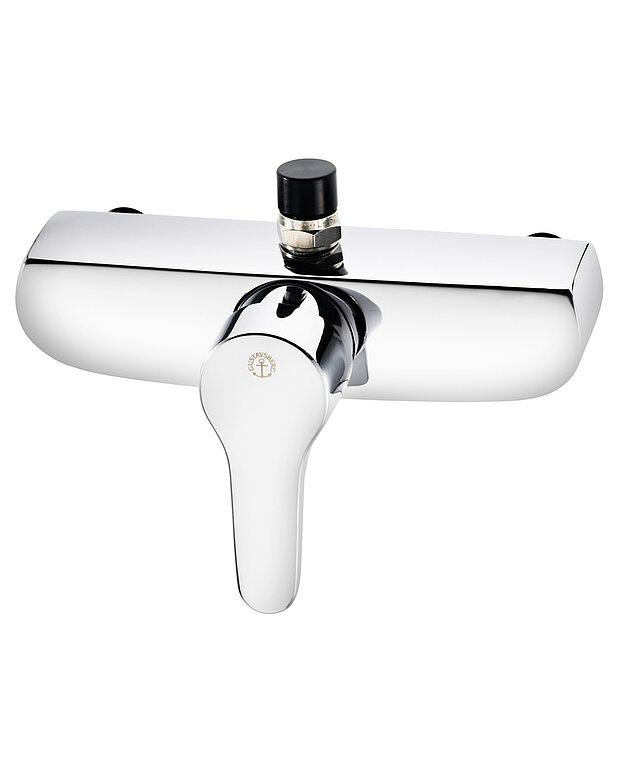

Shower faucet - single lever

Shower faucet - single lever

  • RSK-nr: |
  • ART-nr: GB41204274 0 |
  • EAN-nr: 7393792229265
Lead-free - with vacuum valve, 160 c-c
  • Contains less than 0.1% lead
  • Adjustable max temperature for increased scald protection
  • Can be functionally adapted with elongated lever
Lead_free
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
Specifications Product datasheet PDF with product image Product image Flow diagram
Assembling & Care

Mounted according to the instructions. Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

Drawing Assembly instruction
Other info
Deep - 183 mm
Length - 225 mm
Width - 117 mm
Features
  • Contains less than 0.1% lead
  • Adjustable comfort flow (water-saving) är avaktiverat för fullt flöde, kan aktiveras vid behov
  • Adjustable max temperature for increased scald protection
  • Ceramic cartridge ensures non-drip operation and longevity
  • With vacuum valve and check valves in the inlets
  • Type-approved check valve in the shower connection
  • Backflow protection in accordance with SS-EN 1717 [HD]
  • Can be functionally adapted with elongated lever
