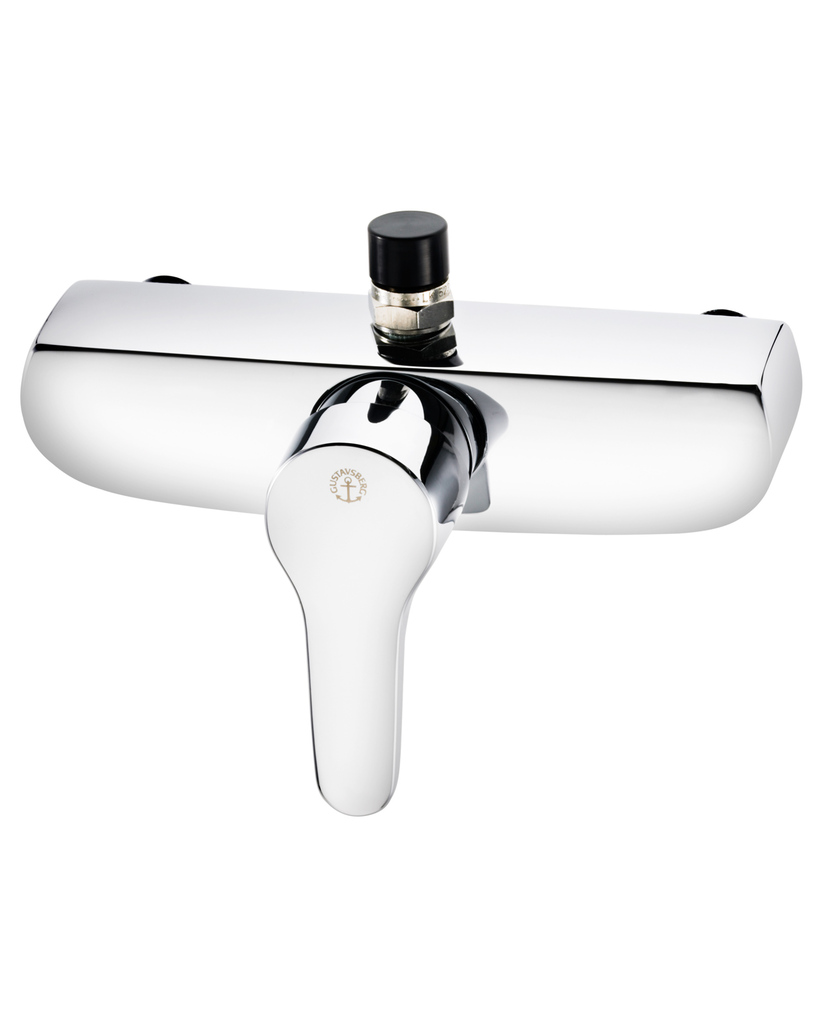

Shower mixer Nautic - single-lever

Shower mixer Nautic - single-lever

  • RSK-nr: |
  • ART-nr: GB41214274 |
  • EAN-nr: 7393792217903
Shower mixer with vacuum valve, 150 c-c
  • With vacuum valve and non-return valves in inlet
  • Adjustable comfort flow can be activated as needed
  • Backflow protection per SS-EN 1717 [HD]
ECO-TAP/ENERGY-SAVING ECO-TAP/WATER-SAVING
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • Complies with Safe Water installation requirements.
Specifications Product datasheet PDF with product image Product image
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

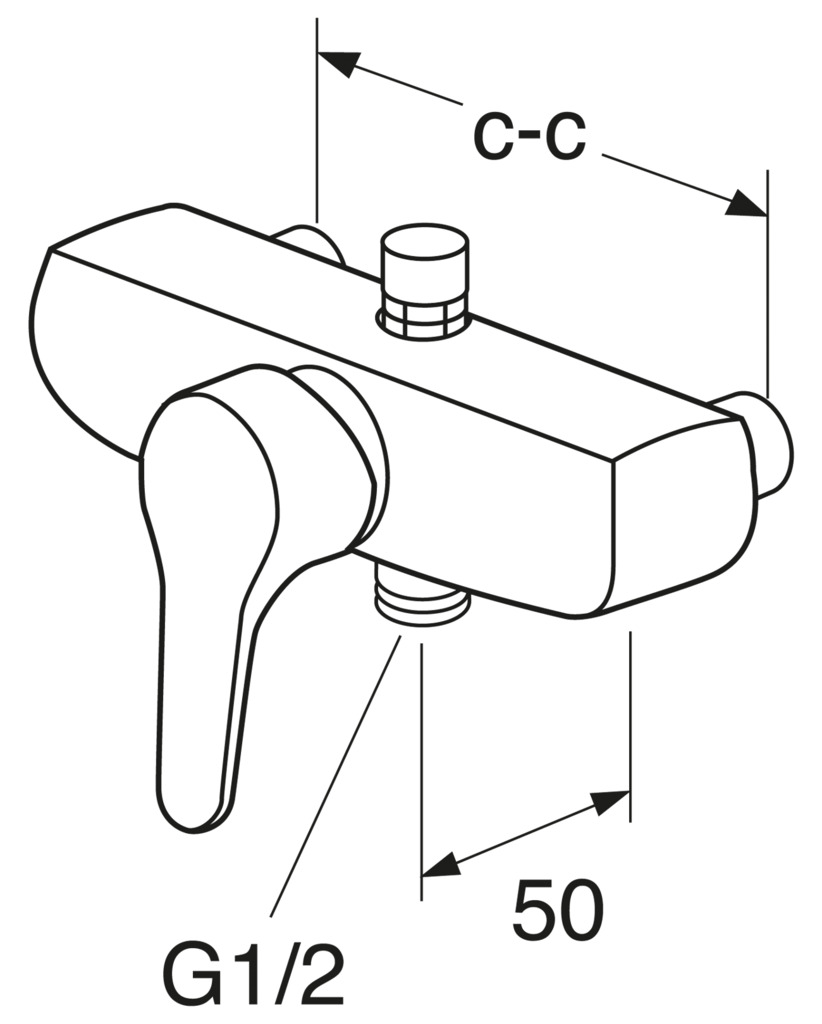

Drawing Assembly instruction Care instruction
Other info
Deep - 183 mm
Length - 225 mm
Width - 117 mm
Features
  • Timeless and harmonic designAll components made with food-safe materials
  • Vacuum valve and non-return valves in inlet
  • Adjustable comfort flow (water-saving) is deactivated for full flow, can be activated as needed
  • Adjustable max temperature for increased scald protection
  • Ceramic cartridge ensures non-drip operation and longevity
  • Type-approved non-return valves in the inlet
  • Backflow protection in accordance with SS-EN 1717 [HD]
