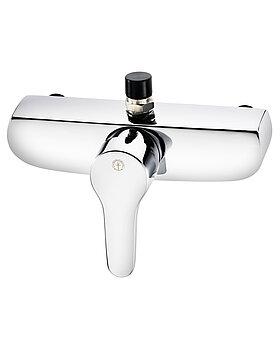

Shower mixer Nautic - single-lever

Shower mixer Nautic - single-lever

  • RSK-nr: |
  • ART-nr: GB41204114 |
  • EAN-nr: 7393792218818
With shower connection downwards, 160/40 c-c
  • Adjustable comfort flow can be activated as needed
  • Adjustable max temperature for increased scald protection
  • Can be adjusted for universal accessibility with extended lever
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • Complies with Safe Water installation requirements.
Specifications Product datasheet PDF with product image Product image
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

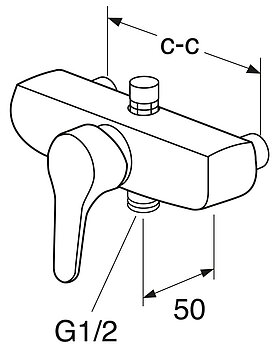

Drawing Assembly instruction Care instruction
Other info
Deep - 115 mm
Length - 230 mm
Width - 185 mm

Package consists of: Faucet, RSK 8126760 Item no. GB41204014. Faucet bracket 160/40 c-c, RSK 8128993, Item no. GB41102872

Features
  • Timeless and harmonic design
  • All components made with food-safe materials
  • Comes with 160/40 c-c faucet bracket for exposed plumbing
  • Adjustable comfort flow (water-saving) is deactivated for full flow, can be activated as needed
  • Adjustable max temperature f
