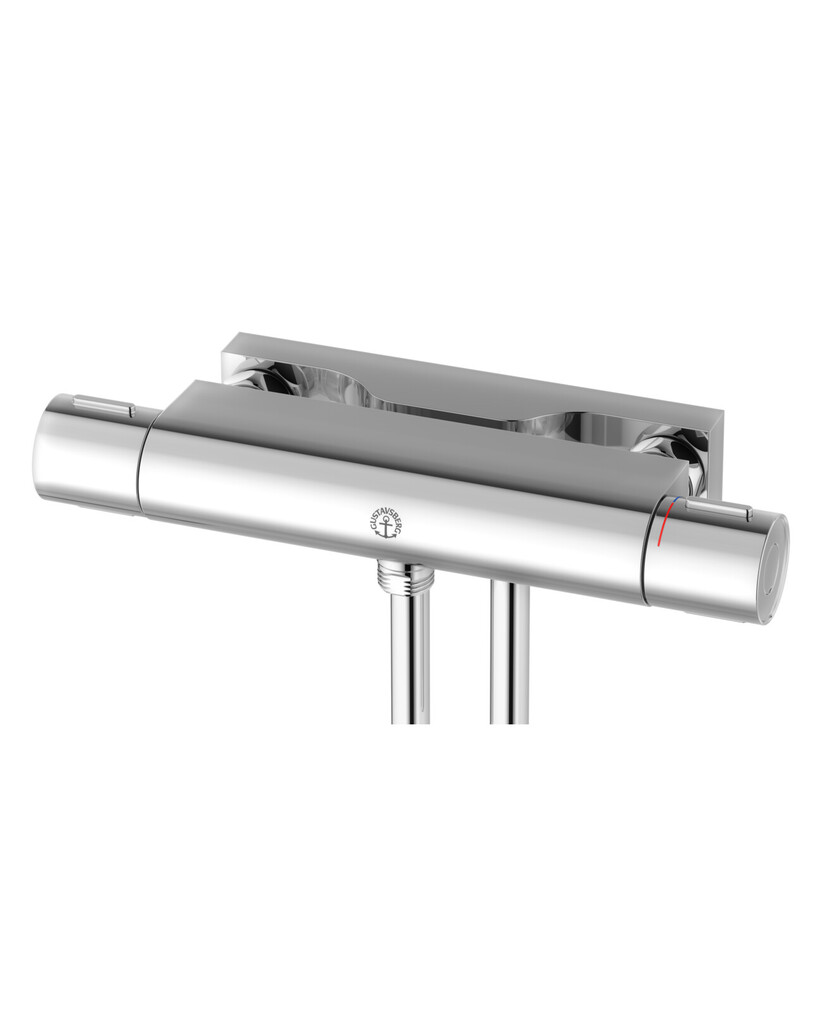

Shower mixer New Nautic - thermostat

Shower mixer New Nautic - thermostat

  • RSK-nr: |
  • ART-nr: GB41202414 |
  • EAN-nr: 7391530081243
Outlet downward, 160 c-c, including mixer bracket 160/40
  • Safe Touch reduces the heat on the front of the faucet
  • Maintains even water temperature upon pressure and temperature changes
  • Can be expanded with bathtub spout
Smart_inside Safe_touch Even_temperature
Product information Product information Find dealers Other options of same product Acessories and assembly products Other interesting products Find dealers

Product information

Standards & Approvals
  • Complies with Safe Water installation requirements.
Specifications Product datasheet PDF with product image Product image Flow diagram
Assembling & Care

Prior to installation the lines must be flushed up to the faucet. The faucet is connected with the cold water line on the right and the hot water line on the left. Water pressure: max 1000 kPa, min 50kPa. Hot water temperature: max 80°C, min 45°C. Please note that we are not liable for damage resulting from improper installation.

Drawing Assembly instruction Care instruction
Other info
Deep - 55 mm
Length - 115 mm
Width - 285 mm
Max. tap capacity (at 300 kPa): 0,425 l/s
Pressure loss with flow (0,33 l/s) 181 kPa
Features
  • Timeless and harmonic designAll components made with food-safe materials
  • Built-in automatic hot water block for scald protection
  • Block button on the temperature side at comfort temperature 38°C
  • Adjustable max temperature for increased scald protection
  • Safe Touch, minimises
